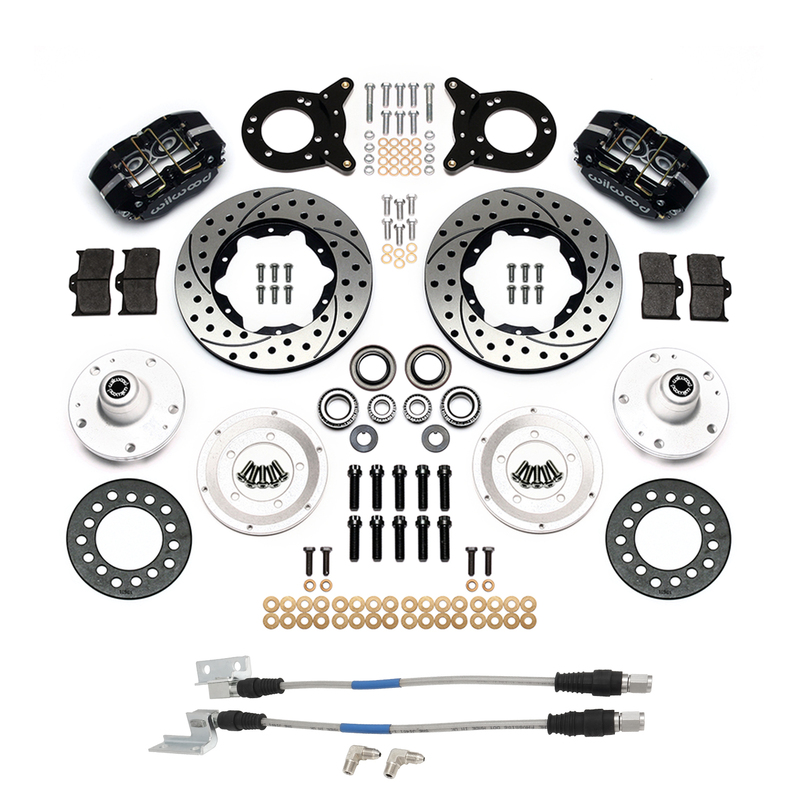

Big Brake 12'' Front Brake Kit Dynapro Dust-Boot , Ford Falcon XW-XY with Stainless Brake lines

DP-DB Big Brake Front Hub Kits provide the added advantage of larger diameter brake rotors for traditional non-ABS spindles on American muscle cars and vintage rods. Dynapro Dustboot calipers, 12.19” diameter rotors, and high performance Wilwood brake pads generate big brake stopping power. These kits were developed for applications or locations that require or prefer a dust-sealed piston. Dust-boot sealed aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. A full range of options for caliper finish and rotor design provide custom builders with the ability to personalize the style and performance requirements of the mildest to the wildest machines.

Kit Summary
OE Hub Offset: +.09
(Increase / Decrease Track Width)
Spindle Type: Factory Disc Spindle Factory Drum Spindle
Mount Type: Lug
Caliper Type: 4 - Black Powder Coat
Rotor Diameter: 12.19
Min Wheel Diameter Req'd*: 15


Fitment:

  • Ford Falcon XR-XT-XW-XY
  • Ford Fairlane ZA-ZB-ZC-ZD
  • Stub Axle Splash shield bolt holes need to be tapped from 5/16 to 3/8 when fitting Wilwood Brakes
  • Comes with-BH2000-SS-KIT Proflow Wilwood Stainless Brake Hose Kit For XW-XF
  • For XR-XT Use PFE-BH2020-SS-KIT Proflow Wilwood Stainless Brake Hose Kit
  • Hubs suit early stub axles which have id bearing dimensions of 1.250"&.750"
  • Note please measure you stub axles as many cars have been retro fitted with later XA type stub axles

Proflow Stainless Brake Line KIt

These performance brake hose kits contain all the same features as our braided brake lines kits but are tailored to suit your early model Ford fitted with aftermarket Wilwood brake calipers.

Quality Stainless Steel Hardware Used Throughout  (apart from mounting block)
