The GenV HyperGate45 Lite external wastegate is a cost-effective, high-performing 45mm external wastegate with a compact actuator in engine bays with limited space. The GenV provides extensive user configuration, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type Vband clamps, optional liquid-cooling provision, 1/8³ NPT reference ports and are provided with the full range of available springs.

Available In
HyperGate45 Lite (Black) 7PSI: TS-0553-1602
HyperGate45 Lite (Black) 14PSI: TS-0553-1612
HyperGate45 Lite (Sleeper) 14PSI: TS-0553-1615

Features
Low Profile (Reduced height and Diameter) Actuator Housing
Class Leading Thermal Performance
Class Leading CFD Driven and Bench Validated Flow Performance
Class Leading Fatigue Resistance
Optional Liquid Cooling
Optional Position Sensor Available Separately
Rotatable / Clockable Actuator Housing
45mm V-Band Fitment
Nitronic 60 Valve Guide and High Temp 347 SS Body
17-7 PH Stainless Steel Springs
Liquid Actuator Cooling Option
Strap Type V-band clamps

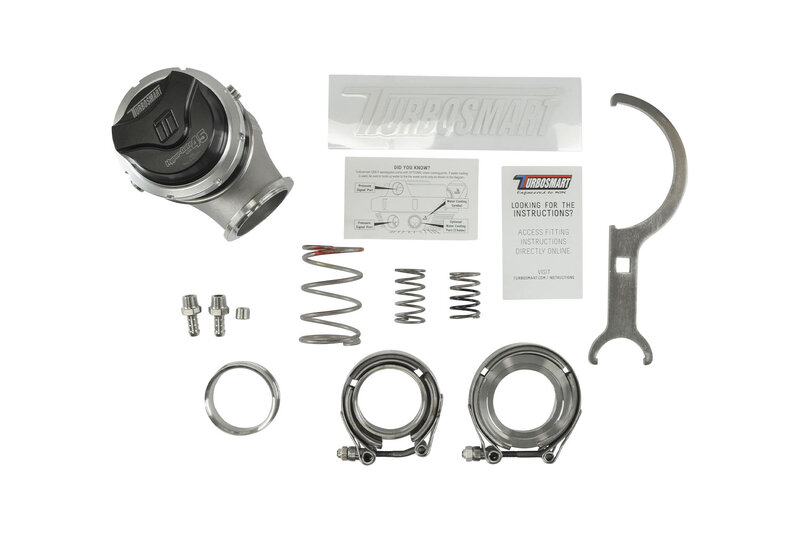

TURBOSMART GenV Hypergate45-Lite External Wastegate, 7PSI, Black, Kit Diagram Image
