Smaller, Lighter & Faster”The Turbosmart TS-1 turbocharger series has been developed to leverage modern materials, design, and manufacturing techniques to create a Turbocharger range that meets the demands of motorsport and performance enthusiasts alike.

The TS-1 series are oil-cooled turbochargers with lightweight Investment cast turbine housings, a proprietary bearing and a main shaft combination which will provide the transient response you never knew possible with the type of performance, quality, reliability and support you've come to know Turbosmart for.

The ultra-low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high levels of performance at lower shaft speeds. It is mated with a unique turbine wheel to ensure power at high loads and flow is maintained.

The TS-1 turbocharger series has taken an engine end-to-end approach aiming to achieve power through reduced back pressure and high performance turbines - While being smaller, lighter and faster in response than other solutions on the market.

Available In TS-1 oil-cooled turbochargers TS-2 oil and water-cooled turbochargers V-Band, various T3 Flange and T4 Flange options Reverse rotation (Selected Sizes) Various AR's options Internal and external wastegate options available

Features Unparalleled transient response Aggressive aerodynamics with 7+7 splitter wheels Lightweight 310s stainless steel investment cast turbine housings Lightweight, Aluminium compressor covers CFD-driven designed housings for optimal AR's and flow T14 Inconel turbine wheel for extreme EGT?s VSR speed balanced Proprietary dual ceramic bearing system Integrated Iron backplate on center housing

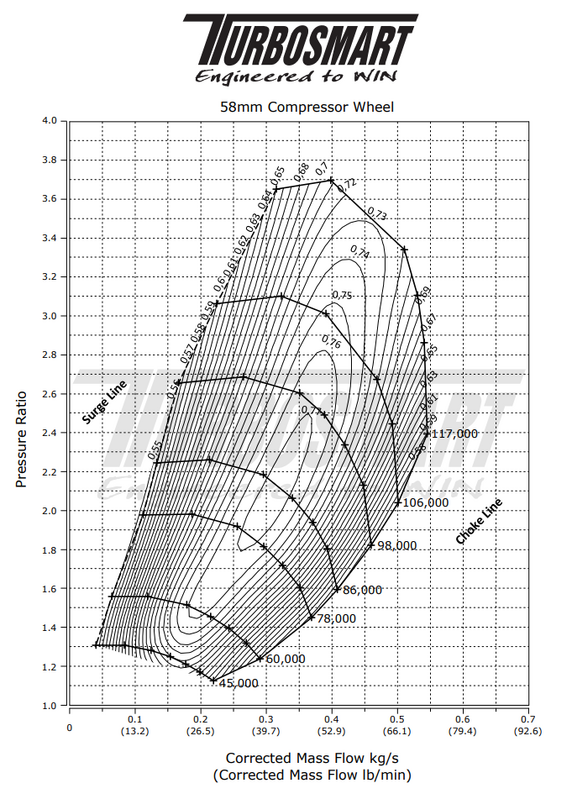

Specifications Compressor Inlet: 4" / 101.6mm Compressor Inducer: 58mm Turbine Inlet: V-Band (2.25") Turbine Exducer: 62mm Turbine AR: 0.82 Turbine Outlet: V-Band (3.00") Weight: 6.06kg / 13.3lbs
Horsepower Rating: 600-750HP
