The Turbosmart FPR6 Series provides market-leading fuel control and response via actual 1:1 ratio and superior flow and bypass capacity for vehicles with -6 / 6AN fuel systems. Utilising our Stainless Steel Valve Seat & Milspec Diaphragm, the FPR6 Series is suitable for all Fuel types, including Race Fuel and aggressive leaded fuels. Our FPR6 Range includes a 6AN inlet, outlet and returns port and is Available in Standard (35psi to 80psi) and LP (3psi to 20psi) for Low Pressure and Carburettor Systems to suit 1200HP systems.

Features
Stainless Steel Valve Seat
Suitable for all fuel types
1:1 Class Leading Ratio and Response
Adjustable Pressure
1/8 NPT Gauge / Pressure Sensor Port
Unique Locking Collar Design
Milspec Diaphragm
Detailed Specific Fuel Flow Data and Spec

Available in:
FPR6 (Blue) TS-0404-1021
FPR6 (Black) TS-0404-1022
FPR6 (Purple) TS-0404-1023
FPR6 (Red) TS-0404-1024
FPR6 (LP) TS-0404-1022

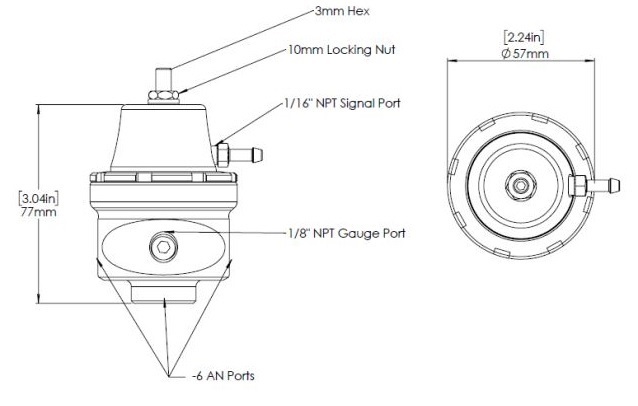

TURBOSMART FPR6 Fuel Pressure Regulator, For -6AN, Purple, Each Diagram Image
