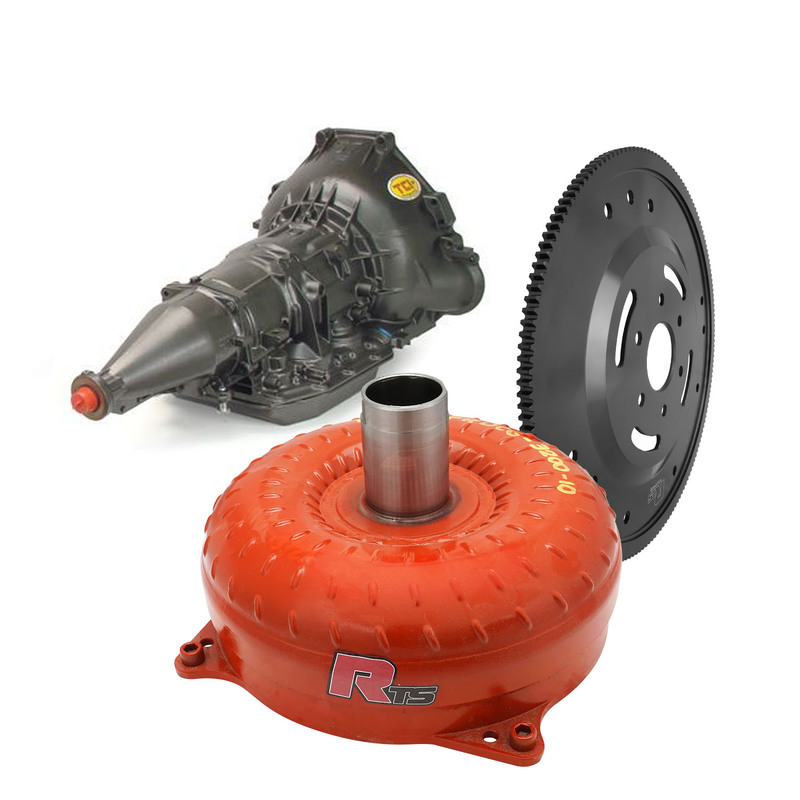

Transmission & Converter Kit C6, BB Ford

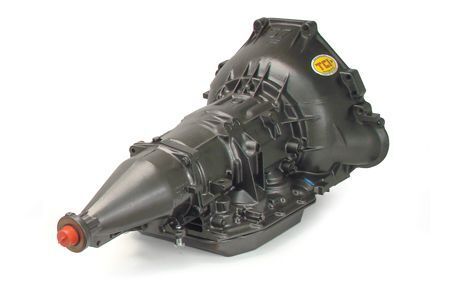

The Super StreetFighter™ Transmissions bridge the gap between the StreetFighter® series and full competition transmissions. This version (Ford Big Block C6 Part# 411205) is intended for normally aspirated vehicles powered by engines producing up to 875 horsepower. Featuring some of the same benefits as our StreetFighter® Transmissions but with certain upgrades, the Super StreetFighter™ offers both manual and automatic shift options to give you the power and shifts you want for the strip or easy driving for the street.

Features & Benefits:

• Extreme performance clutches and nitrided steel plates for enhanced performance
• Extra-wide powerbands, where available, provide greater torque capacity, and more positive shifts & band apply
• Larger diameter servos increase band pressure which means more force on flex bands
• New sprags/roller clutches (upgraded in particular models – call for applications), enhanced hard parts and improved lubrication system
• Includes a chrome-plated transmission pan with embossed TCI® logo
• Increased thrust capacity and higher line pressure for extra firm shifts & greater torque capacity with less slippage

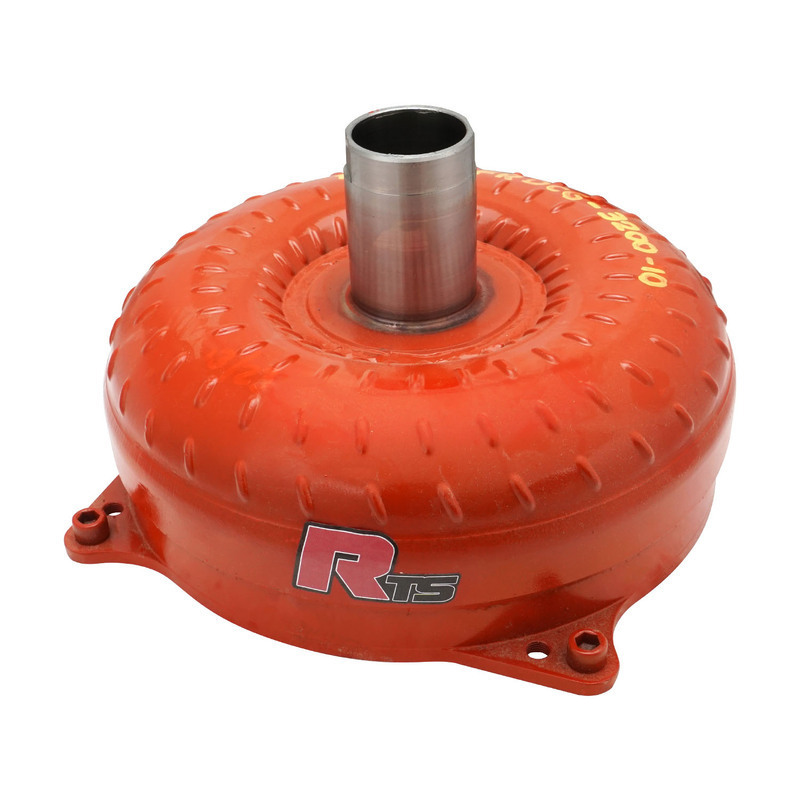

RTS Serious Stall Converters

RTS high stall torque converters are designed for serious-minded performance enthusiasts and offer additional strength and durability. The higher stall speeds of these converters will launch the car in a higher RPM range where more torque is readily available, resulting in quicker acceleration. They’re available for a variety of transmission makes and models. They are also available in a custom build model to suit any performance high horsepower application.

Features

• Built using state-of-the-art tools & equipment
• Billet Front Cover
• Includes NEW components
• Welded internal hub
• Welded fins on turbine and impeller
• Welded pilot
• Chromoly Flanged hub, acts as a internal Anti Balloon plate
• All critical surfaces are resurfaced by skilled craftsman
• Pressure tested to ensure a full and complete weld
• Electronically balanced for precision accuracy
• Made in the USA!

Torque Converter Specs

Stall: 2800-3200
Series: Bandit Billet Plus rate at 950hp
Transmission Type: Ford C6
Size: 10"
Turbine: 31 spline
Bolt Circle: Dual 10.50'' / 11.40"
Pilot Size: 1.375
Mount: 4 x 3/8unc studs

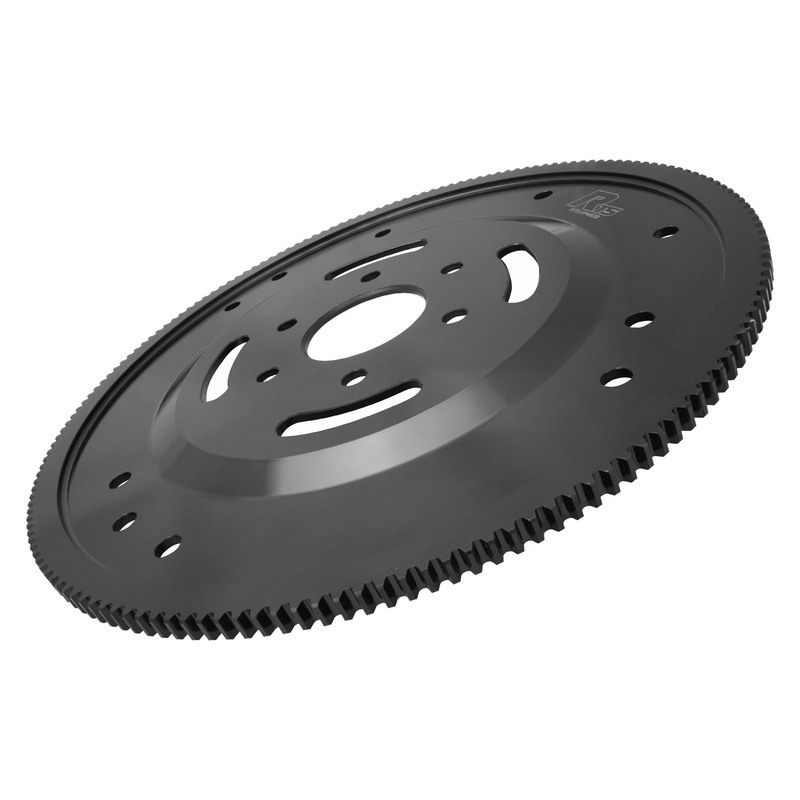

RTS’ full billet steel flexplates are for the serious racers. They are machined out of cold-drawn AISI 1045 carbon steel and come with a stealth black oxidised plating for added durability. Their strength to weight ratio is incredible compared to their 2-piece counterparts which enables them to handle extreme engine builds in excess of 1000 HP. They offer heat-treated, precision machined gear teeth for added strength and feature low runout values to produce an incredibly durable flexplate. They all come with a SFI 29.2 explosion-proof rating.

• Concentric machined to .005".
• One piece design - 100% machined.
• Proprietary heat treating process.
• Chamfered gear tooth provides better engagement.
