Design

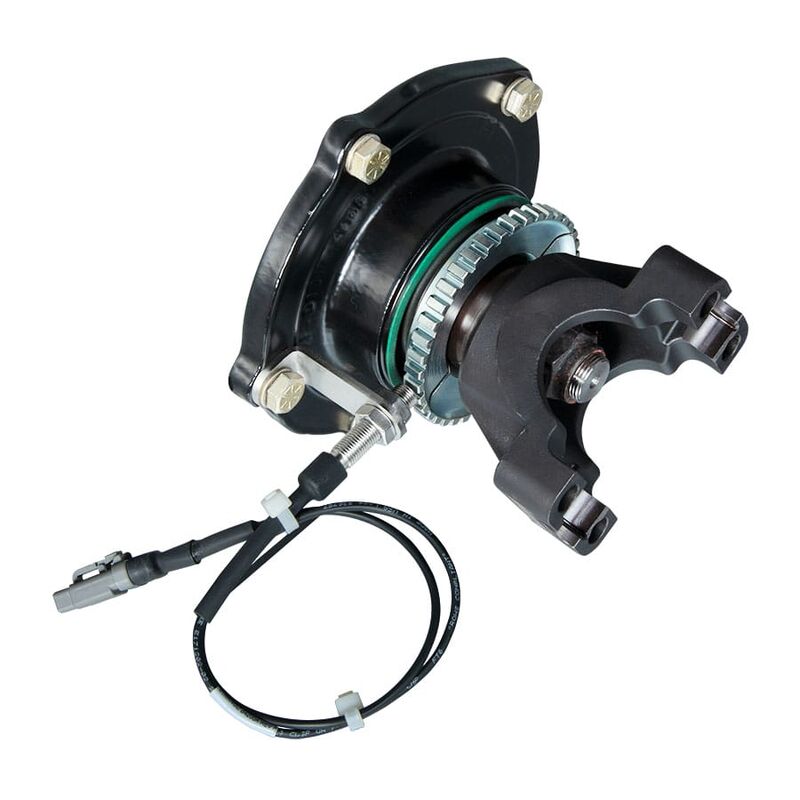

Provides driveshaft speed information to data acquisition systems
Offers high resolution due to 40 tooth trigger wheel
Produces smooth and easy to read graphs when comparing to other data

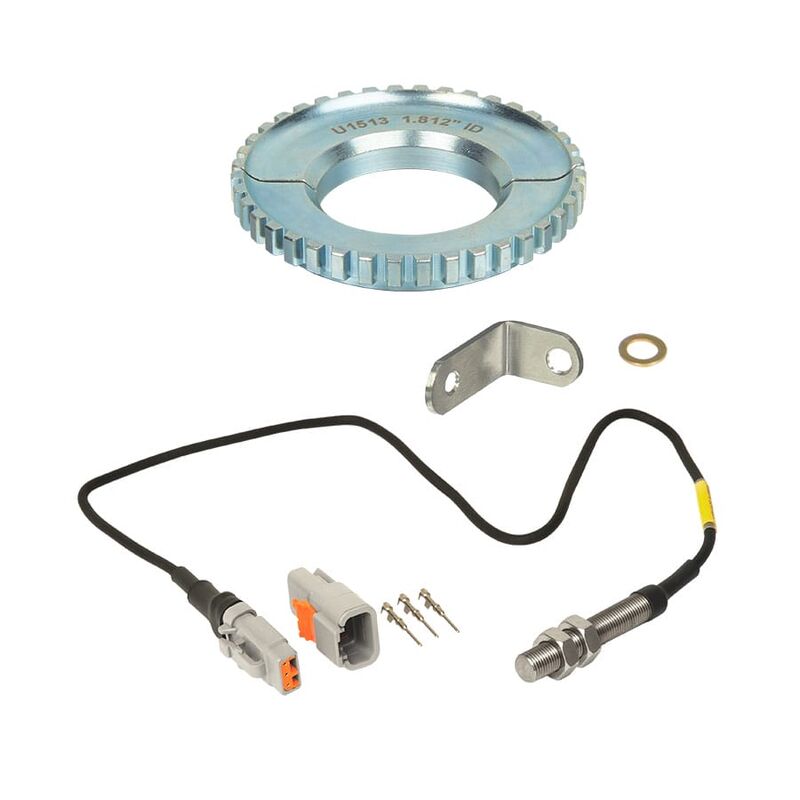

Hall Effect Sensor Assembly
• High precision zero speed design
• Industry standard 3/8″-24 fully threaded body
• Stainless steel housing – more durable than aluminum bodies
• Proven reliability in top fuel cars
• Made in the USA
• Requires 4.5-26 VDC supply voltage
• 0-15kHZ operating frequency
• Terminated with Deutsch DTM plug
• Includes mating Deutsch DTM receptacle with pins
• One jam nut provided with sensor

Trigger Wheel
• High resolution 40 tooth trigger wheel
• Plated for corrosion resistance
• Split design with SHCS bolts

Sensor Mounting Bracket
• Stainless steel resists corrosion
• Attaches to existing pinion support bolt
• Supplied with support bolt spacer washer
• Includes additional sensor jam nut
