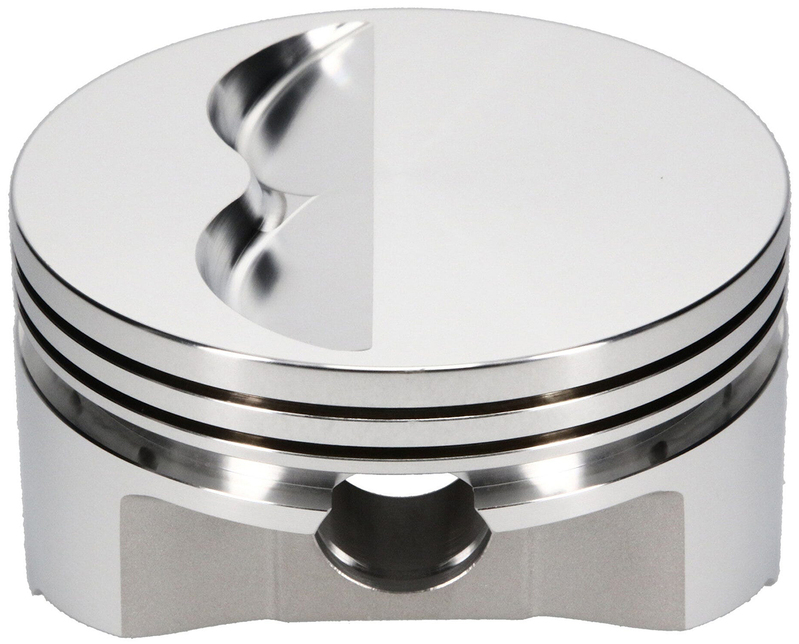

SRP, Chevrolet, Small Block Chevrolet, 4.060 in. Bore, 1.260 CD, Flat Top, 8 Cyl. Piston Kit

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.

• Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
• Dedicated forging helps optimize strength and weight throughout the piston design
• Perfect for street/strip applications
• Forced pin oiling for improved pin lubrication
• Made

  Piston Series	SRP
  Cylinder Head	CHEVROLET 23 DEG 20/30
  Bore Diameter	4.060 IN
  Piston Head Type	Flat
  Compression Height	1.260 IN
  Piston Volume	-5.00 CC
  Piston Material	4032
  Forging Type	FSR
  Piston Average Weight	449 GR
  Ring Set Included	No
  Top Compression Ring Thickness	0.0640 IN
  Second Compression Ring Thickness	0.0640 IN
  Oil Ring Thickness	0.188 IN
  Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
  Wrist Pin Length	2.750 IN
  Wrist Pin Wall Thickness	0.150 IN

  100% in the USA
