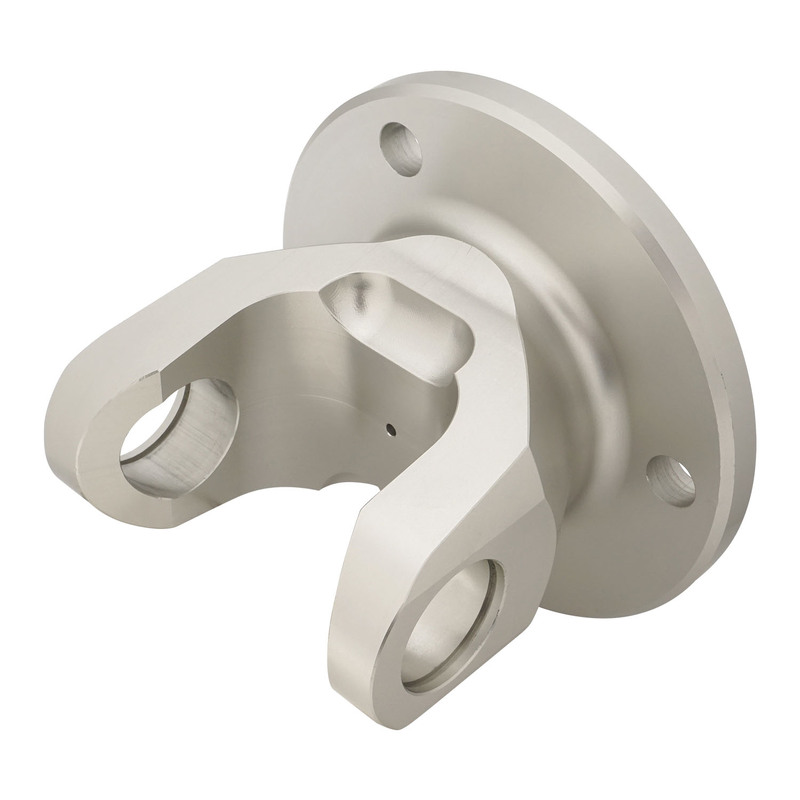

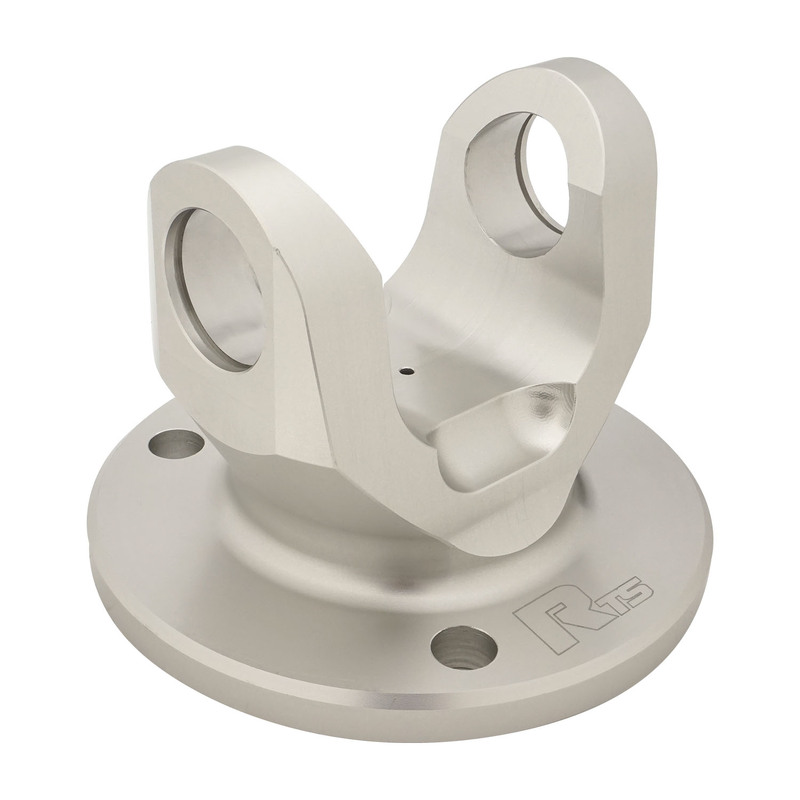

Aluminum Adapter Flange Yoke - Holden Commodore VE-VF

RTS' 3-bolt adaptor flange yoke allows you to convert a factory two-piece driveshaft to a one-piece 1350 u-joint style design. This means you can use a custom built driveshaft on your late model commodore to increase strength and durabilitity of your driveline while also reducing future maintenance costs.

This adaptor fits all Auto 6L80, 6L90, 8L90, 10L80 (with the spacer included) transmissions and even TR6060 and TR3160 manual units.

  • Increases strength and durability of your driveline by utilising 1350 style u-joints
  • Great for drivetrain swaps and retrofits in custom applications such as street rods and hot rods
  • Precision machined from solid 6061-T6 billet aluminum for superior balance and strength
  • Spacer included for 8L90 & 10L80 transmissions

  • U-Joint Series: 1350 (1.188" cap diameter)
  • Bolt Hole Diameter: 0.500" / M12
  • Flange Face to Centerline: 76mm (3.0")
  • Flange Outer Diameter = 138.5mm
  • Pilot Diameter: 16mm (0.63")
  • Bolt Circle Diiameter: 110mm

Note: this part may fit more models than included above, please measure the PCD of your output flange to determine if this fits your application.

More From This Category

RTS Bandit Billet Plus & Billet Flexplate Kit, Triple Disc, Turbo, 245mm High Stall Torque Converter, Billet Piston,2800-3200 LS 6L80E 6L90E, 1200HP-u

RTS Bandit Billet Plus & Billet Flexplate Kit, Triple Disc, Turbo, 245mm High Stall Torque Converter, Billet Piston,2800-3200 LS 6L80E 6L90E, 1200HP-u

$2,999.00

View

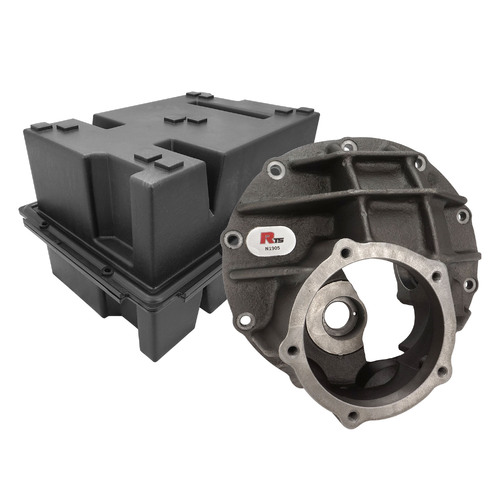

RTS Ford 9 Inch 31spl, Eaton Truetrac, Nodular Case ,Complete Centre Section, 3.89:1 Gear Set, Assembly
