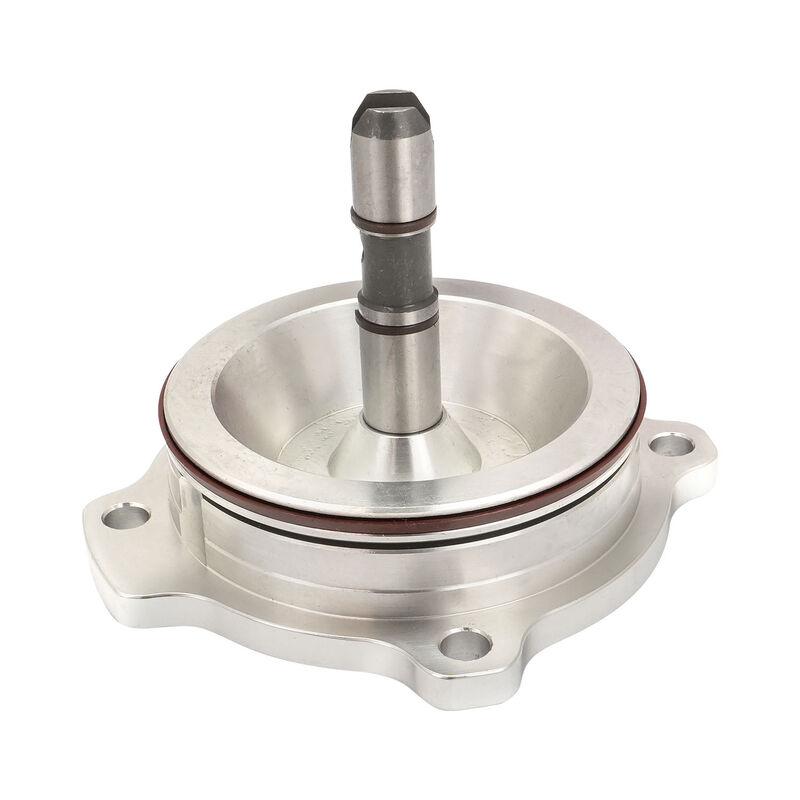

RTS-SERV2C4 "H" ratio servo kit is not quite as agressive as our C code version but still offers greater holding power, giving cleaner, firmer 1-2 and 2-3 shifts. Machined from 6061 aluminum billet, this servo features lip seals on the piston for superior sealing over a wide range of fluid pressure. This is the 2nd largest in the C4 servo family and works in all performance C4 C5 C9 C10 applications. The servo pin incorporates two PTFE sealing rings to insure the hydraulic integrity of the pin in worn cases. Cleaning up a 2-3 flare was never easier than installing this servo. Also available is the more agressive "C" code version RTS-SERV1C4 with slightly more band apply pressure

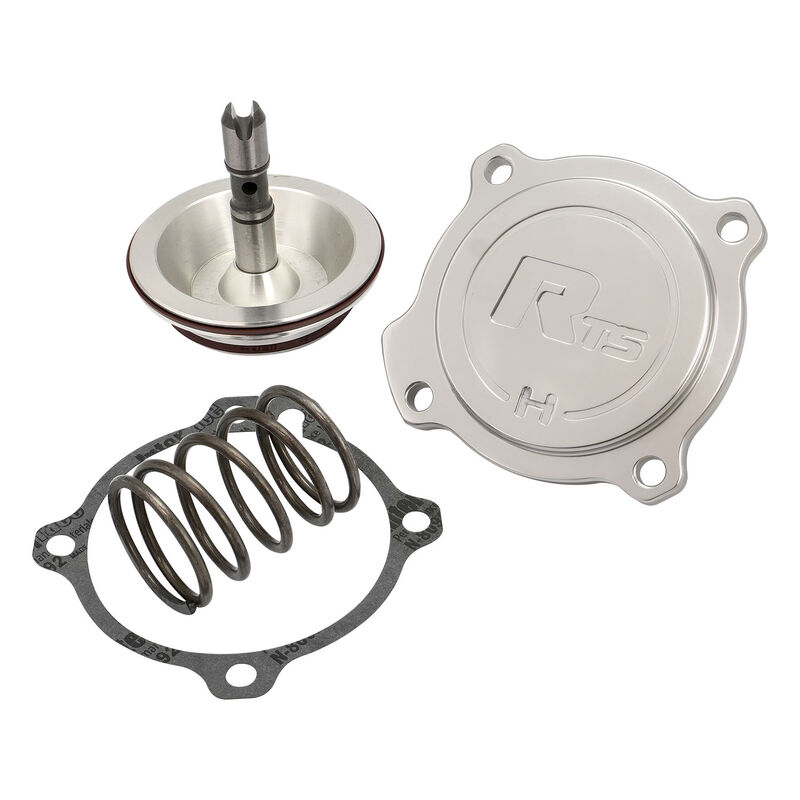

  • Anodised Billet Cover
  • Billet Piston
  • Shaft with machined seal grooves
  • Spring
  • Mounting bolts & washers x 4
  • Lip Seal Small
  • Lip Seal Large
  • PTFE Shaft Seals x 2
  • Rubber Coated Metal Servo Cover Gasket
