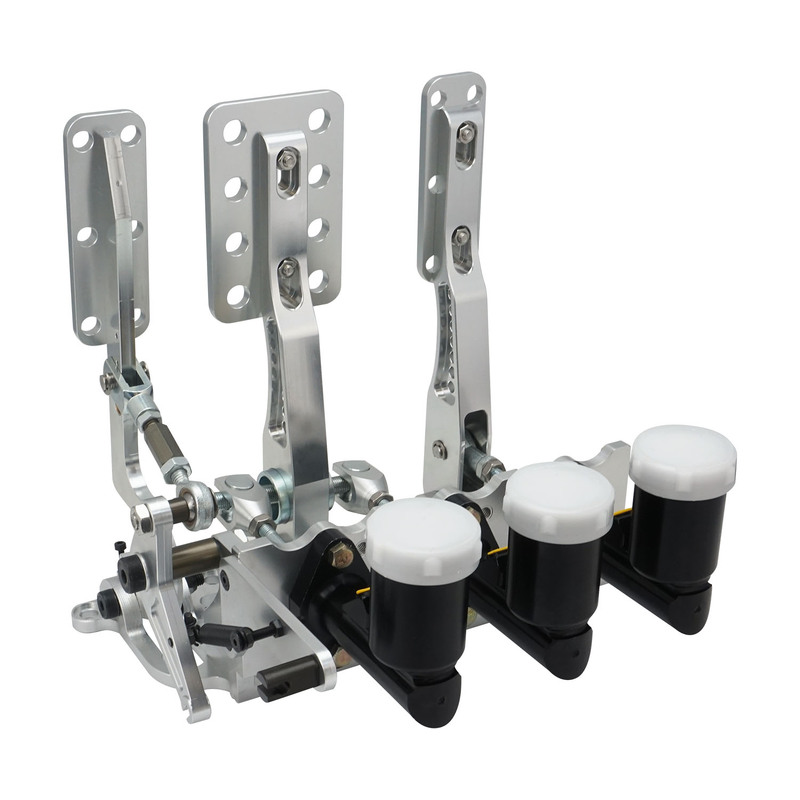

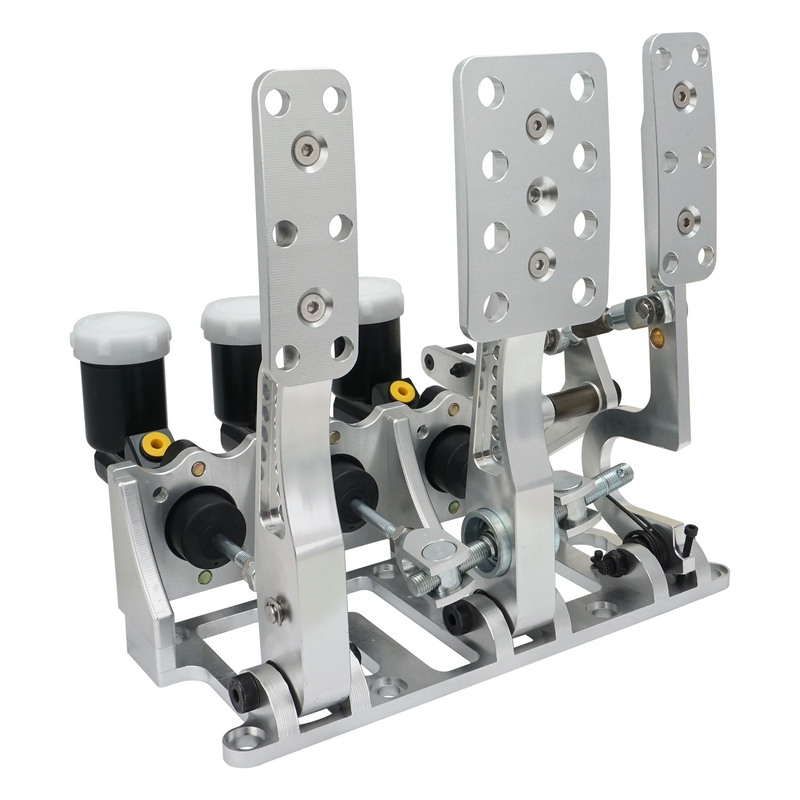

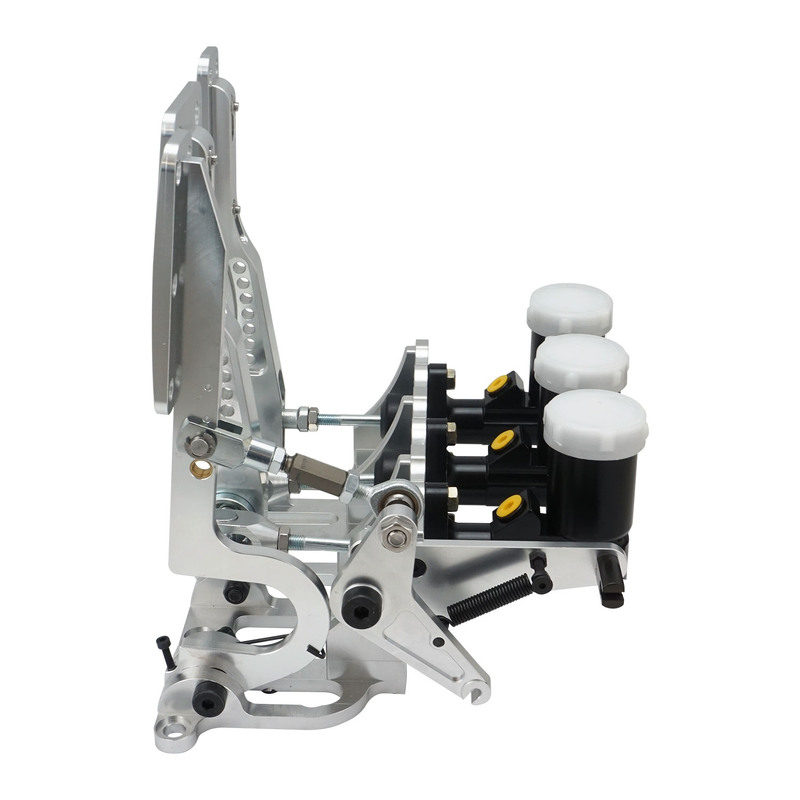

RTS Lightweight Pedal Box Assembly is of the highest quality, adjustable and most realistic feeling pedals. This Pedals System is designed for high-end professional motorsport Use. Avalable in Raw or Black Anodized .



  • Pedals: Light Weight Aluminium on Bearings
  • lightweight, flexible and ergonomically efficient.
  • Master cylinder: 0.7inch/0.625inch/0.75inch
  • Approx Dimensions: Width 260mm, Pedal Height 280mm, Box Depth 140mm, Depth Including Master Cylinders 250mm
  • Bias Braking
  • Floor Mounted
  • Mounting Location: Floor Mounted Bulk Head Fit
  • Light weight accelerator linkage included
  • Adjustable spring loaded accelerator pedal. Allowing the pedal to be positioned exactly to your requirements.
  • Balance bar giving you total control over the front to rear braking.
  • Adjustable clutch pedal stop, prevents clutch over-stroking

Package:

  • 1 x Hydraulic Clutch Pedal Box
  • 1 x Bias Bar
  • 1 x Rose joint
  • 1 x Master Cylinder Nut & Bolt Kit
  • 3 x 0.625inch/0.7inch/0.75inch Master Cylinders
