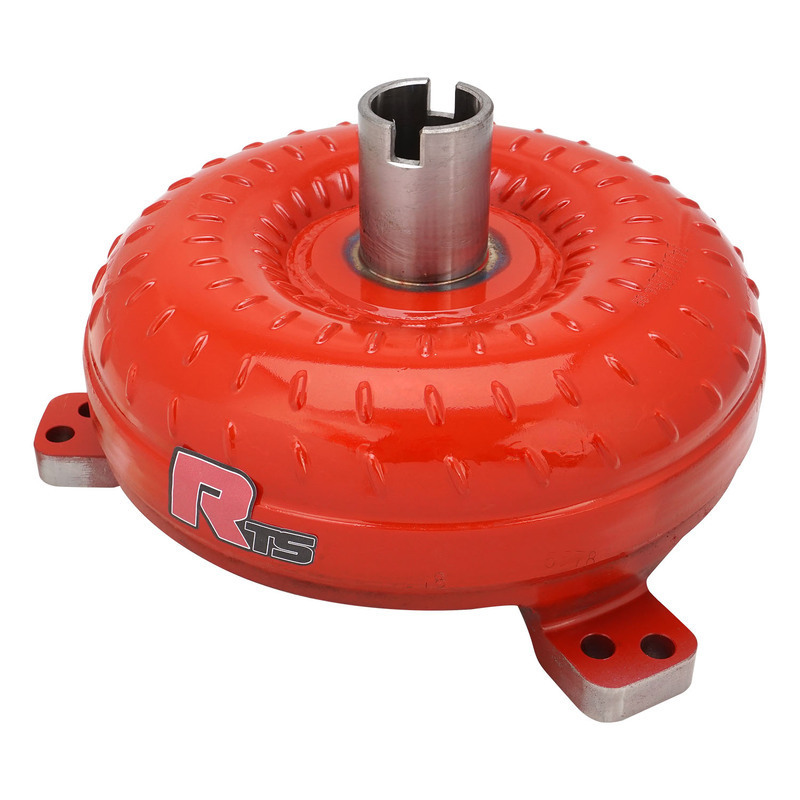

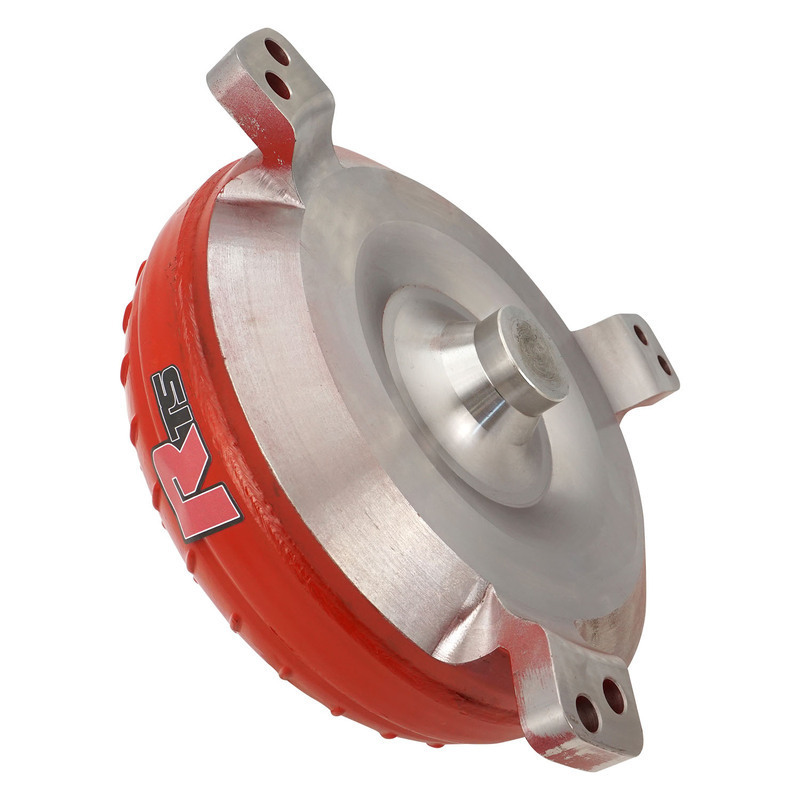

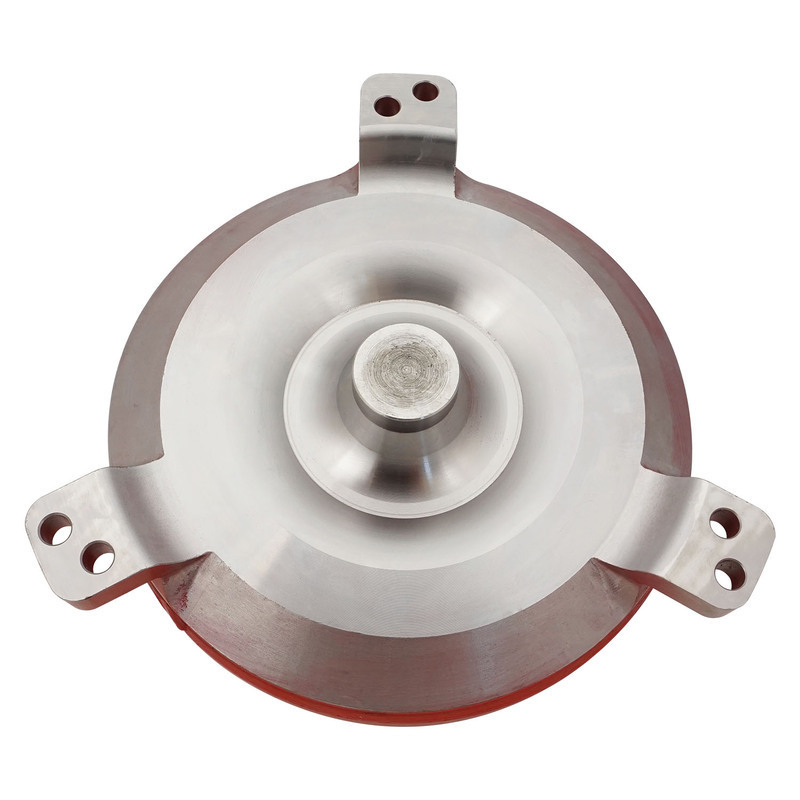

RTS Serious Stall Converters

RTS high stall torque converters are designed for serious-minded performance enthusiasts and offer additional strength and durability. The higher stall speeds of these converters will launch the car in a higher RPM range where more torque is readily available, resulting in quicker acceleration. They’re available for a variety of transmission makes and models. They are also available in a custom build model to suit any performance high horsepower application.

Click here for more details on our custom built torque converters.



Features

  • Built using state-of-the-art tools & equipment
  • Billet Front Cover
  • Includes NEW components
  • Welded internal hub
  • Welded fins on turbine and impeller
  • Welded pilot
  • Chromoly Flanged hub, acts as a internal Anti Balloon plate
  • All critical surfaces are resurfaced by skilled craftsman
  • Pressure tested to ensure a full and complete weld
  • Electronically balanced for precision accuracy
  • Made in the USA!

Includes:



  • Fully machined cover with bushing installed
  • Impeller hub and turbine hub made from 4130 Chromoly steel
  • Oil flow grooves and holes increase fluid flow to keep converters running cooler
  • Turbine hub has a larger flanged diameter to increase the strength and rigidity of the turbine assembly



Torque Converter Specs

Stall: 3200-3600
Series: Bandit Billet Plus rated up to 850hp
Transmission Type: 700R4, 4L60 & 4L60E ( Non LS )
Size: 10"
Turbine: 30 spline
Bolt Circle: 10.75" & 11''
Pilot Size: 1.703
Hub Style: Slotted
Mount: Mounting Ring M10 x1.5
