A Ross Performance Parts wet sump external oil pump kit providing a comprehensive solution  to the inherent oil pump failures in the Nissan RB30 (Australia) engine with the integration of a high-performance harmonic damper and trigger kit.

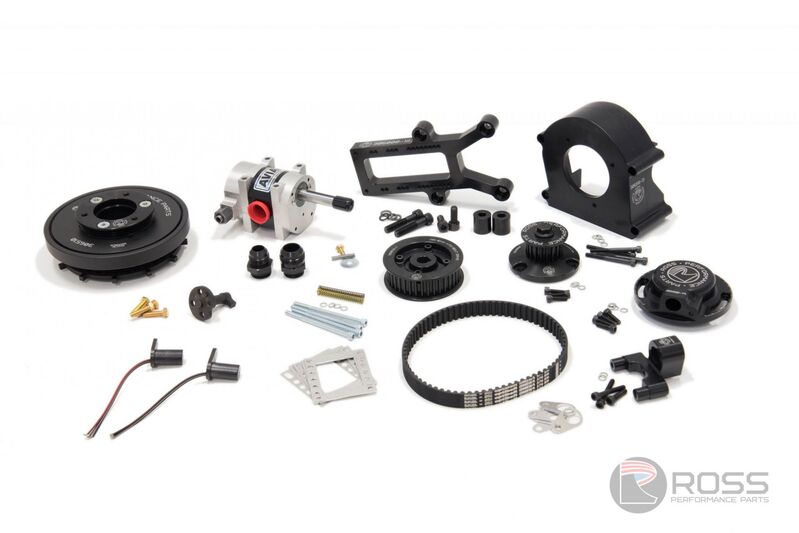

Nissan RB30 Australia Single Cam External Oil pump system with Crank & Cam Trigger setup

Nissan RB30 (Australia) Harmonic Damper with 12 or 36-2 Tooth Integrated Trigger Disc

Integrated 12T & 36T Crank Triggers available off the shelf, please contact us for custom profiles.
Trigger profiles cut using micron accurate EDM wire cutting technology to ensure a clean signal for ignition timing
Bonded using our proprietary Ross Tuffbond process, incorporating anti-vibration, anti-tear natural rubber
Laser etched 360° timing marks

Nissan RB Crank Angle Sensor Mount (306000-75) OR Nissan RB Crank Angle Sensor Mount to Suit Girdle (306000-75-SP1) – SP1 mounting spigots are 10mm shorter than standard
Nissan RB Cam Angle Sensor Mount (306000-74)
Nissan RB Single Cam Trigger (306010-73)
Nissan RB Billet Cam Gear Cover Plate (306010-13)
GT101 Hall Effect Sensors (992GT101) OR Cherry Hall Effect Sensors (992CHERRY)
Nissan RB Oil Pump Left Hand Mounting Bracket (306000-18)
Nissan RB Oil Return Adaptor (Remote Oil Filter Set-up) (306000-25-1)
Universal Dry Sump Drive Adaptor with 19T HTD Pulley (991000-19HTD)
38T HTD Oil Pump Pulley with Pulley Shields (991038)
8mm HTD Oil Pump Drive Belt – 576mm x 20mm (993576-8M-20)
Aviaid Single Stage External oil Pump – LH Mounting with 1 x 1.5″ Pressure (9950110-3800)
Aluminium Weld In Oil Pick Up (306002-15-01) (Optional)

Note: The External Oil Pump Mounts in the OEM air conditioner location. A/C Must be removed to install this setup.
This Kit is designed to suit the Nissan RB30ET (Australia) (Single Cam)
