Description

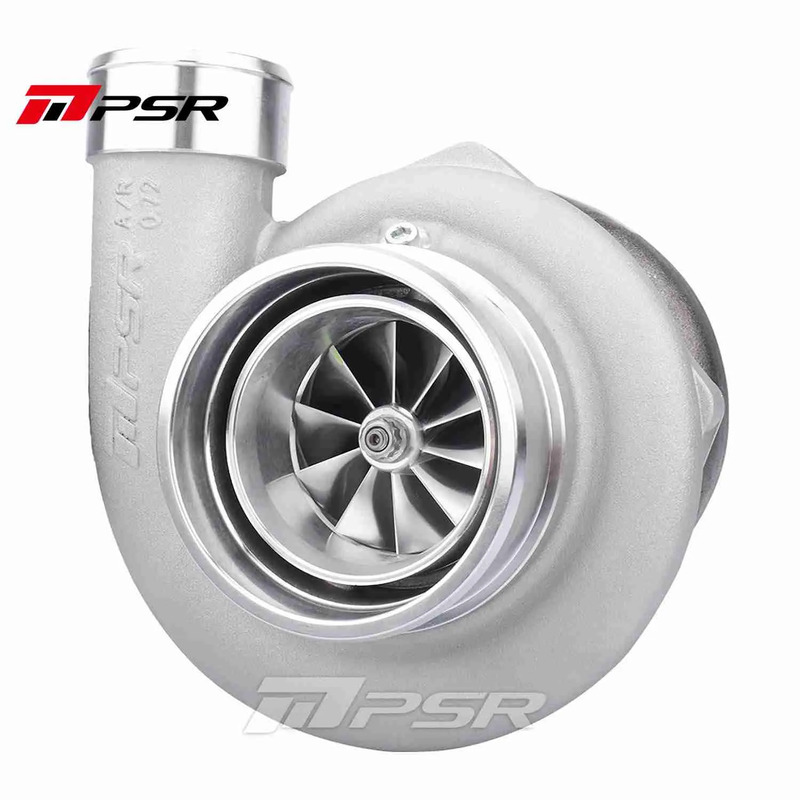

  • Compressor Wheel: 67*84mm
  • Larger Turbine Wheel: 74*66mm
  • Compressor Inlet: 4.0” Hose
  • Compressor Outlet: 2.5” Hose
  • Turbine Inlet: T3, T4, or 2.5″ V-Band
  • Turbine Outlet: 3″ V-Band (3.55″OD)
  • Oil Feed: -4 AN connect to the Oil Restrictor
  • Oil Drain: Std T3 Flange
  • Water In/Outlet: M14*1.5
  • We highly recommended running water cooling for better durability

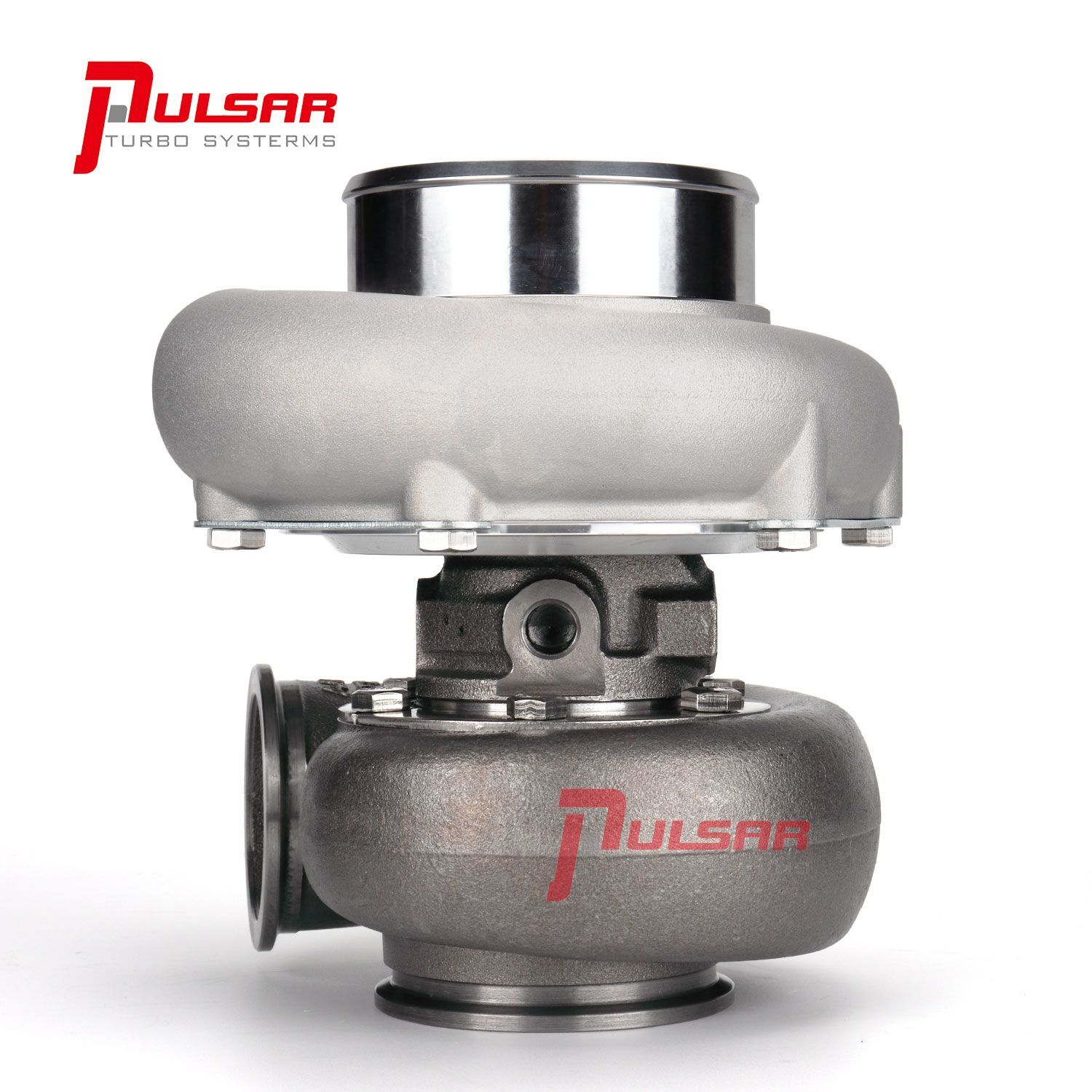

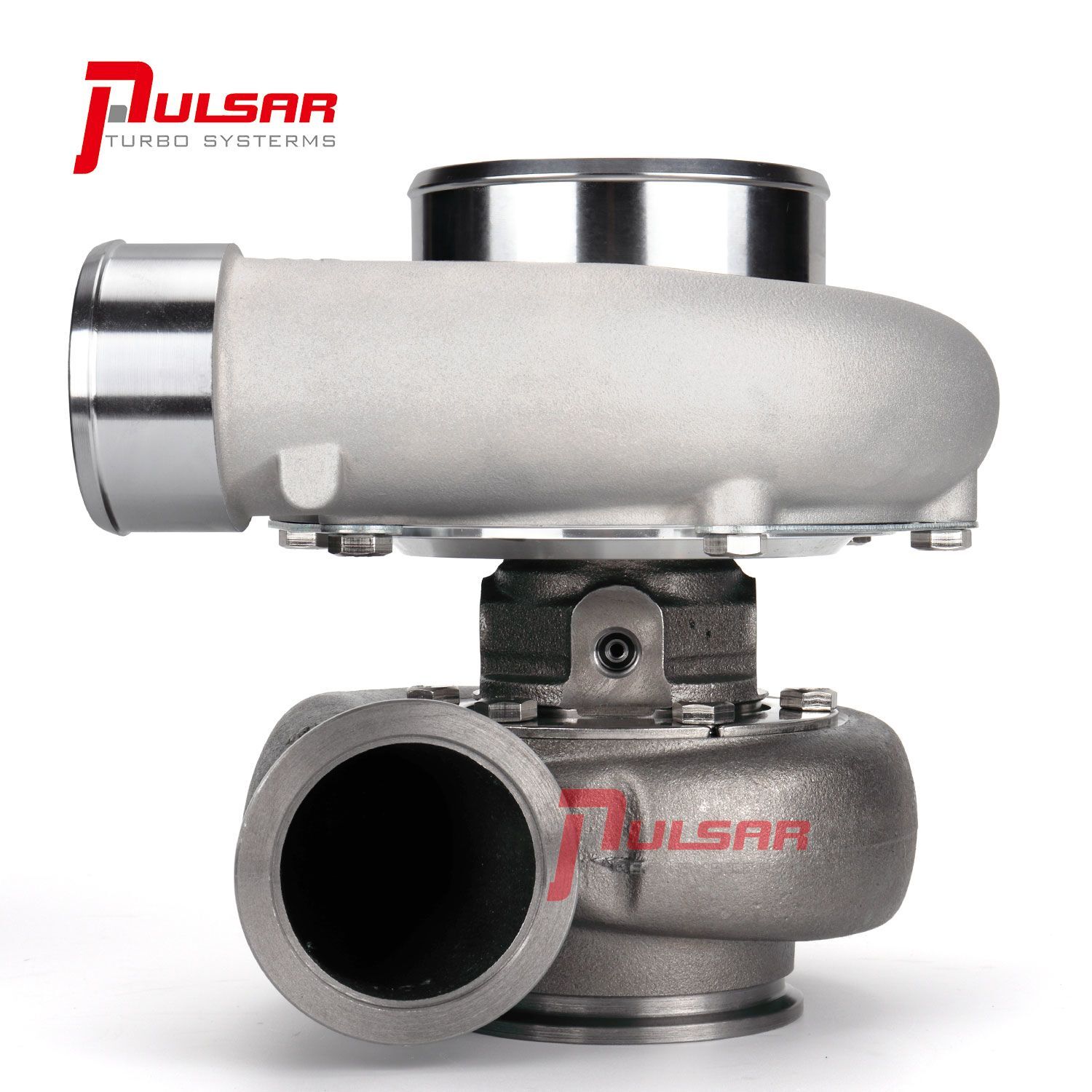

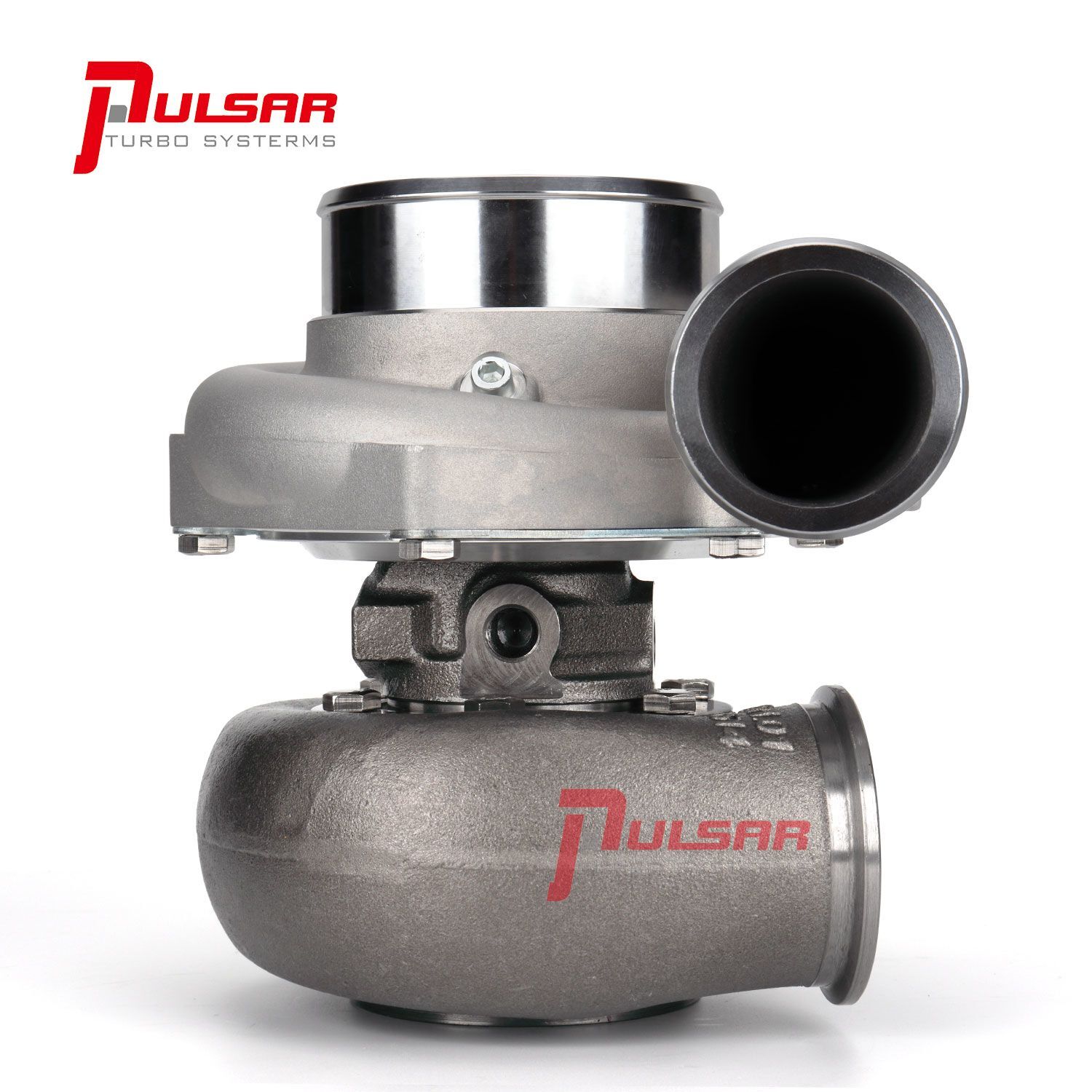

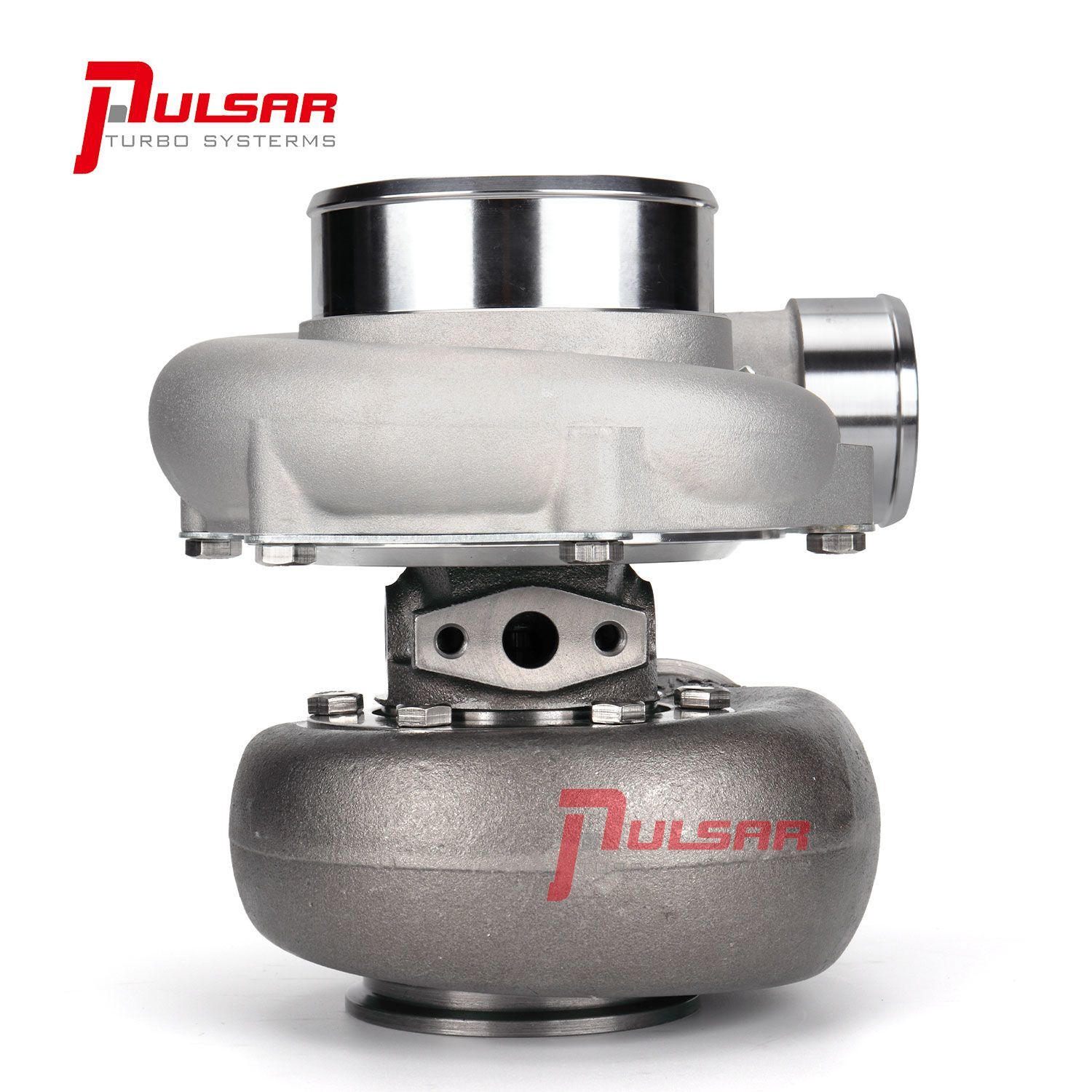

PSR3584 GEN3 TURBO comes with Larger Turbine Wheel for higher flow.

It has been tested and achieves more than 50 hp!
