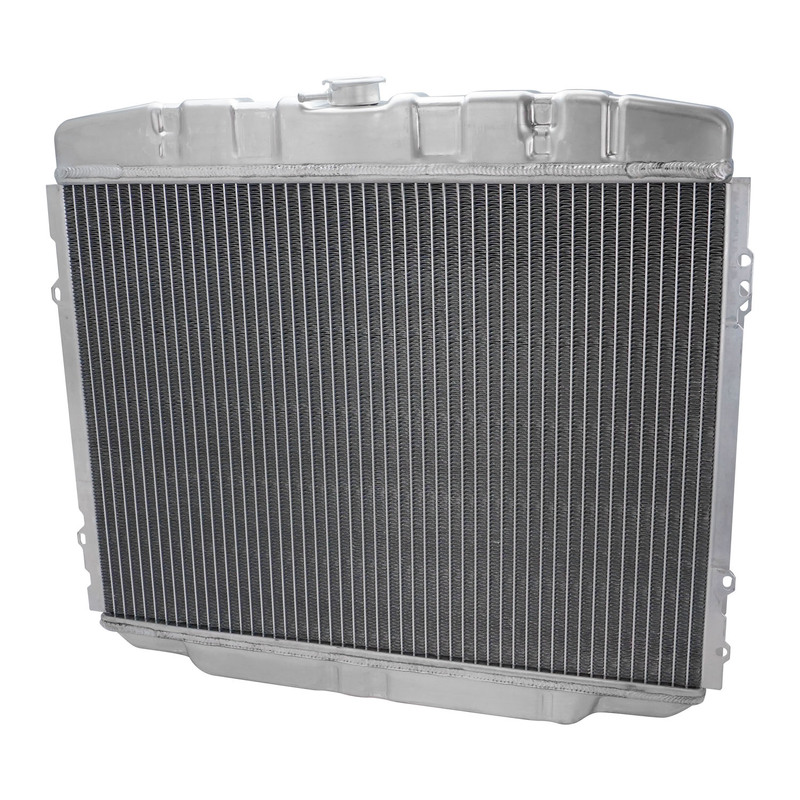

These direct upgraded replacements of the original Ford Falcon XW-XY / Fairlane ZC-ZD  Cleveland radiators feature two large 1” tubes for high flow and maximum cooling. Most brass copper radiators use 1/2" tubes so in comparison these radiators are equivalent to a 4 core radiator. These radiators are fitted with automatic transmission cooler as used in O/E vehicles.

Specifications:

  • XR to XY with Cleveland or Windsor with L/H inlet water pump
  • ZA to ZD with Cleveland or Windsor with L/H inlet water pump
  • Accepts original Shroud and retaining clips
  • 351 style battery tray should be used to provide adequate clearance
  • PFERDM-077 suggested mounting kit
  • OEM factory style pressed tanks
  • Overall Width: 640mm
  • Overall Height: 570mm
  • Core Width: 600mm
  • Core Height: 440mm
  • With 3/8NPT Port In Top Tank For Electric Fan Switch , Not included
  • With 1/4NPT Port in bottom tank for Sacrificial Anode PFE933-ANO (Recommended) or Drain Plug, Not included
