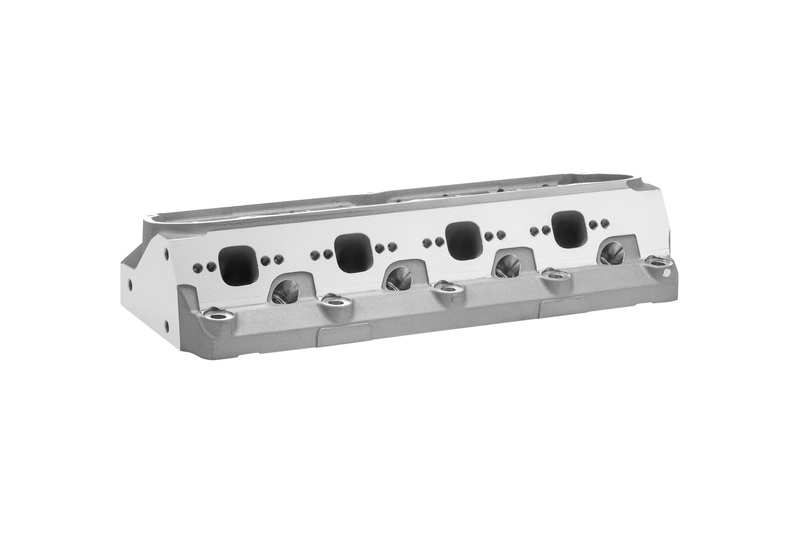

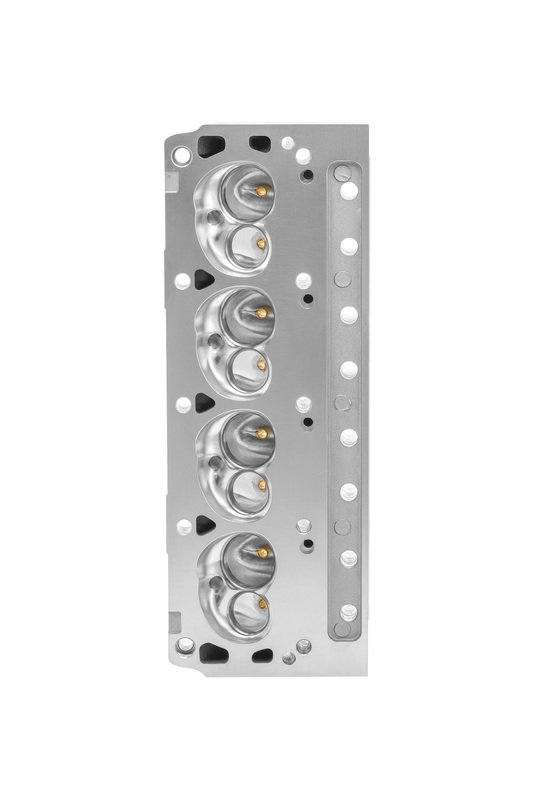

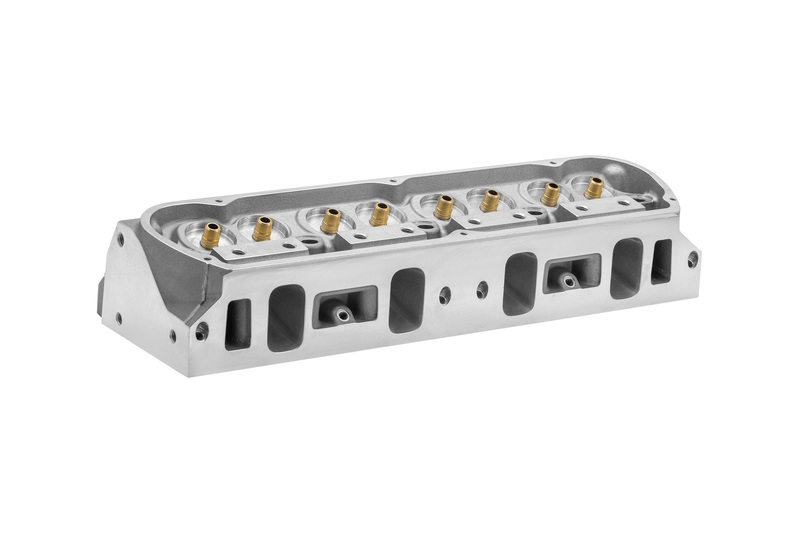

Proflow Cylinder Heads, SuperMax 205, SB Ford 289, 302, 351W, Bare

Proflow does not sacrifice quality for a low price--you get both with our aluminium cylinder heads. The lightweight heads are cast from A-356 aluminium alloy with a large choice of Engine, for SB & BB Chevrolet, LS Chev Holden Ford SB 289-351W, 302,351 Cleveland 2V & 3V & BB FE, and Chrysler SB & BB, phosphorous bronze valve guides, and ductile iron valve seats for use with unleaded gas. They're also end-milled and drilled for accessories. The fully assembled heads have stainless steel valves, High Performance valve springs, 7 degree valve locks, rocker arm studs, and guideplates. Perfect for your Mild or High performance Hot Rod.

Note: We suggest using Proflow Head Bolt Stepped washers part number PFEAHF-HBW. Proflow head bolt insert washers are designed to be used on Ford Windsor cylinder heads in applications where you have 7/16" head bolts being used in 1/2" bolt holes. This stops the head bolt hole distorting on aluminium heads when using 7/16'' bolts on 289 / 302 standard Windsor blocks.

Specifications & Features:
Material A356.2 Aluminum
Intake Port Volume 203cc
Intake seat size 2.08
Exhaust seat size 1.6
Intake Port Dimension 2.115" H x 1.300" W x 3/8 Radius
Intake Port Location Stock
Exhaust Port Volume 70cc
Exhaust Port Dimension 1.400" H x 1.400" W
Exhaust Port Location Raised .125"
Combustion Chamber Size 58cc
Valve Cover Bolt Pattern Perimeter Bolt
Valve Angle 20°
Valve Spring Pocket Diameter 1.580" O.D
Max Valve Spring Pocket Machining 1.625" O.D
Deck Thickness .750"
Minimum Bore Diameter 4.000"
Flat Mill .006" per cc 54cc Max (from 58cc); 68cc Max (from 72cc);
Angle Mill .009" per cc 48cc Max (from 58cc); 62cc Max (from 72cc);
Minimum Cross Sectional Area 2.165 sq. in.
Spark Plug Dimensions 14mm x .750" w/Gasket Seat
Head Bolt Diameter 1/2"


Recommended Components:
Rocker Type Mount
8mm Bead Lock Intake Valve, 2.080" x 5.000" Overall Valve Length
8mm Bead Lock Exhaust Valve, 1.600" x 5.030" Overall Valve Length
PAC Racing Spring 1.550" OD Solid Roller Dual Valve Spring, 220 lbs on seat, .710" maximum lift, Max RPM 7200-7400 (upgrades available)
10° Manley Steel Retainers 1.500" O.D x 1.120" I.D x .705" I.D
10° Bead Lock Valve Keepers with lashcap recess
ARP 7/16" Rocker Studs
Adjustable 5/16" Guide Plates
Viton Valve Seals .600" O.D x .495" I.D
Hardened Valve Spring I.D Locator 1.550" O.D x .780" I.D
Powder Metallurgy Intake Valve Seats 2.131" O.D x 1.680" I.D x .375" Deep
Powder Metallurgy Exhaust Valve Seats 1.650" O.D x 1.350" I.D x .375" Deep
8 mm Bronze Valve Guides .502" O.D x 2.100" O.A.L
Recommended Components:
Intake Port Gasket, 1.200" X 2.000" w/ 3/8" radius, Fel-Pro #1262
Important: Do not port match your intake manifold to Fel-Pro gasket as it does not precisely fit MIC heads.
Exhaust Port Gasket, Fel-Pro #1487
Head Gasket, Fel-Pro #1011-1
SB Ford 1/2" Bolt Head Bolt Kit, ARP #154-3603
SB Ford 1/2" Bolt Head Stud Kit, ARP #254-4503
1/2" Bolt - 7/16" Thread Head Bolts, ARP 254-3708
Head Bolt Washer Kit, Manley
Stud Girdle
Suggested Manifold Super Vic or Vic Jr.
Spark Plug Starting Range Autolite 3922
