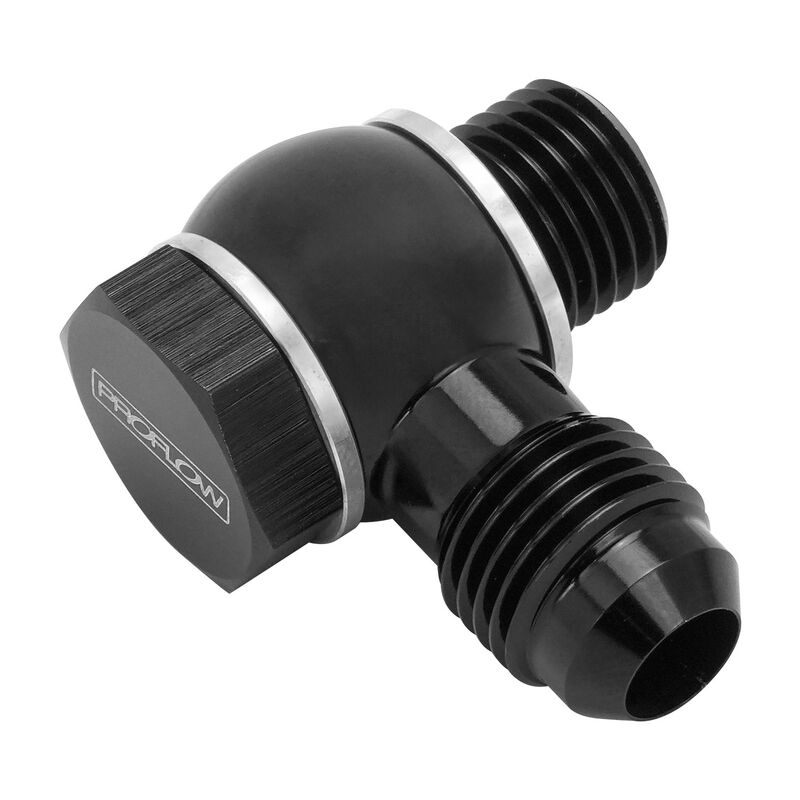

Designed to provide an easy connection to hose ends, these Proflow AN Transmission adaptors allow you to use AN hose fittings.

Specially designed banjo and bolt , will allow your cooler lines to enter at 90 degrees to the inlet/outlet keeping them tucked up against transmission giving plenty of clearance around tight transmission tunnel and headers, etc

Suits

• TH700-4R, 4L60, 4L60E (Both)
• 4L80E 91-96
• 4L80E 97-04 -Front only - For Rear MUST USE PFE816-06NPS with tube extennsion
• TH350
• TH400
• Late Ford C Series Gearboxes ( Read Below )

• Majority of C4 transmissions have/use 1/8" NPSM trans cooler line fittings but later boxes used 1/4" NPSM. For this reason you will need to check what thread size you have. The term C9 and C10 is not recognised in any American literature, as its an Australian slang term used to identify particular C4 gearboxes. A C9 in Australia is a case fill 26 spline C4. What we call a C10 is a pan fill 26 spline C4.

  Note: Ford C4 transmissions were produced in the USA from 1964 through to 1986 (Later boxes were actually renamed as C5)
