Designed to provide an easy connection to hose ends, these Proflow AN Transmission adaptors allow you to use AN hose fittings.

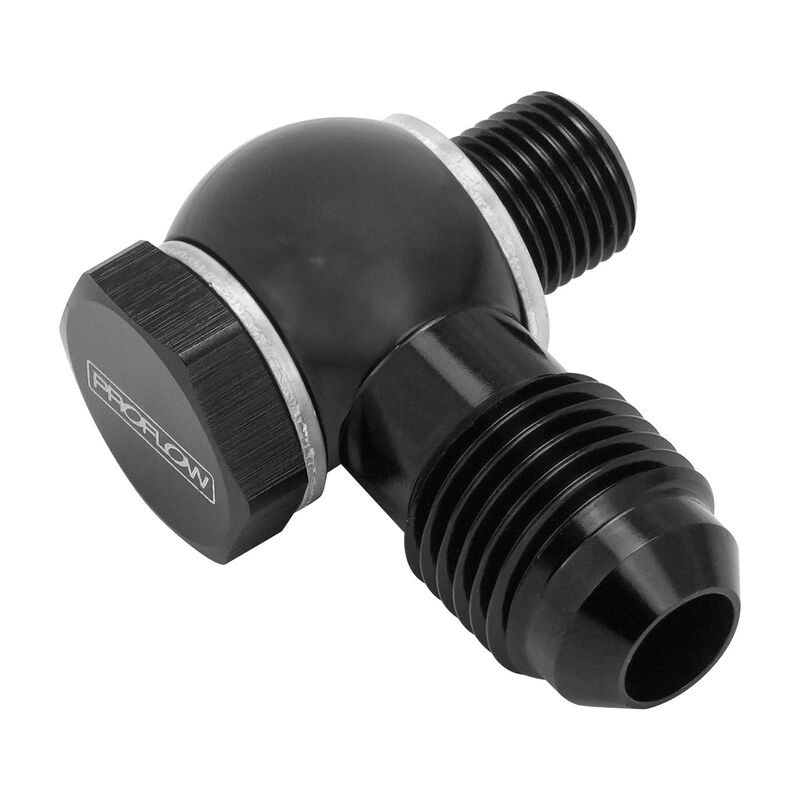

Specially designed banjo and bolt , will allow your cooler lines to enter at 90 degrees to the inlet/outlet. Perfect for tight transmission tunnels or when spacers are used between transmission mount and crossmember to raise transmission higher up into tramsission tunnel to correct driveline angle on lowered vehicles

Majority of C4 transmissions have/use 1/8" NPSM trans cooler line fittings but later boxes used 1/4" NPSM. For this reason you will need to check what thread size you have. The term C9 and C10 is not recognised in any American literature, as its an Australian slang term used to identify particular C4 gearboxes. A  C9 in Australia is a case fill 26 spline C4. What we call a C10 is a pan fill 26 spline C4.

Note: Ford C4 transmissions were produced in the USA from 1964 through to 1986 (Later boxes were actually renamed as C5)
