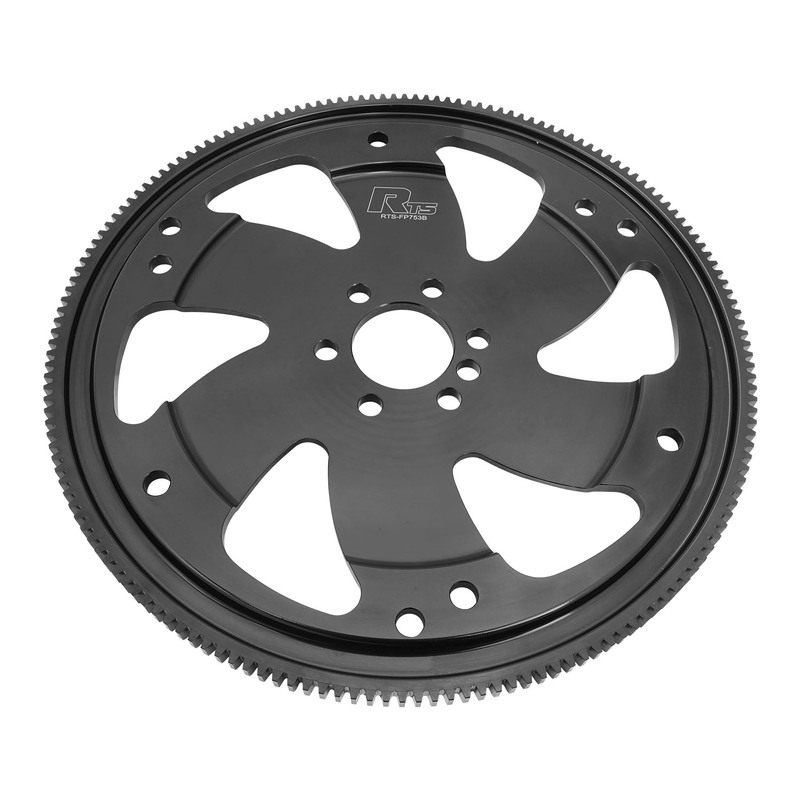

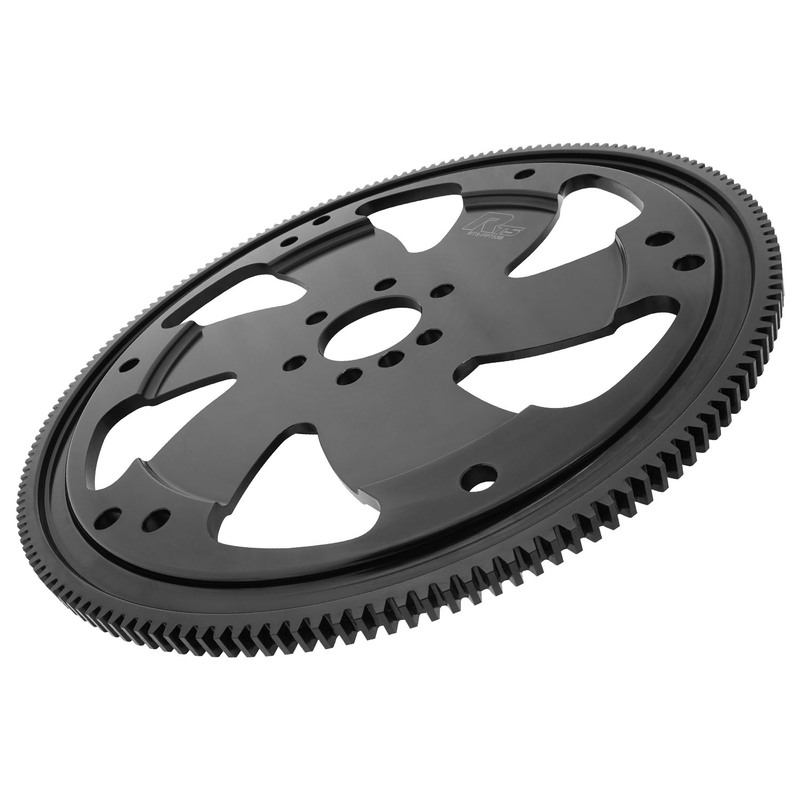

RTS’ full billet steel flexplates are for the serious racers. They are machined out of cold-drawn AISI 1045 carbon steel and come with a stealth black oxidised plating for added durability. Their strength to weight ratio is incredible compared to their 2-piece counterparts which enables them to handle extreme engine builds in excess of 1000 HP. They offer heat-treated, precision machined gear teeth for added strength and feature low runout values to produce an incredibly durable flexplate. They all come with a SFI 29.2 explosion-proof rating.

Specifications:

  • Concentric machined to .005".
  • One piece design - 100% machined.
  • Chamfered gear tooth provides better engagement.
  • Fits GM LS engines with 6 bolt crank.
  • 168 tooth ring gear.
  • Converter pattern 1: 3 holes 7/16" diameter on 10.75" bolt circle.
  • Converter pattern 2: 3 holes 7/16" diameter on 11.50" bolt circle.
  • Converter pattern 3: 3 holes 7/16" diameter on 11.06'' bolt circle.
  • Will not suit 8-bolt crank (LSA)
