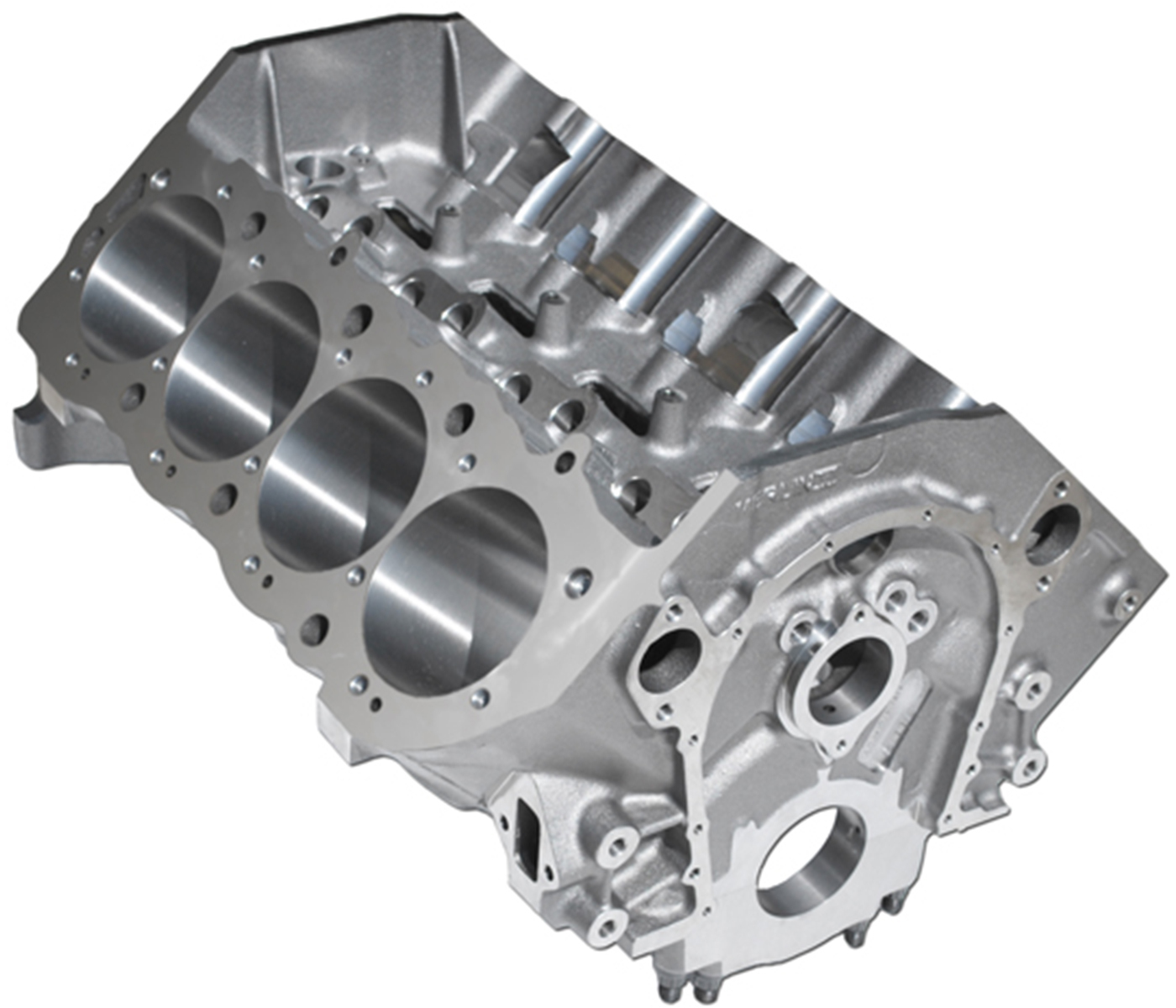

World Products Merlin III Engine Blocks

World Products used their 15-plus years of experience manufacturing Merlin blocks for competition to develop these affordable, CNC-machined versions that are perfect for marine, ET bracket racing, and street use. These Merlin III blocks incorporate reinforced bulkheads and main webs, thicker decks, and a priority main oiling system.

Specifications are as follows:

* Made from high-density cast iron
* 9.800 in. or 10.200 in. deck heights with .600 in. minimum thickness
* Dry sump valley scavenge lines drilled
* Clearanced for 4.375 in. stroker crankshaft (H-beam steel rods for 9.800 in. deck), or 4.750 in. clearance for 10.200 in. deck
* Integral mount for spin-on oil filter
* Dry sump systems can feed from front or rear of block
* Can be bored to 4.625 in. maximum
* Water jackets expanded for better cooling
* Standard Chevy cam location and cam bearings
* Priority main oiling system for maximum reliability
* Solid pan rails with stock spacing
* OEM starter, fuel pump, and engine mounts (dual)
* Blind tapped head bolt holes for extra integrity
* 100 percent compatible with OEM parts
* Indexed lifter bores
* Integral boss for front-feed oiling systems
* Compatible with all Chevy Mark IV components
* Stepped oiling (.584 in.-.500 in.-.437 in.)
* Extra head bolt bosses in valley to accommodate special racing heads
* Oil drainback in valley lubricates distributor gear
* Blind holes drilled into valley for screen (no risk of cam binding)
* Manufactured to QS-9000 specs on two CNC centers

More From This Category

Dart Engine Block, Big M, 4-Bolt Mains, 2-Piece Rear Seal, BBC 10.2, Standard, 4.250water bn br GenV, Each

Dart Engine Block, Big M, 4-Bolt Mains, 2-Piece Rear Seal, BBC 10.2, Standard, 4.250water bn br GenV, Each

$4,216.56

View
Dart Engine Block, Big M Race Series Chevorlet Big Aluminum, 4.250 In. Bore, 10.200 In. Deck, Each

Dart Engine Block, Big M Race Series Chevorlet Big Aluminum, 4.250 In. Bore, 10.200 In. Deck, Each

$15,136.99

View

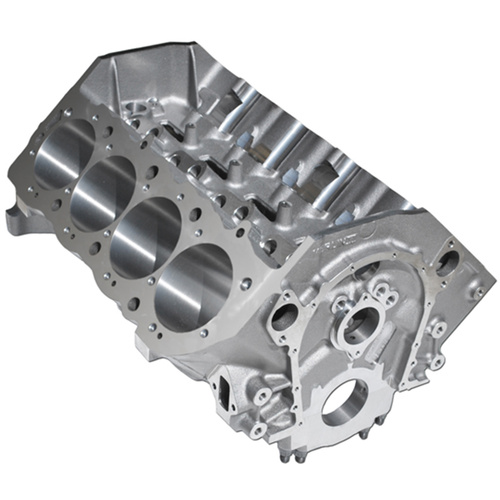

World BB Chev Engine Block, Merlin III BBC Iron Block - 10.200" Deck, 4.245" Bore, Nodular Caps, Std. Cam, Std. Lifters
