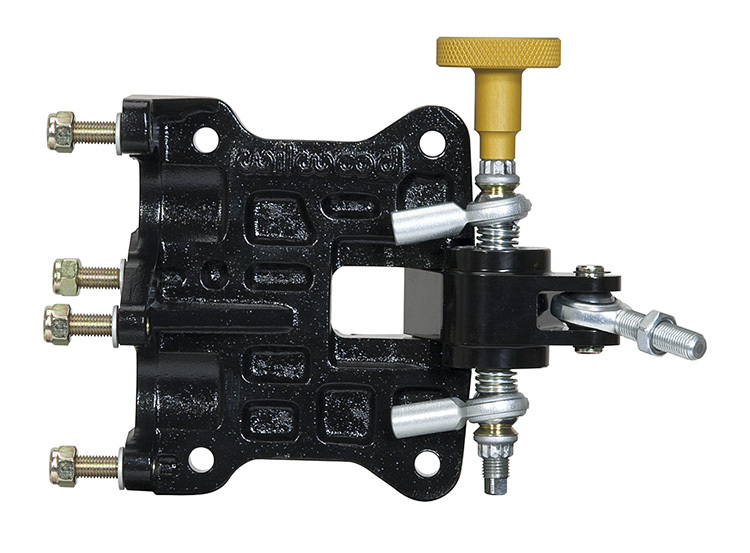

This Tru-bar unit is ideal for Sprint Cars, Midgets, Dirt Modifieds, or any application where the master cylinders must be mounted remotely from the pedal. This unit features a variable leverage, machined billet pivot arm that multiplies input force on average by 1.5:1 - a 5:1 pedal becomes 7.5:1, 6:1 becomes 9:1. To accommodate fitment where space is at a premium, the master cylinders mount one above the other, twisted 60 degrees with remote fluid reservoirs. When mounted within the driver's reach, the included knob can adjust bias on track quickly and easily. Wilwood's Remote Mount Tru-Bar pedal utilizes a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments to deliver professional, championship caliber braking performance. A larger diameter 7/16-20 bar is more rigid and provides quicker adjustment, with a 3/8" diameter end that works with standard remote adjuster cables. It provides the ultimate in precision bias adjustment, control, and fine-tuning on race vehicles equipped with dual brake master cylinder systems and proportionally sized calipers.
