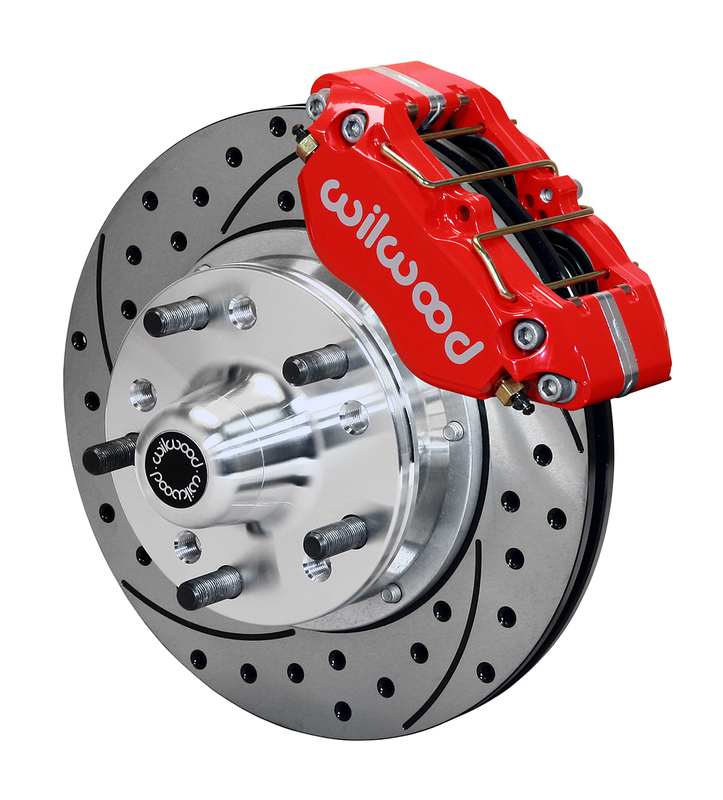

Big Brake kit 11'' Front Dynapro Dust-Boot , Holden HQ-WB, Torana

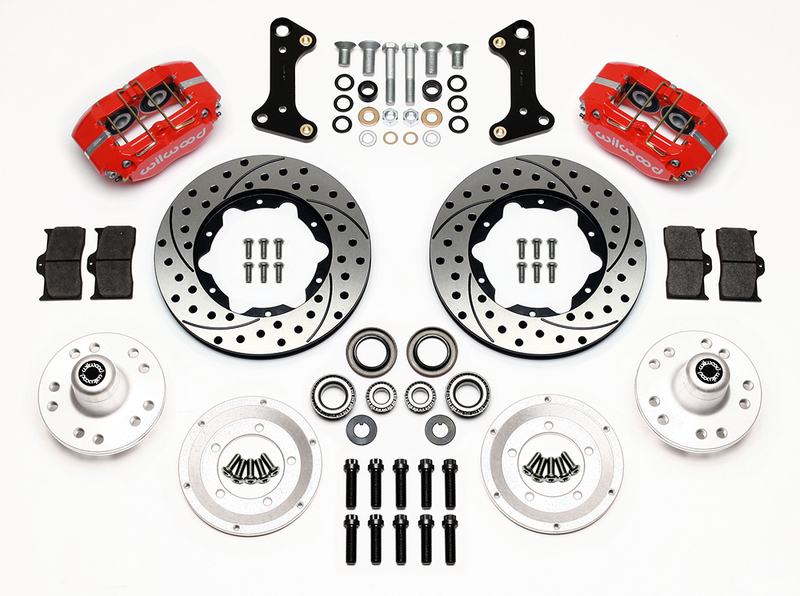

Wilwood's new DP-DB Pro-Series Front Hub Kits offer disc brake upgrade solutions for OEM spindles. We have completely redesigned our Pro Series line of brake kits using a larger 11" rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position. Based on the venerable Forged Dynapro Dustboot caliper, these kits were developed for applications or locations that require or prefer a dust-sealed piston. Dust-booted aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. Most vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. DP-DB Pro-Series kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors, hub assembly, brackets and hardware. Kit installation requires purchase of additional brake lines shown below.

OE Hub Offset: +.19
(Increase / Decrease Track Width)
Spindle Type: Drop Spindle Factory Disc Spindle Factory Drum Spindle
Mount Type: Lug
Caliper Type: 4 - Red Powder Coat
Rotor Diameter: 11.00
Min Wheel Diameter Req'd*: 14

Application:

  • Holden HQ-WB & Torana LC-UC (Must use HQ Stub Axle)
  • 4 Spot Billet Black Dust Boot Brake's Calliper
  • Cross Drilled & Slotted Rotors
  • ADR Approved
  • Note : Use Brake Hose Kit PFE-BH2030-SS-KIT



These bolt on brake kits have been designed to upgrade your early Holden brakes while retaining the factory stub axles and being ADR compliant. These kits include the well established Wilwood Dynapro Front Dust-Boot Pro Series brake kit as well as the bracket enabling the brake calipers to be bolted up to the factory stub axle.

More From This Category

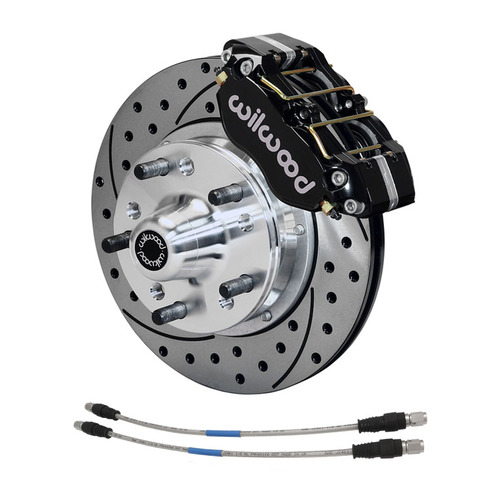

Wilwood Disc Brake SS Kit, Pro Series Front 11'' Holden HQ HJ HZ WB Torana ,Dust-Boot Cross-drilled, Slotted Rotors Black 4-piston Callipers, Kit

Wilwood Disc Brake SS Kit, Pro Series Front 11'' Holden HQ HJ HZ WB Torana ,Dust-Boot Cross-drilled, Slotted Rotors Black 4-piston Callipers, Kit

$2,275.00

View
Wilwood Disc Brake Kit, Pro Series Front 11'' Holden HQ HJ HZ WB Torana ,Dust-Boot Cross-drilled, Slotted Rotors Black 4-piston Callipers, Kit

Wilwood Disc Brake Kit, Pro Series Front 11'' Holden HQ HJ HZ WB Torana ,Dust-Boot Cross-drilled, Slotted Rotors Black 4-piston Callipers, Kit

$2,075.00

View

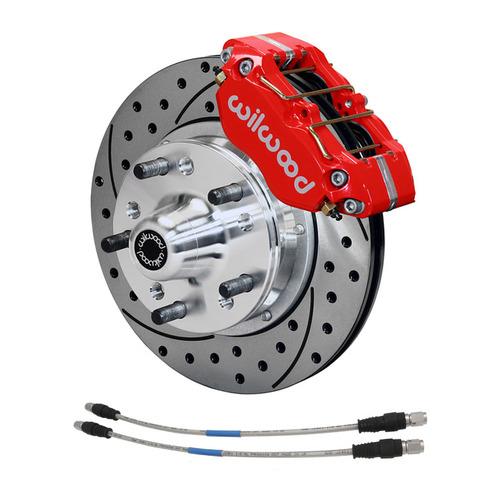

Wilwood Disc Brake SS Kit, Pro Series Front 11'' Holden HQ HJ HZ WB Torana ,Dust-Boot Cross-drilled, Slotted Rotors Red 4-piston Callipers, Kit
