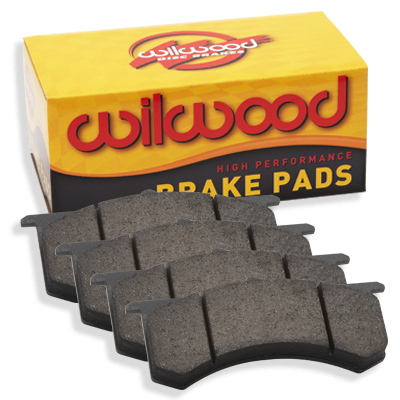

Front Caliper Kit Dynapro Dust-Boot with Brake Pads, Holden HQ-WB

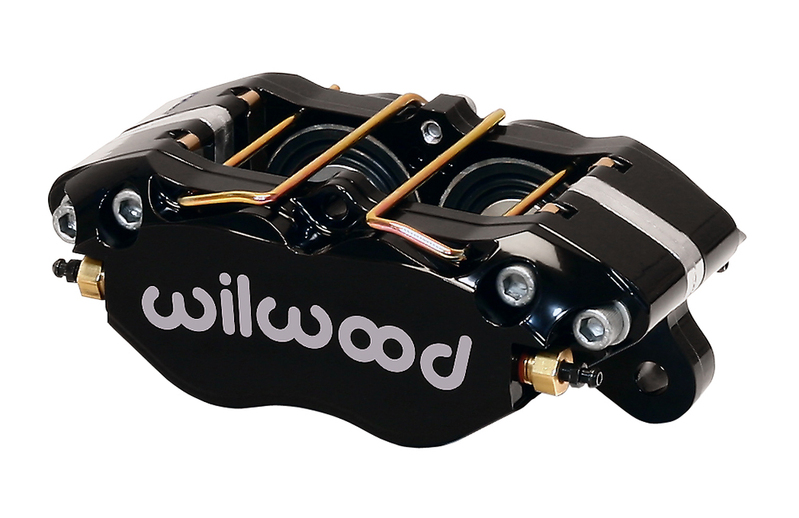

The Dynapro Dust-Boot (DP-DB) model of the Dynapro lug mount caliper was developed for applications that require or prefer a dust-booted piston. Dust-booted aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. The pistons are clear anodized to eliminate corrosion while providing added lubricity for drag-free operation within the bores. The dust boots work in conjunction with high-temperature square faced internal seals in the caliper bores to provide optimum performance, ultimate reliability, and quick turn around at pad service intervals.

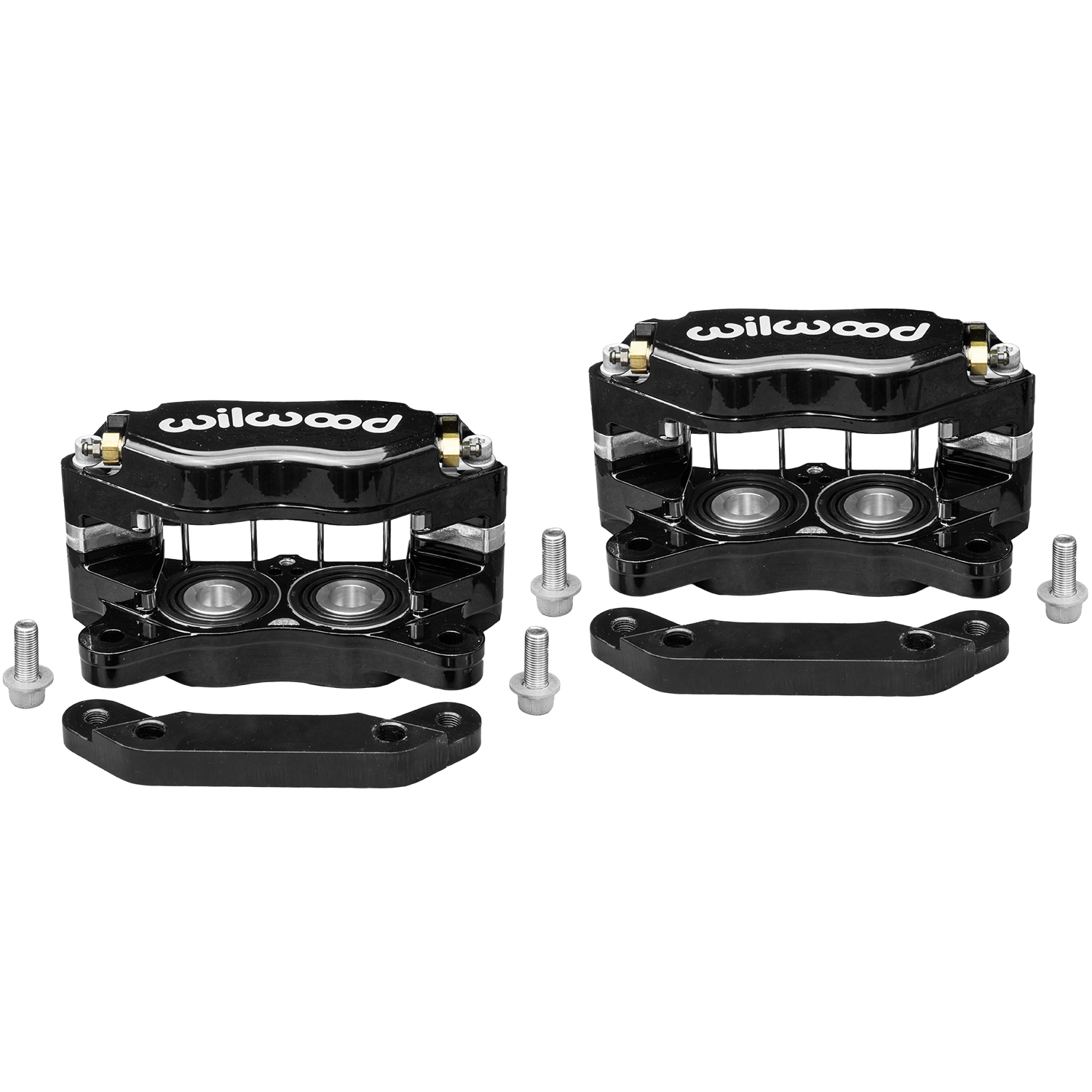

These caliper kits have been designed to make it possible to upgrade your early Holden brakes while retaining the factory HQ-HZ Discs & stub axles and being ADR compliant. These kits include the well established Wilwood caliper kit as well as the bracket enabling the brake calipers to be bolted up to the factory stub axle.

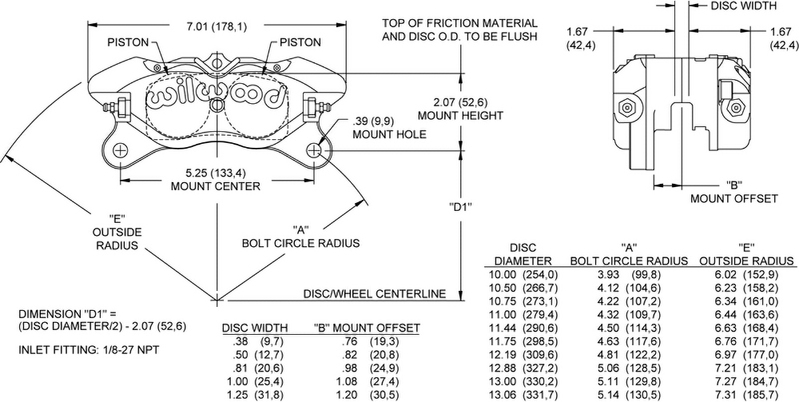

Mounting Specifications
Mount Type Lug
Mount Side Universal
Mount Center(in) 5.25
Mount Hole Size(in) 0.39
Mount Height(in) 2.10
Inlet Thread Size 1/8-27 NPT



Note : Use Brake Hose Kit PFE-BH2030-SS-KIT
