The GenV WG45 HyperGate45 External Wastegate is a Motorsport-proven, cost-effective 45mm external wastegate “ The highest flowing gate of its kind. The GenV provides extensive user configuration, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.

The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD is optimized and validated in-house for maximum flow and thermal management; the GenV Range has more features, options, and performance than any other gate.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type Vband clamps, optional liquid-cooling provision, 1/8³ NPT reference ports and are provided with the full range of available springs.

Available In
Black, Blue, Red, Purple and Sleeper colours
Wastegate Position Sensor Optional Upgrade
Compressed Gas / Co2 Version
Motorsport / Extreme Temp Version
Electronically Actuated / eWG Version
High Pressure (Up to 50psi Base) Version

Features
Class Leading Thermal Performance
Class Leading CFD and Bench-Validated Flow Performance
Class Leading Fatigue Resistance
Optional Liquid Actuator Cooling
Optional Position Sensor Available Separately
Rotatable / Clockable Actuator Housing
Nitronic 60 Valve Guide and High Temp 347 SS Body
17-7 PH Stainless Steel Springs
Strap Type V-band clamps

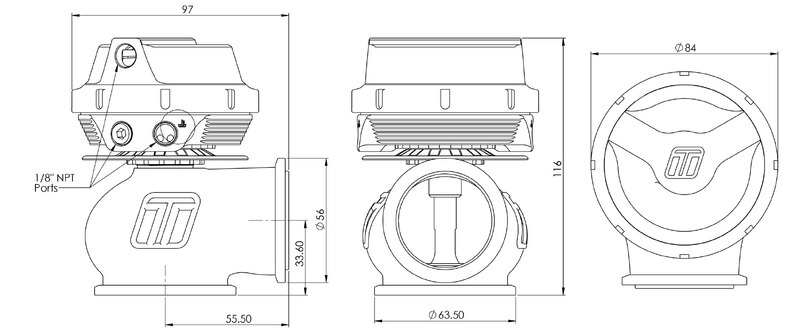

TURBOSMART GenV HyperGate45 External Wastegate, 14PSI, Blue, Kit Diagram Image
