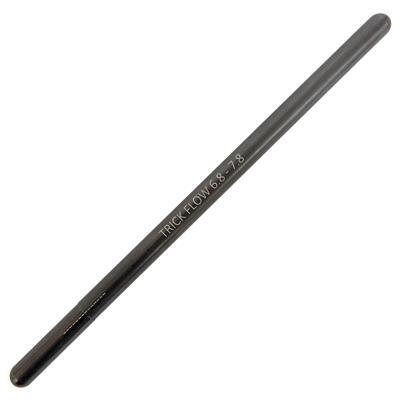

Trick Flow® Pro Calibrated Adjustable Pushrod Length Checkers feature gauge length measurements because it is the most accurate method of measuring pushrod length. Here is how they work: Each checker's range length number represents the overall length it can measure through one full inch of extension with the two halves screwed together. A laser-etched alignment line identifies each full rotation position—and grooves every .050 in. on the inner sleeve keep count of the number of rotations made. For example, when a 7.800-8.800 length checker is turned apart by one rotation, the correct length for the new pushrods required would be 7.850 in. (7.800 + .050 = 7.850). The Trick Flow® checkers are made from high-quality steel alloy with a durable black oxide coating for a lifetime worth of pushrod length checks. They're available in versions with ball tips or cup tips, and in ranges from 5.800 in. to 12.800 in.

More From This Category

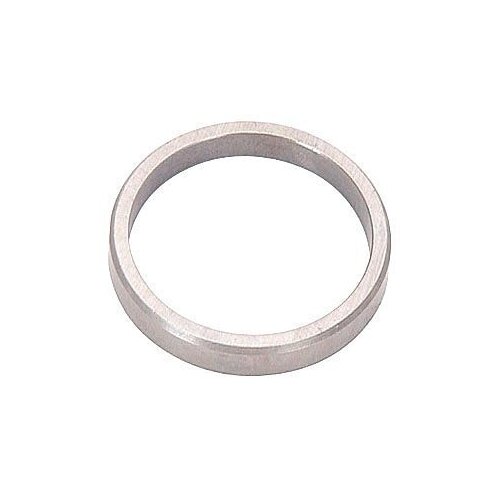

Dart Valve Seat, 2.360 x 1.900 x .375, Each
