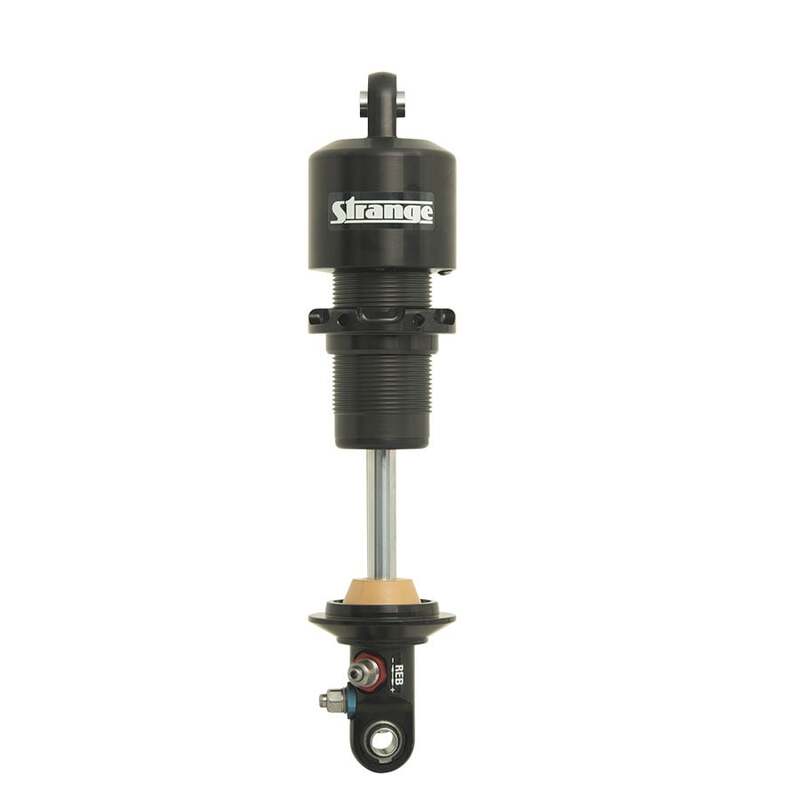

Strange Ultra Series Drag Race Coil Over Shocks feature in-line and piggyback reservoir technology in a fully adjustable drag racing shock. Monotube construction, a hollow induction hardened super finished chrome rod and a 48-millimeter hardened piston (with Teflon coating) make this integrated reservoir drag race shock lighter without sacrificing durability or longevity.

Part Number: S7204I

MONOTUBE CONSTRUCTION
– Lighter weight / High heat dissipation
– Can be operated inverted
– Reduces unsprung weight
– Provides consistent chassis reaction

GAS CHARGED INTEGRAL RESERVOIR
– Floating piston compensates for oil displaced as shock is compressed

WIDE RANGE OF TUNING ADJUSTMENT
– 24 clicks for both compression & rebound
– Clicks are Independent and positively lock
– Allows for fine tuning for varying conditions
– Adjustments are made with a standard 5/32” Allen wrench

ULTRA LOW FRICTION GUIDE AND SEAL
– Reduces wear during side loading and temperature variations
– Maximizes performance consistency

HOLLOW INDUCTION HARDENED SUPER FINISHED CHROME ROD
– Lowers inertia while minimizing deflection and friction

48MM HARDENED PISTON WITH TEFLON® COATING
– Provides precise low speed control while maintaining consistency
– Large working pressure area allows for higher dampening forces
– Straighter port design improves oil flow for a quicker response time
– Hysteresis is minimized resulting in improved grip and stability
– Improved stability and traction at launch and down track

• PISTON BASED VALVING SYSTEM
– Isolates compression and extension adjustments from affecting each other
– Decreases blow off force requirements / Improves frequency response
– Superior low speed control
– Allows for improved launch control and reduced tire shake

LOCKING ANODIZED SPRING SEAT
– Spring seat and body threads are coated for corrosion & galling resistance

Extended Length- 15.30″
Collapsed (No bumper)- 11.14″
Recommended Ride Height- 12.50″-13.5″
Stroke- 4.16″
Suggested Spring- 8″ x 2.5 ID
