Strange Aluminum Single Adjustable Coil-Over Shocks permit precise rebound adjustment. Adjustment nuts are turned to one of ten positions in order to alter spring tension according to external conditions; such as surface condition and temperature. Lock nuts hold adjustment nuts securely in place until adjustments are necessary. Torrington Spring Seat Bearing Sets are sold separately for single adjustable coil-overs.

Part Number: S5207

Application

Drag Race Vehicles

Short Stroke
2.62″ thru 3.86″ – A-Arm Systems

3.86″ – Some Dragster 4-Link Systems

Long Stroke
4.64″ thru 8.15″ – 4-Link & Ladder Bar Systems

Description

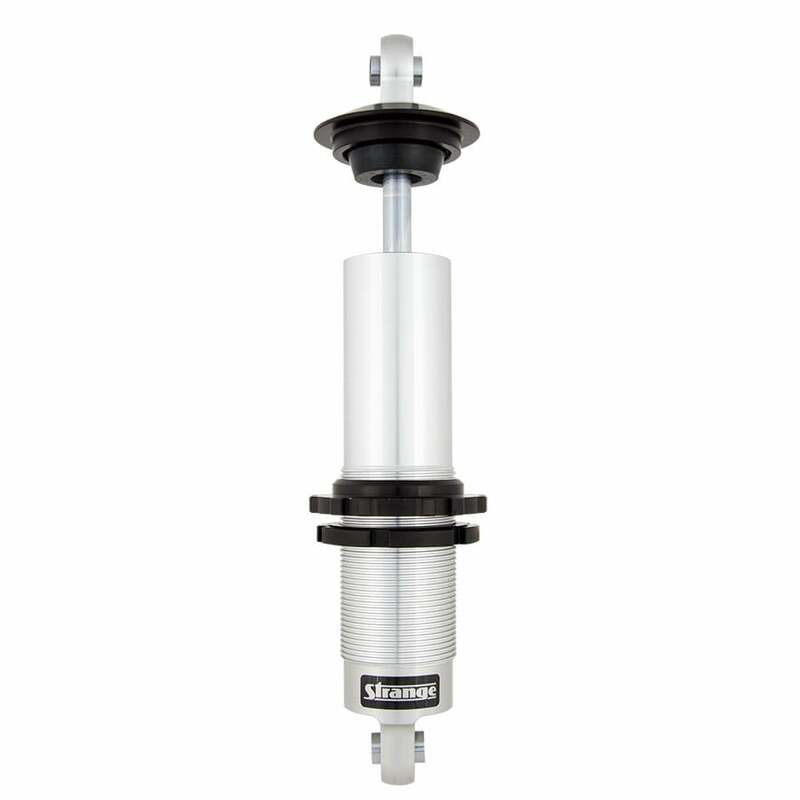

Single Adjustable Coil-Over Shock
Sold as each

Dimension A

Stroke 6.52″ / Extended 19.15″ / Compressed 12.64″

With .563″ Bump Rubber Installed
Stroke 5.957″ / Compressed 13.203″

Recommended Ride Height

15.25″ – 16.00″

Accepts 14″ x 2.5″ ID spring – Sold separately

Features

• Lightweight aluminum body

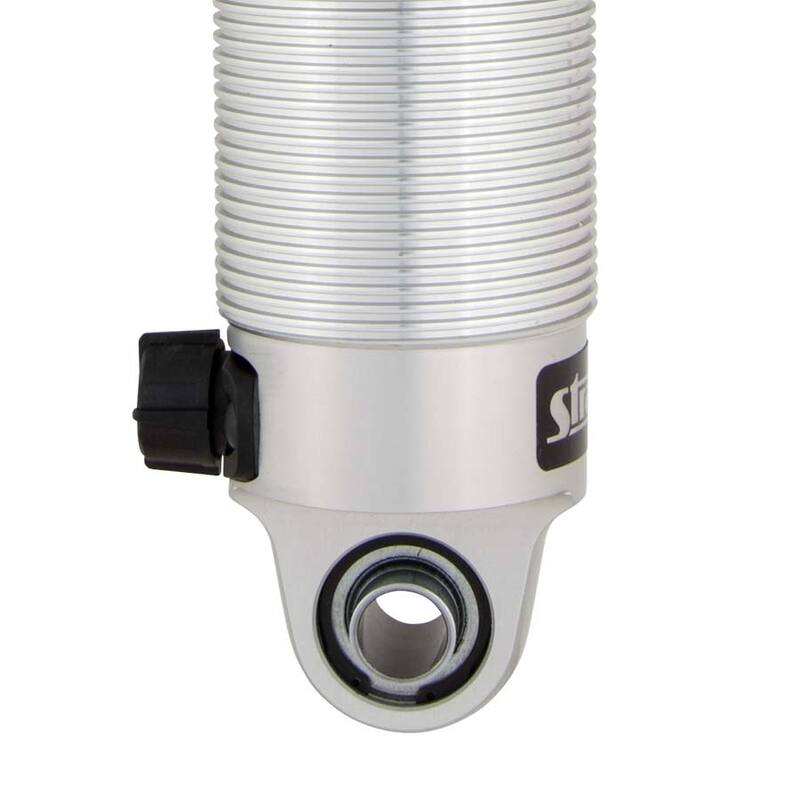

• External adjustment knob
• Provides 10 extension settings
• Allows quick adjustments for varying conditions
• Coil-over design permits easy changes to ride height
• 1.00″ wide high misalignment spherical rod ends
• Ability to be rebuilt or revalved

Options

– .500″ or 1.500″ wide spherical bearings
– Polyurethane bushings with steel sleeves *
– Upper stud mount with rubber cushions *
– Custom valving *

* To Order Shock With These Options Please Call
Not available for online orders

Rear Shock Adjustments

Ladder Bar Systems
Below assumes rear chassis separation

Softer – Allows more downward force applied to the rear tires
Stiffer – Enables quicker reaction times

4-Link Systems
Below assumes rear chassis compression

Softer – Improves stability encountering bumps in the track
Stiffer – Delays the return to normal ride height during launch

Rotating Knob Clockwise Stiffens Valving

Related Components

Spring seat bearing kit………………. S1409
Spring seat adjuster wrench……… S1413

Double Adjustable……………………. S5007A
Double Adjustable Package………. S5007
