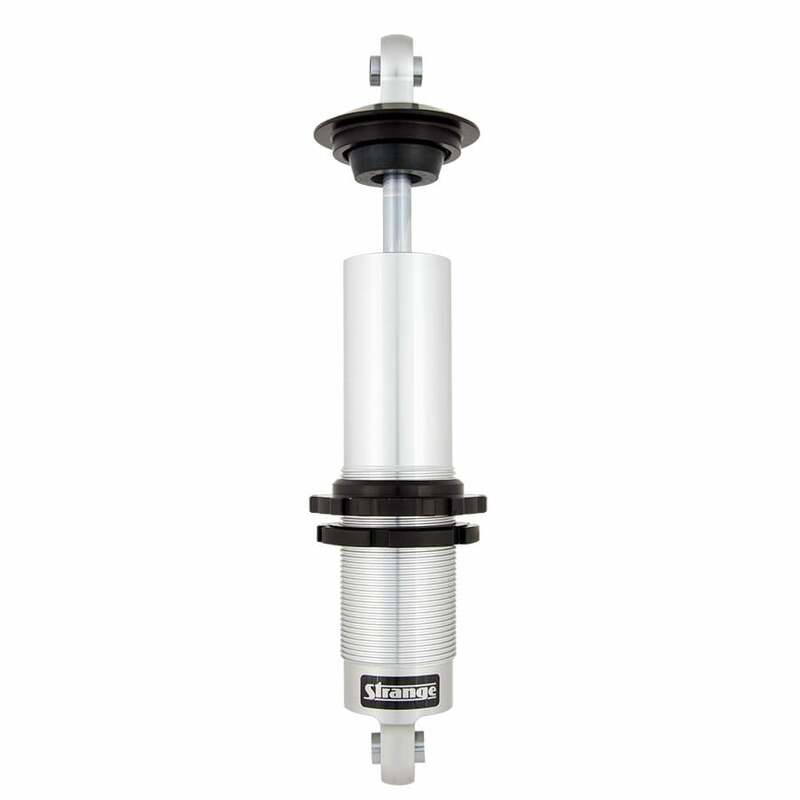

Strange Aluminum Single Adjustable Coil-Over Shocks permit precise rebound adjustment. Adjustment nuts are turned to one of ten positions in order to alter spring tension according to external conditions; such as surface condition and temperature. Lock nuts hold adjustment nuts securely in place until adjustments are necessary. Torrington Spring Seat Bearing Sets are sold separately for single adjustable coil-overs.

Part Number: S5203

Application

Drag Race Vehicles

Short Stroke
2.62″ thru 3.86″ – A-Arm Systems

3.86″ – Some Dragster 4-Link Systems

Long Stroke
4.64″ thru 8.15″ – 4-Link & Ladder Bar Systems

Description

Single Adjustable Coil-Over Shock
Sold as each

Dimension A

Stroke 3.36″ / Extended 12.84″ / Compressed 9.50″

With .563″ Bump Rubber Installed
Stroke 2.797″ / Compressed 10.063″

Recommended Ride Height

11.00″ – 11.375″

Accepts 7″ or 8″ x 2.5″ ID spring – Sold separately

Features

• Lightweight aluminum body

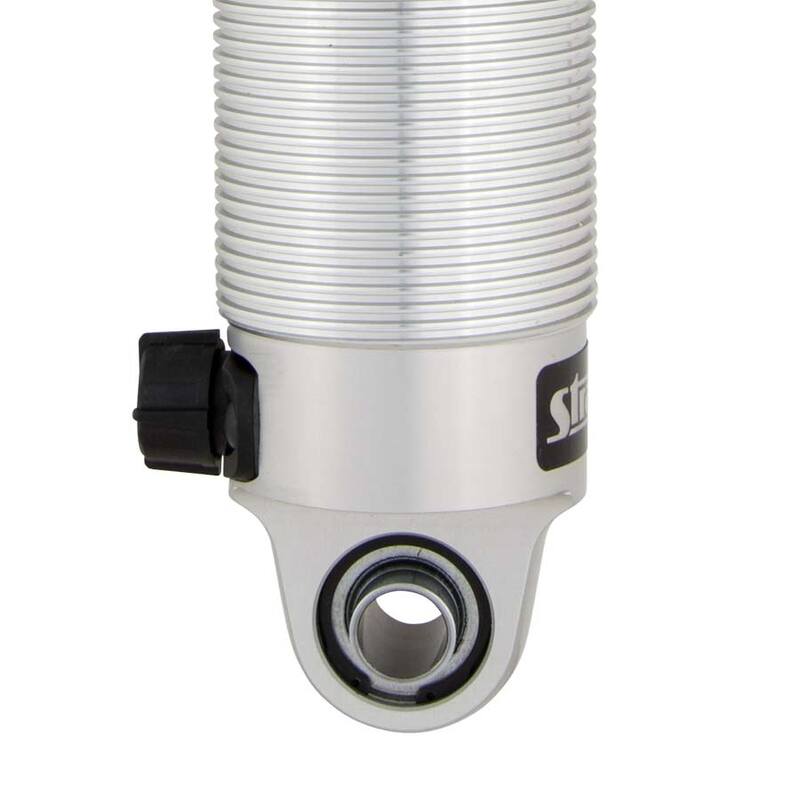

• External adjustment knob
• Provides 10 extension settings
• Allows quick adjustments for varying conditions
• Coil-over design permits easy changes to ride height
• 1.00″ wide high misalignment spherical rod ends
• Ability to be rebuilt or revalved

Options

– .500″ or 1.500″ wide spherical bearings
– Polyurethane bushings with steel sleeves *
– Upper stud mount with rubber cushions *
– Custom valving *

* To Order Shock With These Options Please Call
Not available for online orders

Front Shock Adjustments

Softer – Allows for more weight transfer
Stiffer – Enables quicker reaction times

Rotating Knob Clockwise Stiffens Valving

Related Components

Spring seat bearing kit………………. S1409
Spring seat adjuster wrench……… S1413

Double Adjustable……………………. S5003A
Double Adjustable Package………. S5003
