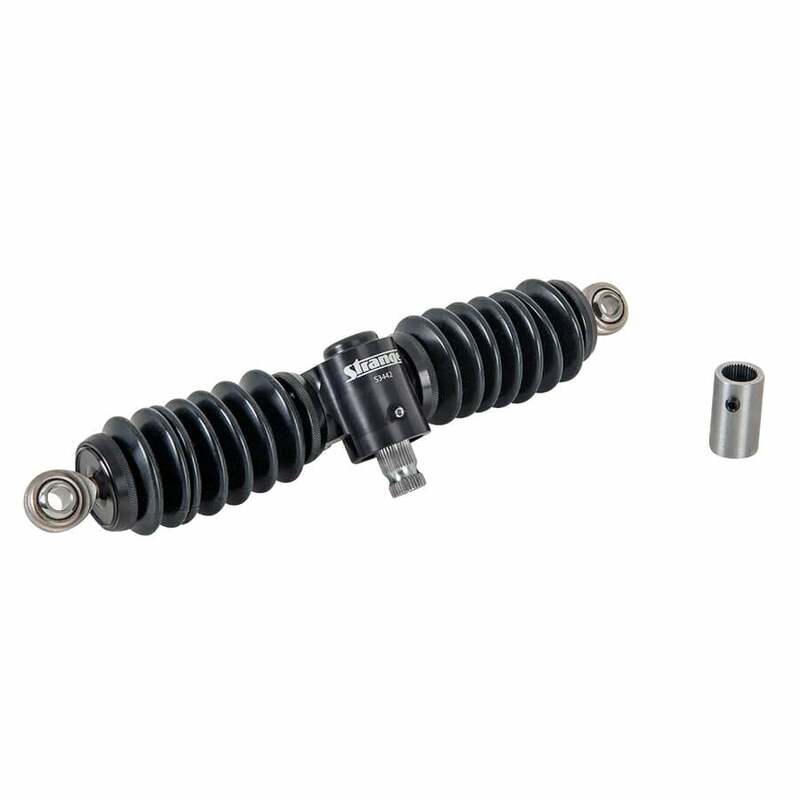

Part Number: S3442

Application – Rear Motor Dragsters

Description
Steering Rack & Pinion
12 to 1 ratio
11″ tie rod centers

Bellow O.D. Is 2.050″
Stiletto® and earlier Strange bellows were 1.800″
Ensure your vehicle has the necessary clearances

Features
Body
• 6061-T6511 billet aluminum
• .375″ bolt holes on 1.312″ centers
• Black anodized finish

Rack & Pinion Gear
• 4140 chrome moly
• Hardened

Rod Ends
• Stainless steel
• .375″ spherical ball
• Right hand threads

Includes steering shaft weld end

Weighs 2.40 lbs

Related Component
Dragster rack with 14″ centers….. S3442-14
