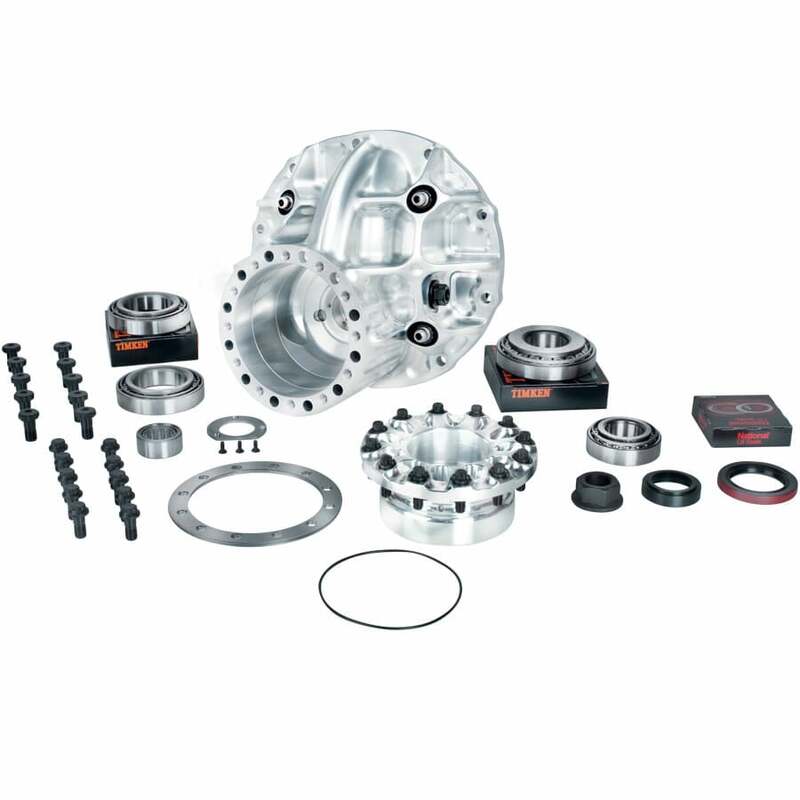

Package Includes N1912PM • 7075-T73 Aerospace aluminum case • Vibratory stressed relieved • Solution heat treated • Type II anodizing • .650″ thick mounting flange •Large oil scavenging channel • Raised cross rib design • Wrap around designed main caps • AISI 8740 steel bullet end main studs • Massive wall sections in tail bearing area • Extensive lightening • Designed & machined by Strange • Material made in the USA N1950AB • 2024-T351 billet aluminum support • For tapered pinion bearings • Designed for 9″ & 9 1/2″ gear sets • Milled for maximum weight reduction • Clear anodized Remaining Components • Timken® front and rear pinion bearings • Rear bearing spacer • One piece solid preload spacer – Machine to fit • Pinion depth shim kit • ARP support bolts and o-ring • Pinion seal and flanged nut • Oversize tail bearing with retainer plate and screws • Timken® side bearings and races • ARP 7/16″ & 1/2″ ring gear bolts
