Strange Ultra Case and Support Package 3.812" Bore Case & Tapered Bearing Support With Installation Kit For 9" or 9 1/2" 28 Spline Pro Gears

Part Number: P3812ST

Application
Drag Racing
High horsepower vehicles

Additional Parts Required
Strange HD 40 spline spool
9″ or 9 1/2″ Pro gear set
28 spline yoke or coupler
Gasket

This Case May Not Fit Your Housing
Please refer to housing clearance diagram

Using 9 1/2″ Gear Set ?
Also check gear diagram

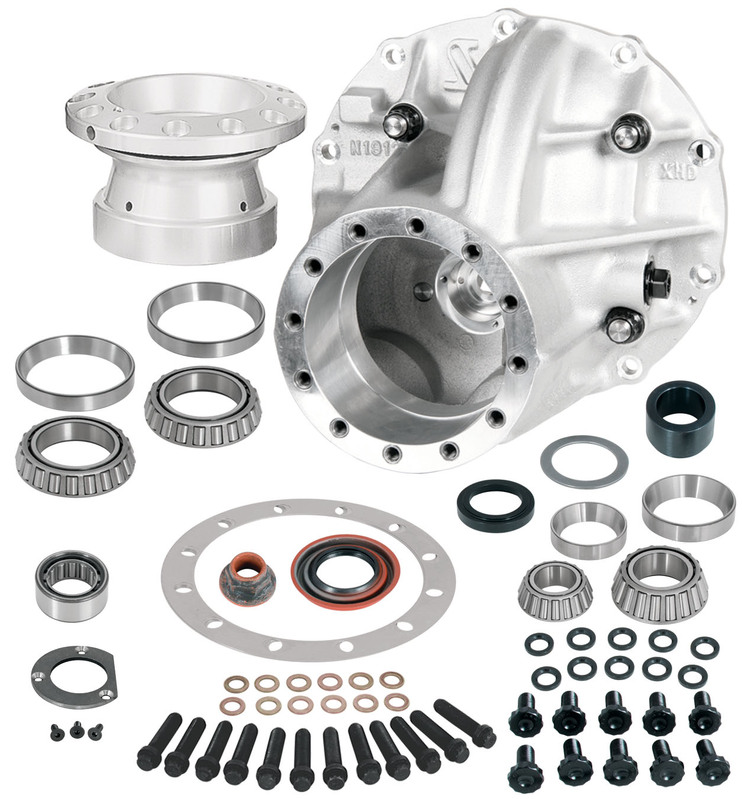

Package Includes

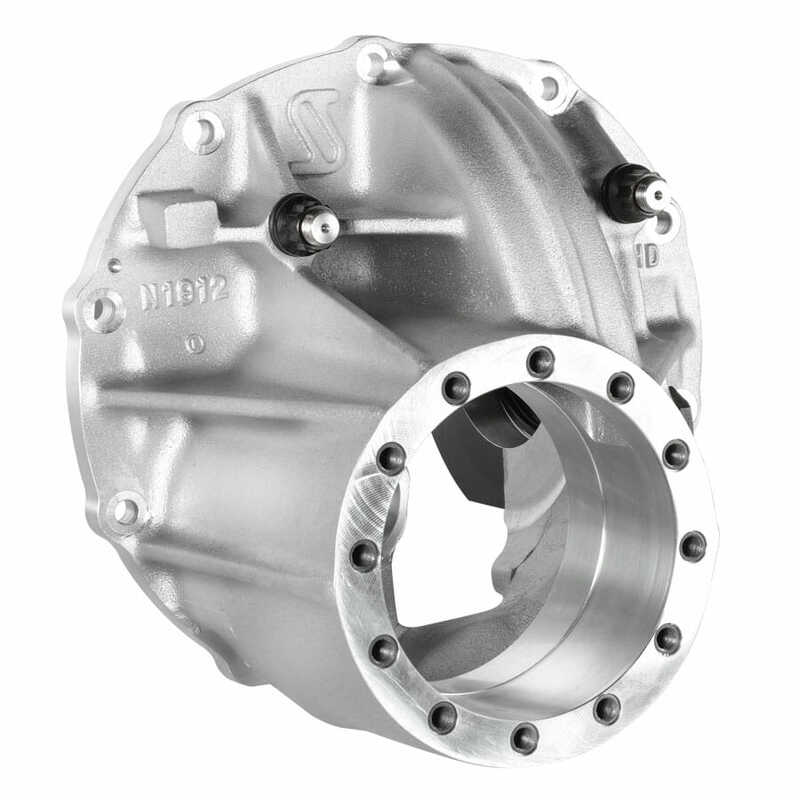

N1912
• Ultra Case 3.812″ bore
• 206-T4 aluminum
• Extra large oil channel
• Critical areas heavily reinforced
• Billet aluminum main caps
• Solid steel adjuster nuts
• Designed & machined by Strange
• Cast in the USA

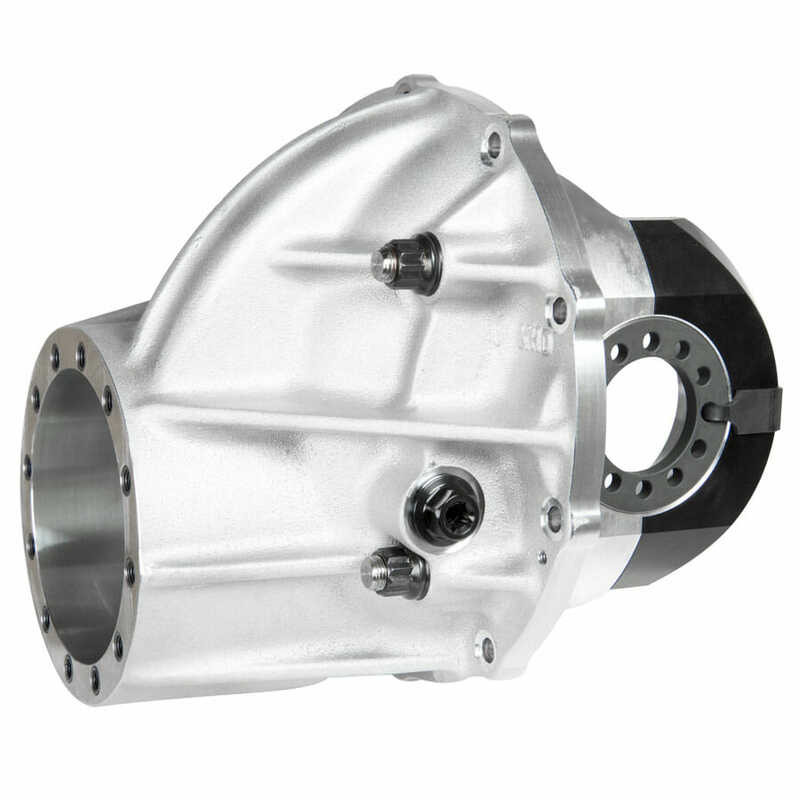

N1950A
• 6061-T6511 billet aluminum tapered bearing support
• Tapped for 5/16″-24 sensor in two locations
• Clear anodized finish

Remaining Components
• Timken® front and rear pinion bearings & races
• One piece solid preload spacer – Machine to fit
• Rear bearing adapter collar
• Rear bearing shim
• Pinion depth shim kit
• Support bolts, washers, and o-ring
• Pinion seal & flanged locking nut
• Oversize tail bearing with retainer plate and screws
• Timken® side bearings and races
• ARP 7/16″ ring gear bolts
