Strange HD Pro Aluminum Case Kits

Strange HD Pro aluminum case kits offer large bore sizes for the highest splined axles. They use superior 206-T4 heat-treated aluminum, which has 12 percent more yield strength and 32 percent higher tensile strength than the commonly used 356-T6; it's also substantially lighter than an iron case. HD Pro kits are designed for drag racing or abusive street/strip applications with high horsepower and torque. They feature a billet pinion support with 360 degree channel to maximize oil flow to the pinion bearing, as well as two contact points with the bore of the case--which holds the pinion shaft more securely for improved bearing and gear life. Their oversized tail bearing handles more load and greater rpm; billet main caps with chromoly studs support the carrier bearings, while significantly reducing ring gear deflection.

Part Number: P3200

Application
Differentials
35 spline

Will Not Fit Wavetrac® Differentials

Spools
Strange 35 or 40 spline

Additional Parts Required
Differential or spool
9″ or 9 1/2″ gear set
Yoke or coupler
Completion kit
Gasket

This Case May Not Fit Your Housing
Please refer to housing clearance diagram

Using 9 1/2″ Gear Set ?
Also check gear diagram

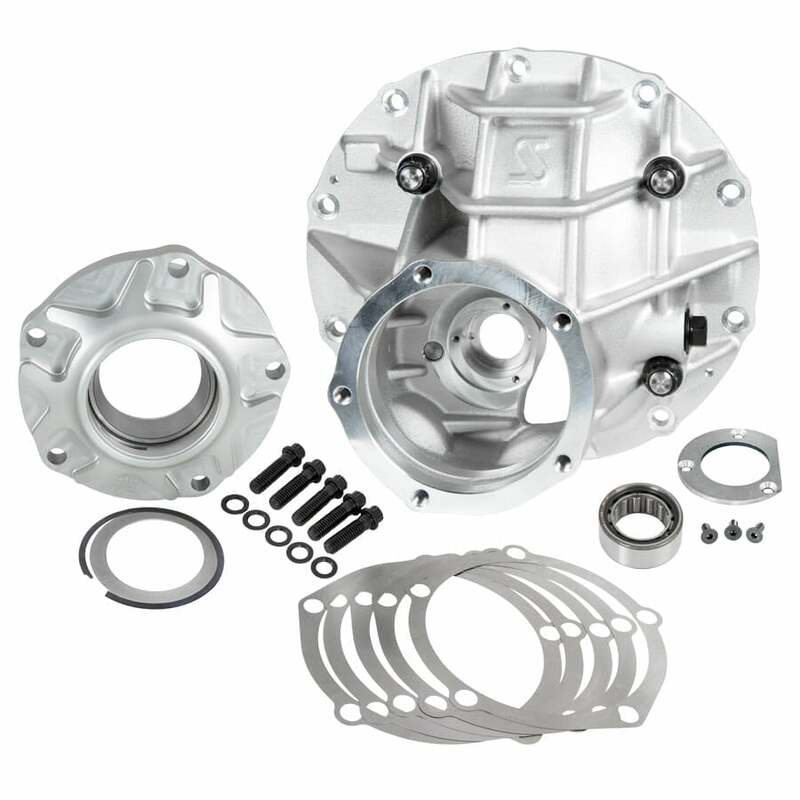

Kit Includes
N2300

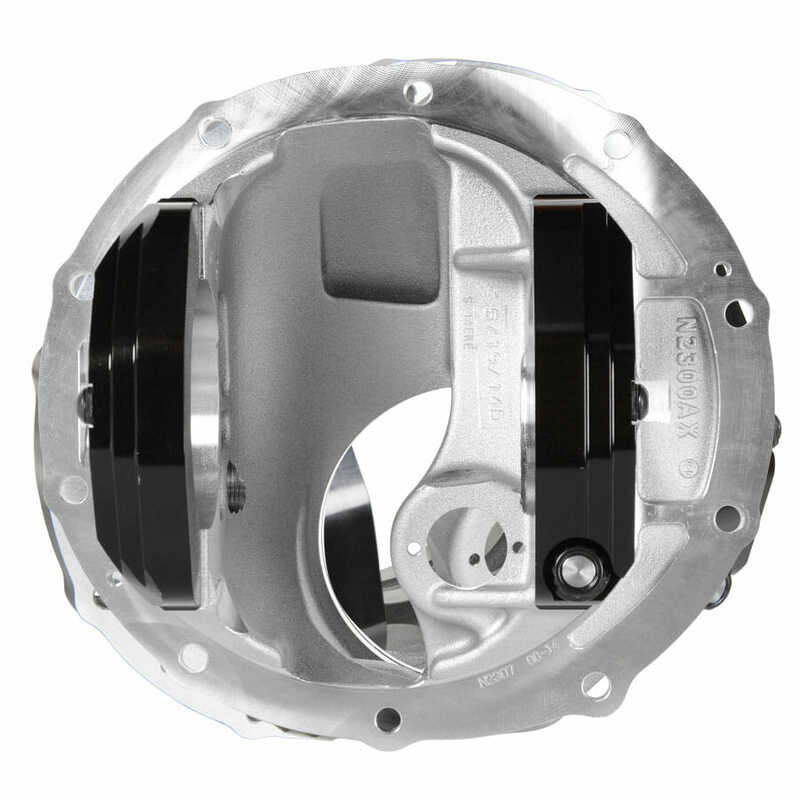

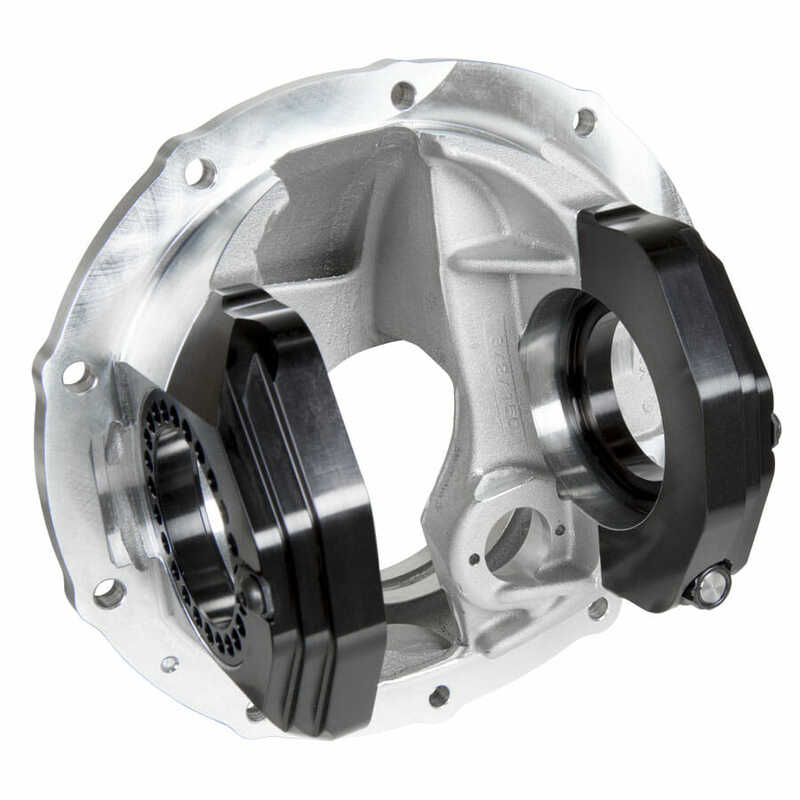

• HD Pro Aluminum 3.062″ bore case
• Billet aluminum main caps
• Solid steel adjuster nuts

N2322

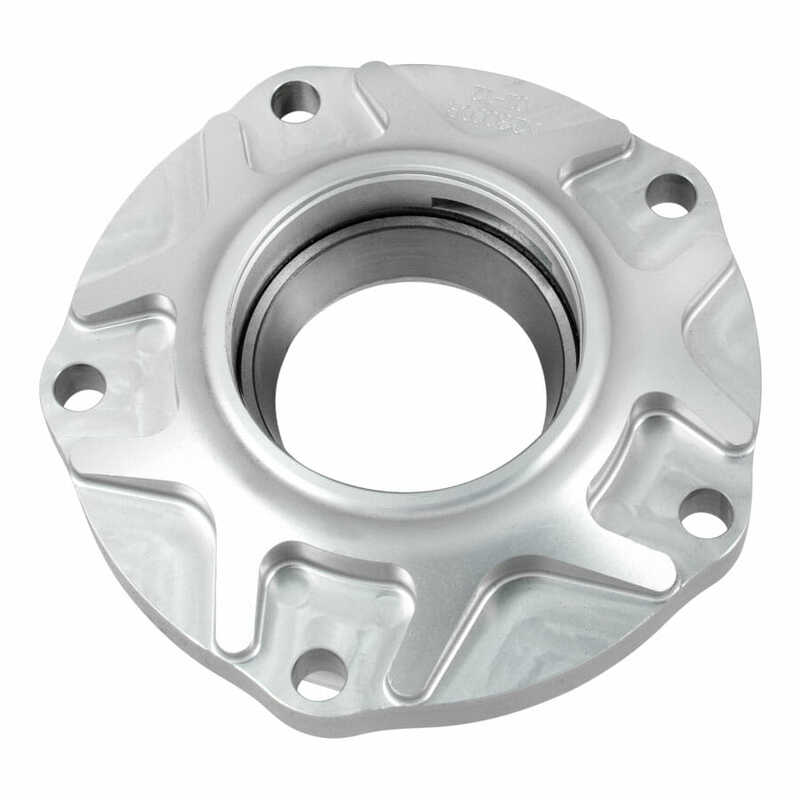

• Forged aluminum tapered bearing pinion support
• Pinion seal retaining plate and snap ring
• Races installed
• Support bolts, washers, and O-ring

Additional Components
• High capacity wide tail bearing
• Retainer plate and screws
• Pinion depth shim kit
