28, 30 and 31 spline alloy axle package

Each Strange forged alloy steel custom axle is manufactured to your exact specifications.

To provide greater flexibility Strange axles are CNC precision machined from premium forged alloy steel then they are induction hardened to resist bending loads. When axles are intended for use in street applications this is very important.

We Cut Before Heat Treatment, Not After.

Strange axles go through an induction hardening process. This specific type of induction hardening is used to treat all Strange alloy steel axles.

This process allows the axles to survive the bending loads associated with street usage. We can not stress enough the importance that Strange Engineering does all of its machine work on the splines prior to heat treatment. This allows for consistent heat treat depth, leading to a stronger axle. Be aware that some companies heat-treat the materials before the splines are machined into the axle, which causes it to be weaker despite the shiny look.

Strange axles are manufactured with a larger than stock axle bearing diameter area (1.563-inch). To minimize stress concentration in the bearing area the Strange axle shoulder is designed to accept a larger radius ring.

Applications

28 Spine axle applications cover; Chevy 10 bolt, Ford 8.8 and Ford 9 in.

30 Spine axle applications cover; Chevy 12 bolt, and Mopar 8 3/4

31 Spine axle applications cover; Ford 8.8 and Ford 9 in.

Part Number: P3102

Alloy axle packages are optimized for street & track use
See our Hy-Tuf axles for maximum torsional strength for all out Drag Racing

Application                 Splines Available
Chevy 8.2 10 bolt…… 28 / 33 **
Chevy 8.5 10 bolt…… 28 / 30 / 33 **
Chevy 12 bolt car…… 30 * / 33 ** / 35 ***
Dana 60…………………. 35 ***
Ford 8.8…………………. 28 / 31 * / 33 ** / 35 ***
Ford 9″…………………… 28 / 31 / 35 ***
Mopar 8 3/4…………… 30 / 35 ***
57-64 Olds/Pontiac… 35 ***

*     Also available in c-clip style axles
**   33 spline Alloy packages…….. P3302
*** 35 spline Alloy packages…….. P3502

Notes For This Axle Package

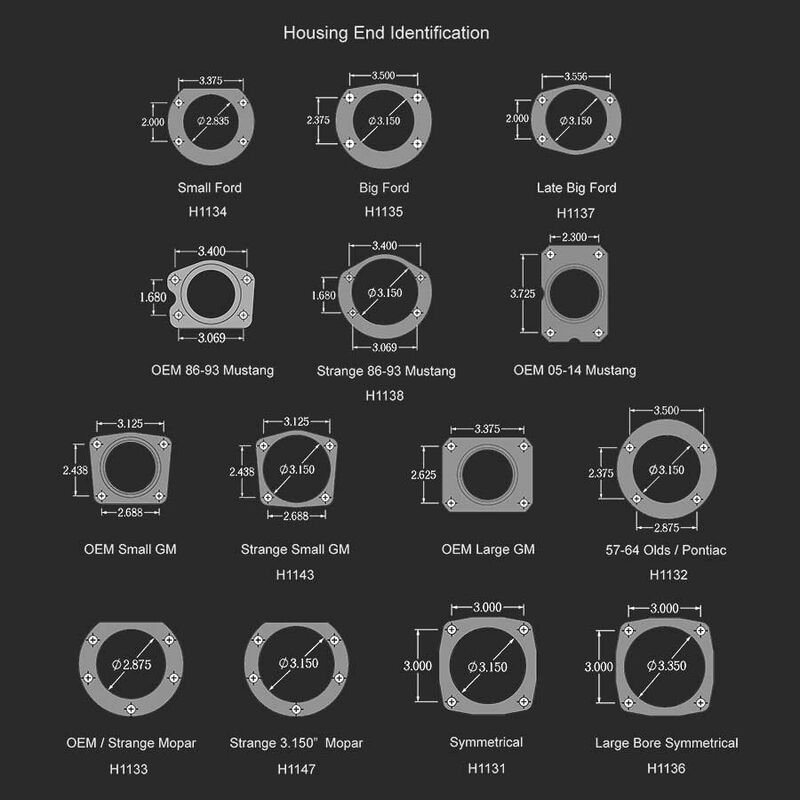

All Chevy & Ford 8.8 require replacement 3.150″ housing ends
Packages with C-clip Eliminator kit for OEM housing ends are shown below

Dana 60 & Mopar 8 3/4″ Using Stock Style Housing Ends
Require packages that include retainer plates listed below

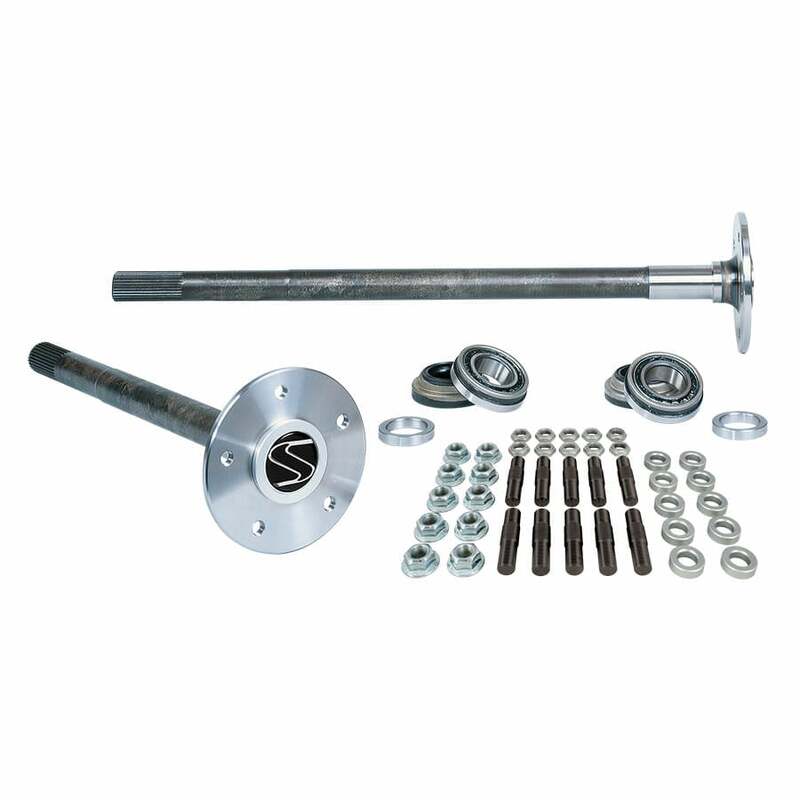

This Axle Package Includes:
Alloy Axles – A3100
• Forged from modified 1550 premium steel
• Majority of machining performed before heat treat to provide consistent hardness
• Induction hardened to Rc 58-62 to increase torsional strength while remaining ductile
• Finish machined after heat treat to ensure accuracy
• Choice of 28 up to 31 spline
• Lengths up to 34 1/2″
• Choice of bolt circle
• Forged in the USA
• Designed and machined by Strange Engineering

Choice of Axle Bearings Maybe Limited To Housing End Type

Timken® Tapered Unit Bearings – A1013
• Designed for use with 3.150″ housing end
• Best for side loading and high mileage
• Includes outer seals and locking collars
Note- May require new retainer plates if originally use a ball style bearing

Sealed Ball Bearings – A1021 / A1023A
• Low friction bearing
• Life reduced during prolonged use
• O.D. grooved for o-ring to eliminate inner axle seal
• Includes o-rings and locking collars

Choice of Press-in or Screw-in Wheel Studs
• Press-in 7/16″-20 or 1/2″-20 OEM style factory length studs – A3130 / A3121 / A3151
• Screw-in 1/2″-20 chrome moly studs in 2″ or 3″ long – A1025 / A1026
• Metric screw-in studs in M12-1.5 x 50mm – A1035
• Screw-in studs include .060″ hardened washers
• Length is measured from underneath the hex of the stud

Options
Install axle bearings…………………. A1008
Access hole or extra bolt circle… A1004

Other 28-31 Spline Alloy Axle Packages
With retainer plates…. P3104
With spool……………….. P3102S / P3104S

Alloy C-clip Style Replacement Axles
GM 12 bolt….. P3020 / P3026
Ford 8.8………. P3110 / P3111 / P3112

Street / Track Axle Packages With C-Clip Eliminator Kit
OEM Chevy car ends in 30, 33, or 35 spline……………… P1011GOT
OEM Ford 8.8 ends in 28 or 31 spline…….. P3109F86 / P3109F94 / P3109F05
OEM Ford 8.8 ends in 35 spline……………… P3509F86 / P3509F94 / P3509F05

Pro Race Axle Packages
With bearings & studs………….. P1007
Including retainer plates………. P1008
