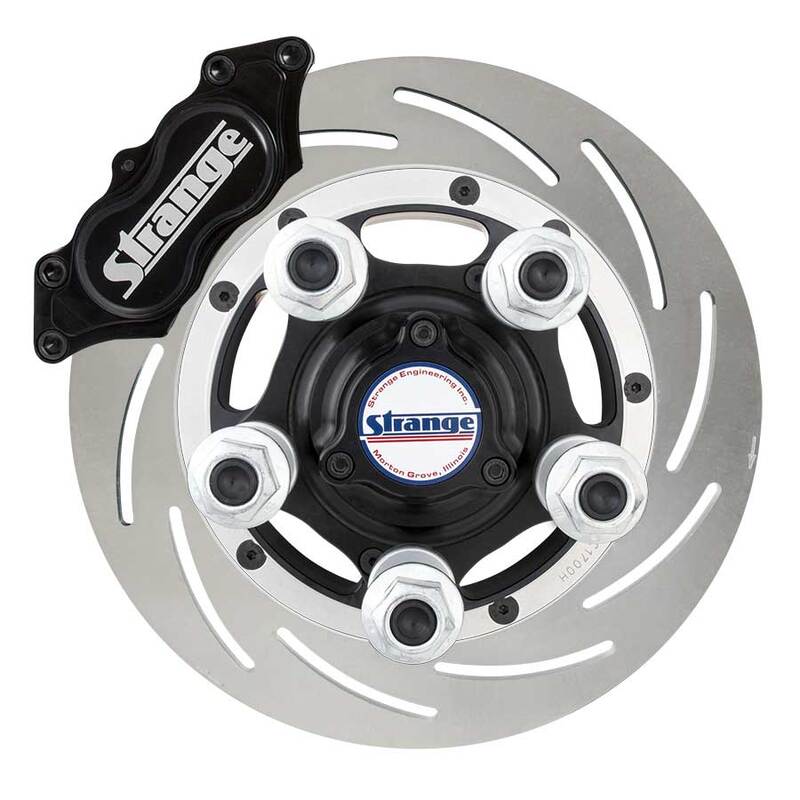

Strange floater kits have become the standard for Pro Mod classes, blown alcohol classes, and other high-horsepower abusive drag racing applications. The Strange floater kits are designed for use with 40-spline axles due to the tremendous increase of torsional strength. Upgrade your floater kit to include the standard brake system, or choose the carbon fiber option for maximum stopping power. Building a 6-second, 230-plus mph race car? Try one of these Strange floater kits and put a bulletproof assembly to the test.

Part Number: F2206

Application – Drag Racing

Requirements
Housing with 3 1/4″ or 3 1/2″ OD tubing
Custom floater axles – Sold Separately

Safety Benefits
Housing supports weight, bending loads, and tire shake
Axle shafts only requirement is to transfer torque
Prevents the possibility of axle flange breakage

Features
Floater Spindles
• 4130 chrome moly
• Machined with large inner bearing radius
• Vastly increases bending load strength
• Provides rigid support for hubs & bearings
• Designed for 3 1/4″ or 3 1/2″ OD housing tubing
• 3.00″ OD tube end *

* Requires finish turning to suit axle tube ID

Spindle Radii Rings
• Mates with large spindle radius
• Creates positive inner bearing seat
• Machined from stainless steel
• Provides corrosion resistant sealing surface

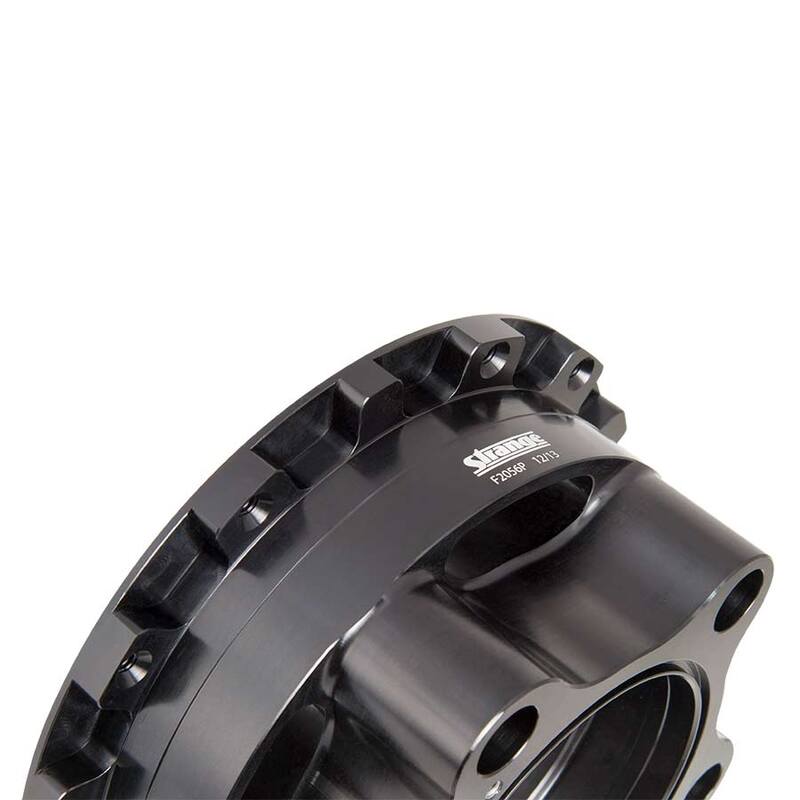

Aluminum Hub / Rotor Adapters
• 2024-T351 billet aluminum
• Machined for 5 1/2″ bolt circle
• Integral cogged rotor mount
• Lug design allows rotors to float
• Allows for thermal expansion
• Black anodized finish

Stainless Steel Rotors – F2056NL / F2056NR
• Highly warpage resistant steel at elevated temperatures
• 11 1/2″ OD
• Directional slots
• Internally cogged

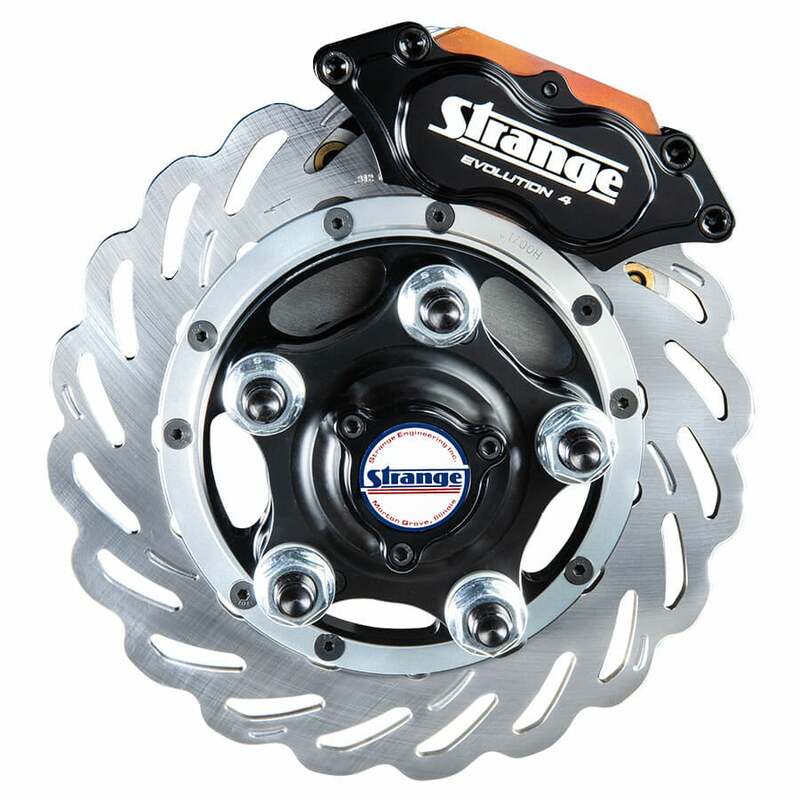

Four Piston Billet Calipers with Stainless Steel Pistons – B1900 / B1900-RD
• Billet aluminum bodies are extremely ridged & reduce weight
• Stainless steel pistons are corrosion resistant
• All pistons are 1.750″ to provide maximum clamping force
• Choice of black or red finish

Choice of Brake Pads
• Hard – B5020
• Soft – B5010

Caliper Mounts
• 6061-T6511 aluminum
• Clear anodized
• 3/8″-24 press nuts installed

Press-in Wheel Studs
• 8740 chrome moly
• Anti-rotational designed head
• .6865″ shank / 5/8″-18 threads
• Two lengths available *

* Please supply wheel thickness

Lug Nuts
• Flanged steel nuts
• Includes aluminum anti-marring washers

Steel Drive Plates
• 8620 hardened steel
• Scalloped design removes unnecessary weight
• Designed for 40 spline shaft with 45° pressure angle *
• Black oxide finish

* Inner axle splines can be made to suit other spools

Timken® Tapered Bearings & Races
• Premium components from a trusted name
• Ensures proper fit & long bearing life

Solid Preload Spacer
• Prevents excessive preload
• Maintains consistency

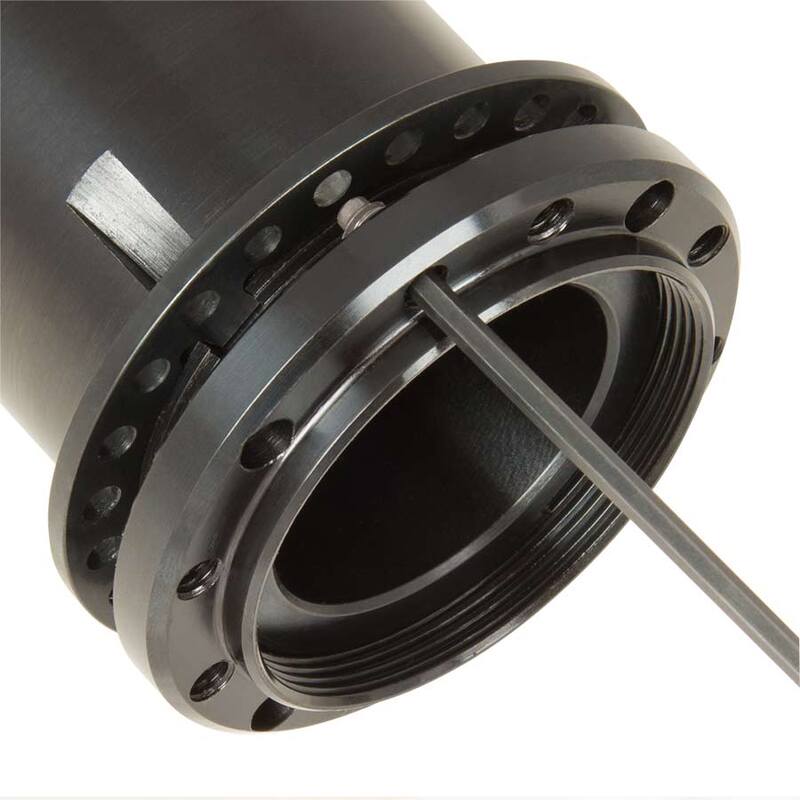

Spindle Nut Retention System
• Heat treated spindle nut tapped for set screws
• Twin tab nut retainer securely engages spindle
• Dog point set screws prevent nut rotation
• Ensures proper bearing preload is maintained

Mounting Hardware
• All premium grade
• Provides safety and security

Other Floater Kits
Steel
4 3/4″ bolt circle…….. F22064
5″ bolt circle…………… F22065

Carbon
4 3/4″ bolt circle….. F22064WC
5″ bolt circle………… F22065WC
5 1/2″ bolt circle……. F2206WC
