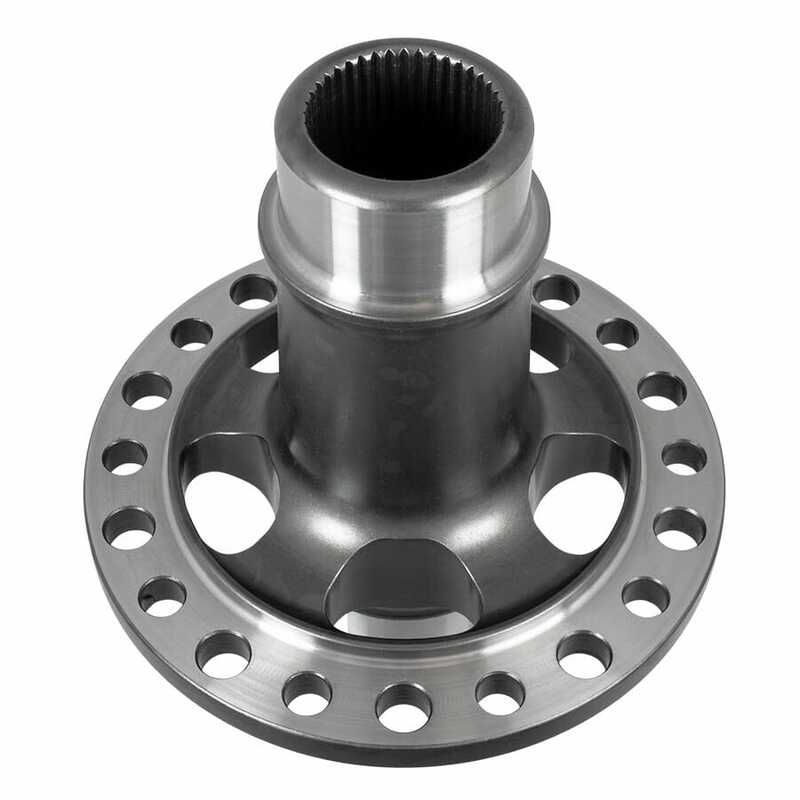

Strange Lightweight Pro Race Spools

Strange Lightweight Pro Race spools give you the traction that you need by locking the axle shafts together, forcing your rear tires to turn at the same speed. They're CNC-machined from forged chromoly steel to provide a more rigid ring gear mounting. This eliminates the gear failure caused by case deflection or differential side-gear failure. For even lighter weight, there are aluminum-alloy versions available for some applications.

Part Number: D2002

Application – Ford 9″

Description
HD Pro Series Spool
For 40 spline axles
Fits 3.812″ bore aftermarket case

Features
• Machined from 8620 forged steel
• Lightened to reduce rotating weight
• Bearing journal increased to 2.250″ for additional strength
• Broached 40 spline with 45° pressure angle
• Critical dimensions left oversize prior to heat treatment
• Heat treated for further gains in strength
• Finish machining after heat treat to bring surfaces within specifications
• Designed and machined by Strange Engineering
• Forged in the USA

Weighs 8.25 lbs

Lightweight Pro Series Steel Spools Carry A Limited Lifetime Warranty

Related Components
Spool Bearings
For 3.812″ bore case…………………………….. D1592

Cases
HD Pro case kit…………………………………….. P3207
Ultra case kit………………………………………… P3812LT
Billet case kit………………………………………… P5381LT

Pro Race Axle & Spool Package
With solid axles…………………………………….. P2017
With gun-drilled axles…………………………… P2015
