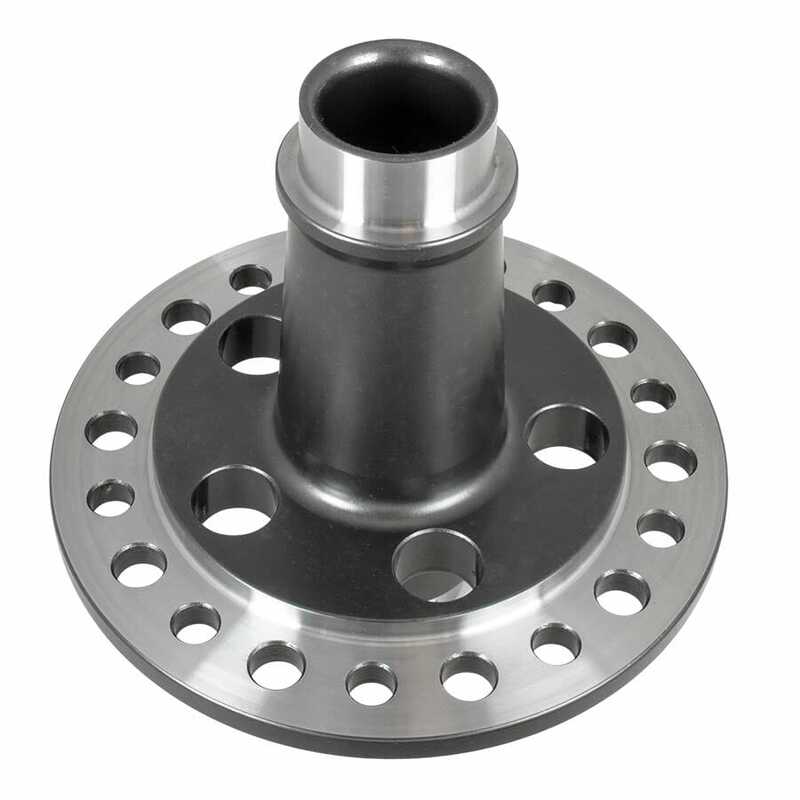

Strange Lightweight Pro Race Spools

Strange Lightweight Pro Race spools give you the traction that you need by locking the axle shafts together, forcing your rear tires to turn at the same speed. They're CNC-machined from forged chromoly steel to provide a more rigid ring gear mounting. This eliminates the gear failure caused by case deflection or differential side-gear failure. For even lighter weight, there are aluminum-alloy versions available for some applications.

Part Number: D1555

Application – Ford 9″

Description
Pro Series Spool
For 35 spline axles
Fits 3.250″ bore aftermarket case

Features
• Machined from 8620 forged steel
• Lightened to reduce rotating weight
• Broached 35 spline with 30° pressure angle
• Same spline locations as OEM differential
• Critical dimensions left oversize prior to heat treatment
• Heat treated for further gains in strength
• Finish machining after heat treat to bring surfaces within specifications
• Designed and machined by Strange Engineering
• Forged in the USA

Weighs 8.20 lbs

Lightweight Pro Series Steel Spools Carry A Limited Lifetime Warranty

Related Components
Spool Bearings
For 3.250″ bore case…………………………….. D1590

Cases
S-Series………………………………………………… N2206
Pro Iron………………………………………………… N1906

L/W Aluminum……………………………………… N1904
HD Pro Aluminum…………………………………. P3203

Alloy Axle & Spool Package
With 1/2″ studs……………………………………… P3502S
With 5/8″ studs……………………………………… P350258S

With retainer plates & 1/2″ studs………….. P3504S
With retainer plates & 5/8″ studs………….. P350458S

Pro Race Axle & Spool Package
With 1/2″ studs……………………………………… P2007
With 5/8″ studs……………………………………… P200758

With retainer plates & 1/2″ studs………….. P2005
With retainer plates & 5/8″ studs………….. P200558

Complete Installation Kits
For OEM standard pinion support………… R5235 / R5235WR
For Daytona & N1917 pinion support…… R5236 / R5236WR
For N1922 support & 28 spline pinion….. R5237 / R5237WR
For N1922 support & 35 spline pinion….. R5238 / R5238WR
