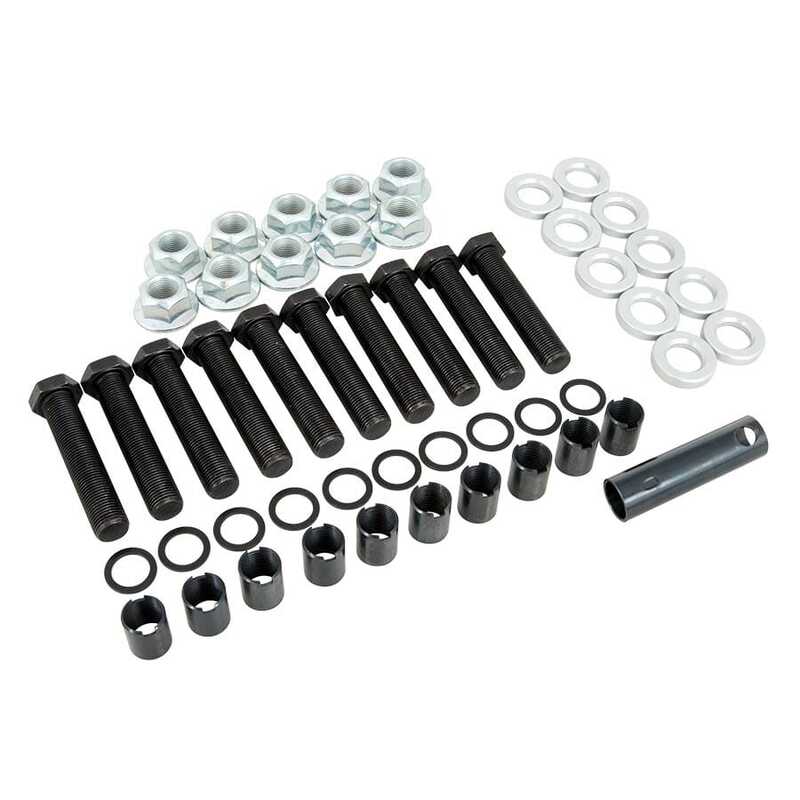

5/8″-18 x 3″ Grade 8 Fully Threaded Bolts
– Threads are rolled for maximum strength
– Thin .200″ hex head provides additional clearance
– Length is measured from underneath the head of the stud
– 7/8″ wrench size

.0625″ Hardened Washers
– Prevents galling
– Ensures hex remains true to backside of axle flange

.687″ OD x .875″ Stud Sleeves
– Provides proper diameter & surface to pilot wheel
– Internal 5/8″-18 threads to secure stud and prevent movement
– Notched for installation

Sleeve Installation Wrench
– Fits notch on sleeve to simplify installation

.250″ Wide Aluminum Washers
– Reduces marring on wheel face from flanged lug nut
– Keeps lug nut from bottoming-out on stud sleeve *

5/8″-18 Flanged Lug Nuts
– Provides secure clamping force
– 15/16″ wrench size

* Rotor hat & wheel thickness will determine proper washer width
– Sleeve length should exceed combination but not beyond washer
– Additional sleeves are available- A1027C
