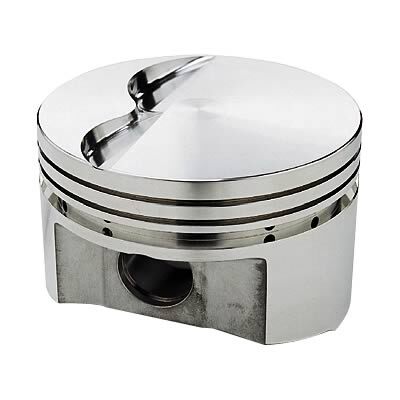

SRP, Ford, Small Block Ford, 4.030 in. Bore, 1.100 CD, Flat Top, 8 Cyl. Piston Kit

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.

  • Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
  • Dedicated forging helps optimize strength and weight throughout the piston design
  • Perfect for street/strip applications
  • Forced pin oiling for improved pin lubrication
  • Made 100% in the USA
Piston Series

SRP

Cylinder Head

SMALL BLOCK FORD 20 DEG

Bore Diameter

4.030 IN

Piston Head Type

Flat

Compression Height

1.100 IN

Piston Volume

-5.00 CC

Piston Material

4032

Forging Type

FSR

Piston Average Weight

421 GR

Ring Set Included

No

Top Compression Ring Thickness

0.0640 IN

Second Compression Ring Thickness

0.0640 IN

Oil Ring Thickness

0.218 IN

Wrist Pin Material

5115 Low Carbon Steel, Case Hardened

Wrist Pin Length

2.750 IN

Wrist Pin Wall Thickness

0.150 IN
