Learn All About Sonnax Slip Yokes
How to Measure a Slip Yoke
Measure OE slip yoke with a precision tool to determine which Sonnax yoke you need. Centerline to end length, journal size and U-joint series are critical dimensions requiring accurate measurements.

Some slip yokes have missing splines — include the missing spline in your count or count the splines on the transmission output shaft.
Also check if the OE yoke has a counterbore and whether the transmission tail housing uses a bushing or roller bearing.

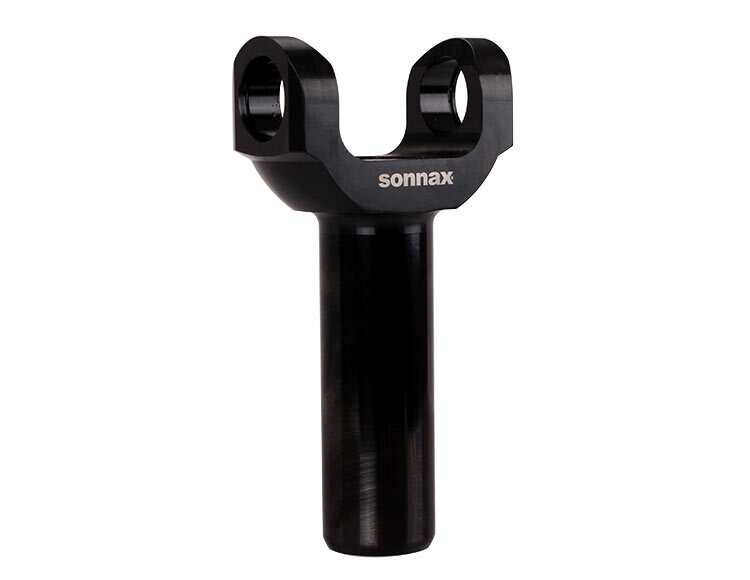

  • Material: Forged Chromoly
  • Counter Bore (Y/N): N
  • Spline Type: Full
  • U-Joint Series: 1350
  • Weight: 2.930lbs
  • Centerline to End Length: 6.630"
  • Spline Tooth Count: 30
  • Journal Dia.: 1.680"
  • Barrel Length: 4.760"
