Learn All About Sonnax Slip Yokes
How to Measure a Slip Yoke
Measure OE slip yoke with a precision tool to determine which Sonnax yoke you need. Centerline to end length, journal size and U-joint series are critical dimensions requiring accurate measurements.

Some slip yokes have missing splines — include the missing spline in your count or count the splines on the transmission output shaft.
Also check if the OE yoke has a counterbore and whether the transmission tail housing uses a bushing or roller bearing.

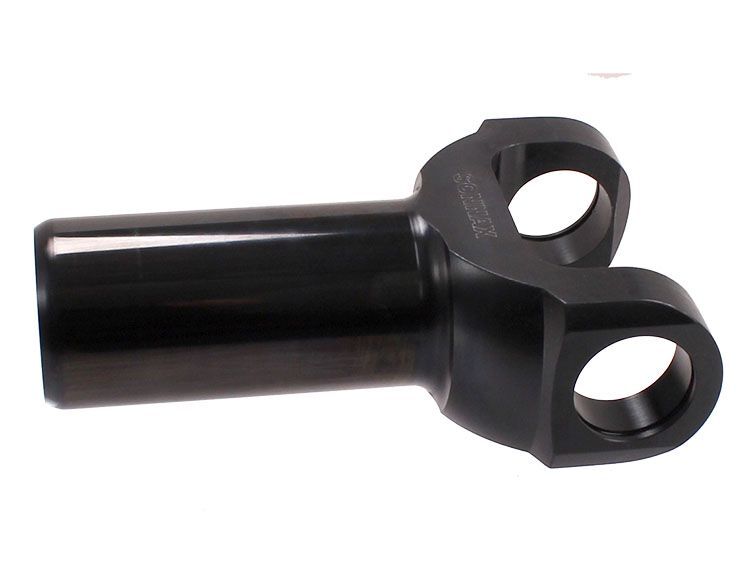

  • Counter Bore (Y/N): No
  • Spline Type: Full
  • U-Joint Series: 1350
  • Material: Forged Chromoly
  • Spline Tooth Count: 32
  • Journal Dia.: 1.886"
  • Centerline to End Length: 5.500"
  • Weight: 3.060lbs
  • Barrel Length: 3.880"
