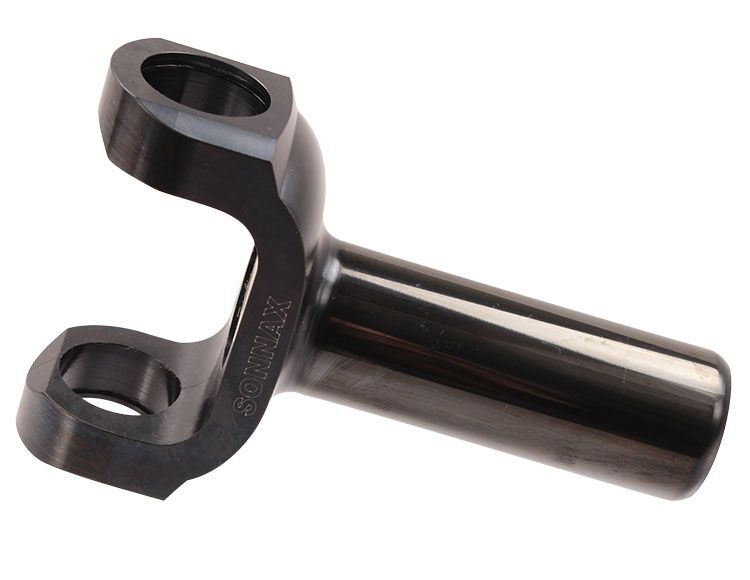

Learn All About Sonnax Slip Yokes
How to Measure a Slip Yoke
Measure OE slip yoke with a precision tool to determine which Sonnax yoke you need. Centerline to end length, journal size and U-joint series are critical dimensions requiring accurate measurements.

Some slip yokes have missing splines — include the missing spline in your count or count the splines on the transmission output shaft.
Also check if the OE yoke has a counterbore and whether the transmission tail housing uses a bushing or roller bearing.


A Spline Count
B Journal Dia.
C Centerline to End Length
D Barrel Length
E U-Joint Width*
F U-Joint Cap Diameter*

*U-joint bores in yoke will be slightly larger than the actual U-joint dimensions given in the chart below.



.ac1fa45b-03bd-4bb2-a5a2-1bf6724c2224,.b55e201e-84c9-4018-a612-f824398d76fc{fill:none;}.b55e201e-84c9-4018-a612-f824398d76fc{stroke:#000;stroke-linecap:round;stroke-linejoin:round;}.e5b3787c-bbad-4c33-8547-6d9dc1eaaec6{fill:#fdad1d;}.bfab1e0f-2d78-4846-8ec3-59bf20e8f3c3{font-size:26.64px;fill:#fff;font-weight: bold;}.a072ba5c-7c0a-4939-9b5d-778f187c2612{font-size:22.58px;fill:#231f20;font-weight: bold;}

ASpline Count


.a3c70d64-be64-437e-b50c-7219166e000e,.b069e2e8-1924-41a6-8085-d435f144e78c,.e0754724-c4c1-4be7-bdbc-28b9cb2c1b20,.e547f0c4-9527-46cc-a061-f202e03a5a4b,.e5c27517-a102-48f9-a29e-0d18a8334a63,.e8d40fef-16a9-43db-ab3a-ec7339003fbb{fill:none;}.a3c70d64-be64-437e-b50c-7219166e000e,.e5c27517-a102-48f9-a29e-0d18a8334a63,.e8d40fef-16a9-43db-ab3a-ec7339003fbb{stroke:#000;stroke-linecap:round;stroke-linejoin:round;}.e5c27517-a102-48f9-a29e-0d18a8334a63{stroke-width:0.51px;}.e8d40fef-16a9-43db-ab3a-ec7339003fbb{stroke-width:0.71px;}.a6a1932d-bc59-41a8-833e-be86825817ff,.e078a2b7-21fe-4a48-87a2-ed6bb2a1a4e6{font-size:21.31px;fill:#231f20;}.a6a1932d-bc59-41a8-833e-be86825817ff{font-weight: bold;}.e0754724-c4c1-4be7-bdbc-28b9cb2c1b20,.e547f0c4-9527-46cc-a061-f202e03a5a4b{stroke:#fdad1d;stroke-width:2px;}.a47671b7-5a48-40a8-9542-4249c47b3877{fill:#fdad1d;}.e547f0c4-9527-46cc-a061-f202e03a5a4b{stroke-dasharray:8;}.f5cd62b4-7f26-4853-9ccc-dd2ab6098113{font-size:26.64px;fill:#fff;font-weight: bold;}

CCenterline to End Length CounterboreBBarrel LengthDJournalDiameter

.af003229-1d6e-4777-bf54-725d6271cc92,.bef0c242-7c10-47fe-8bfc-4ba86eb48c2d,.ede2cfed-a386-48fa-9663-4f2f527d0b2e{fill:none;}.ede2cfed-a386-48fa-9663-4f2f527d0b2e{stroke:#000;stroke-linecap:round;}.af003229-1d6e-4777-bf54-725d6271cc92,.ede2cfed-a386-48fa-9663-4f2f527d0b2e{stroke-linejoin:round;}.af003229-1d6e-4777-bf54-725d6271cc92{stroke:#fdad1d;stroke-width:2px;}.be395dc0-cbf2-4286-975b-8e08b489492f{fill:#fdad1d;}.bae39b2f-4461-4785-9e15-8ab7ad62a67e{font-size:26.64px;fill:#fff;font-weight: bold;}.f7d12498-7585-4380-9604-f32b902d159d{font-size:21.31px;fill:#231f20;font-weight: bold;}

FEU-Joint SeriesE = U-Joint WidthF = U-Joint Cap Diameter




How to Determine a U-Joint Series



U-Joint Series
E
U-Joint Width (inches)
F
U-Joint Cap Diameter (inches)


3R
2.562
1.125

1310
3.219
1.062

1330
3.622
1.062

1350
3.622
1.188

1410
4.188
1.188

1480
4.188
1.375

1485
4.178
1.375

1550/1555
4.964
1.375 outside snap rings


Measure the inside snap ring, indicated on the diagram as G.

.b7f35fa7-58be-4076-ba9f-350c96128a21,.ba063f09-fcb0-4107-b399-4659bf5b6e59,.eca652c5-9fe4-46b4-adf4-9bf65de104c8,.f20611a3-acef-44ce-b600-1554a1a763fe{fill:none;stroke-linejoin:round;}.f20611a3-acef-44ce-b600-1554a1a763fe{stroke:#000;stroke-linecap:round;}.b7f35fa7-58be-4076-ba9f-350c96128a21,.ba063f09-fcb0-4107-b399-4659bf5b6e59{stroke:#fdad1d;}.b7f35fa7-58be-4076-ba9f-350c96128a21,.ba063f09-fcb0-4107-b399-4659bf5b6e59,.eca652c5-9fe4-46b4-adf4-9bf65de104c8{stroke-width:2px;}.ba063f09-fcb0-4107-b399-4659bf5b6e59{stroke-dasharray:8;}.eca652c5-9fe4-46b4-adf4-9bf65de104c8{stroke:#999;}.ba99cc64-dd78-4f7d-9fd3-ea513b4dc4e7{fill:#999;}.bb597b31-de56-4660-803f-236f092e9e88{fill:#fdad1d;}.fdfe7102-076c-4229-a4c3-94b2a3cf6e27{font-size:26.64px;fill:#fff;font-weight:bold}

FGE

Need help choosing a slip yoke? Watch this video.
