Constant oscillation of the converter clutch regulator valve creates wear in the valve body bore. Also, the small plug separating this regulator valve and the inboard coast clutch valve oscillates due to opposing spring and oil forces, creating bore wear and a path for oil pressure to exhaust. Excessive wear at these areas prevents regulated line pressure from supplying the converter clutch with apply and release pressures, causing converter complaints and setting 628 and 1741 codes.

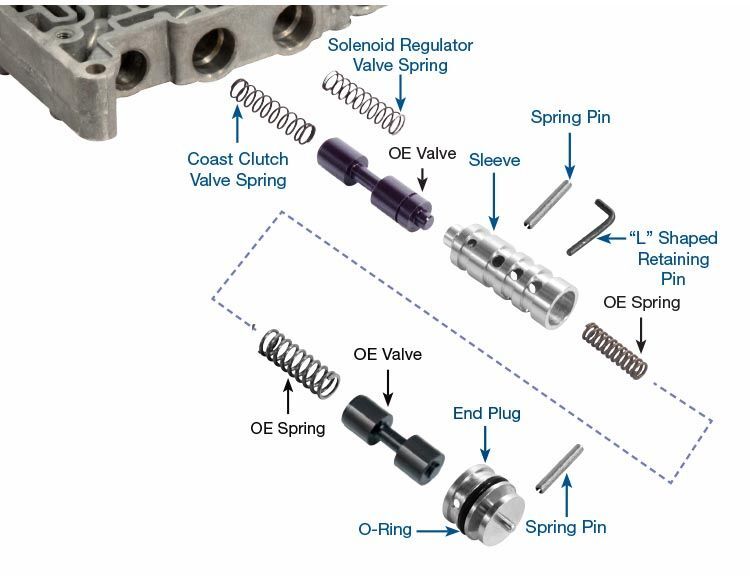

Sonnax TCC regulator sleeve kit 37947-09K mates with the OE anodized aluminum valve or our 37947-38 replacement valve. Use of this sleeve allows the valve bore to be oversized, and the hydraulic integrity of the bore to be restored. The sleeve design also incorporates the middle end plug, preventing future bore wear at this location. An O-ringed outboard end plug is also supplied to maintain proper balance line pressure and ensure the proper stroking of the regulator valve.

Specially toleranced alloy aluminum sleeve is significantly more wear-resistant than the cast aluminum valve body
Alloy aluminum sleeve provides more contact surface with the valve for increased stability and durability
Alloy aluminum sleeve incorporates the troublesome middle end plug to prevent wear that results in no 4th Gear
O-ringed outboard end plug has more contact area and a positive seal for better maintenance of balance line pressure
Kit includes a replacement solenoid regulator valve spring and coast clutch valve spring, which are often damaged during valve body disassembly
The kit includes lube modification plugs for repeated 1741 codes and TCC slippage concerns
Sleeve can be used with OE original or Sonnax replacement valve 37947-38
