Stop worrying about input shaft failure when running the GM Powerglide in the most extreme applications. Sonnax offers the only big input shaft upgrade with custom components designed to work together for reliable performance. Whether you have an existing assembly or start from scratch in the gear ratio of your choice, it’s the best way to connect huge power to Sonnax Extreme planetaries for great run after run with minimum downtime.

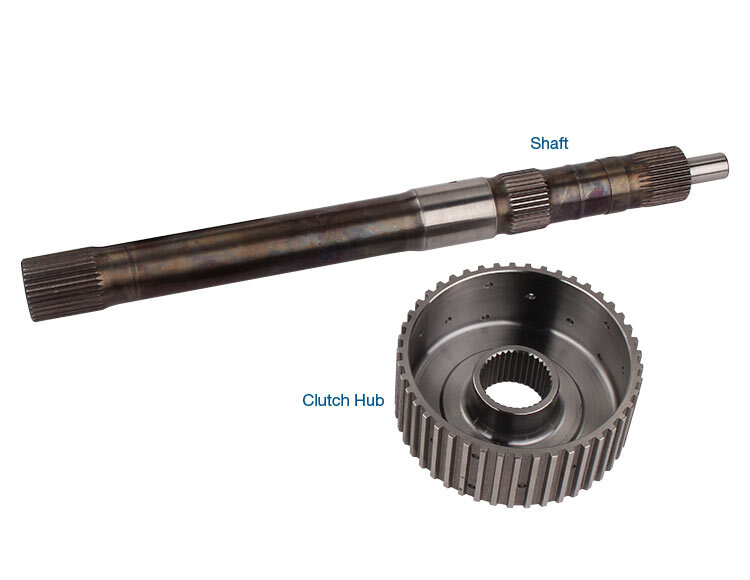

The only way to prevent twist and breakage from massive torque is to increase the input shaft diameter, and the core of the big shaft system is big input shaft kit 353532-01K. The shaft strikes the perfect balance between strength and ease of installation with a 1-1/8” dia. and a unique, high-strength spline that still fits through the front sun gear. It delivers 35% more strength than standard 1” shafts, a dramatic upgrade for racers that want to take full advantage of the lightweight and efficient Powerglide transmission.
Big Shaft Features

Torsional, ringless design
Heat-treated, 300M steel with advanced processing
35 Splines (AOD-style) at converter

Clutch Hub Features

1.500" Tall hub for use with 10-clutch setups
High-strength chromoly steel
Custom fit for the big shaft

How to Select the Right Components for a Big Shaft System
Question 1: What gear ratio do you want to run, 1.58, 1.65, 1.69 or 1.80?
Question 2: Do you already have a Sonnax Extreme planetary assembly?

If YES: Upgrade your existing assembly by ordering the big input shaft kit, stator tube kit and a Extreme rear sun gear kit (components #1, #2 and #3).
If NO: Order all five big shaft system components in the gear ratio of your choice.


1
Big Input Shaft Kit
353532-01K

2
Big Shaft Stator Tube Kit
28154S-125

3
Big Shaft Rear Sun Gear Kit


?1.58 Ratio
15832-RSK


?1.65 Ratio
16532-RSK


?1.69 Ratio
16932-RSK


?1.80 Ratio
18032-RSK

4
Extreme Planetary Assembly Kit


?1.58 Ratio
28158G-NS


?1.65 Ratio
28165G-NS


?1.69 Ratio
28169G-NS


?1.80 Ratio
28180G-NS

5
Extreme Strength Output Shaft


?32-Spline, Long (1.58/1.65 Ratios)
28924-32L


?27-Spline, Long (1.58/1.65 Ratios)
28924-27L


?27-Spline, Short (1.58/1.65 Ratios)
28924-27S


?32-Spline, Long (1.69/1.80 Ratios)
28922-32L


?27-Spline, Long (1.69/1.80 Ratios)
28922-27L


?27-Spline, Short (1.69/1.80 Ratios)
28922-27S
