The function of the actuator feed limit (AFL) valve is to provide regulated pressure to shift solenoids. Wear in the AFL bore causes low clutch pressure and results in transmission slips/harsh shifts. This eventually leads to a loss of 4th through 6th Gears, and finally the loss of transmission function.

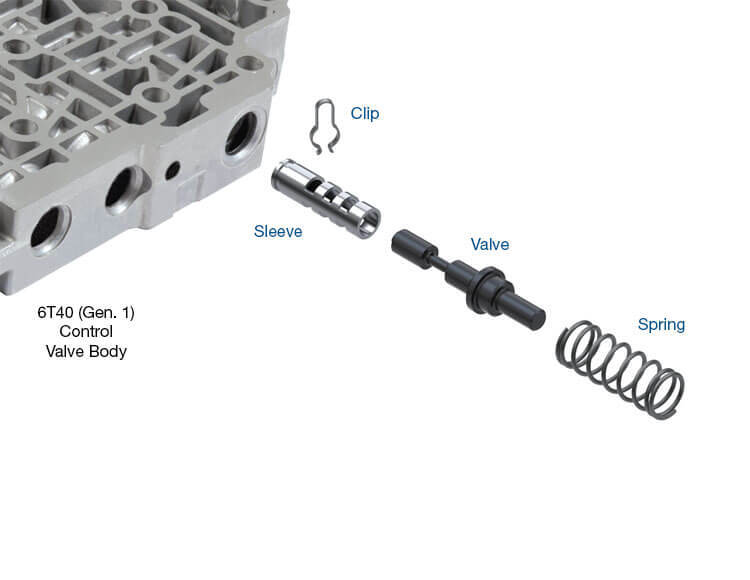

Installing Sonnax actuator feed limit valve kit 144740-39K renews the hydraulic integrity of this circuit, restoring normal shift operation and feel in all ranges for GM Gen. 1 and Gen. 2 6T30/40/45/50 and 6T35/31/41/46/51 (Gen. 3 6T40) units. This drop-in sleeve/valve assembly provides a new and unworn bore for hydraulic sealing of the valve while the sleeve seals off existing moderate bore wear to prevent fluid loss. A new spring to provide correct limit pressure with the sleeve/valve assembly is also provided.

Hardcoat anodized aluminum valve combats premature bore wear
Highly wear-resistant, billet sleeve seals bore from wear-related fluid loss and provides a new, unworn bore for the valve to operate within
New spring provided for correct limit pressure
Drill and plug included to allow for quick rerouting of balance oil at the separator plate
Drop-in Zip Valve™ parts install quickly and easily

Learn More About Zip Valve™ Drop-In Repairs
