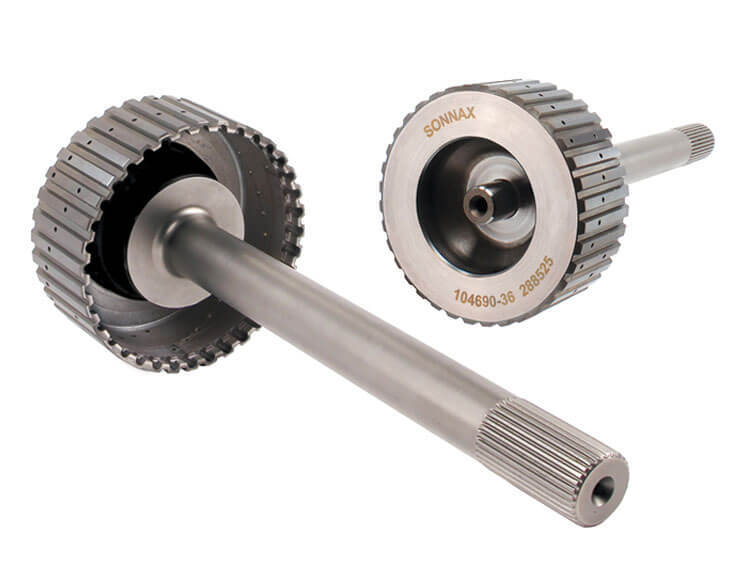

An essential upgrade for any hard-working GM 6L90 transmission, Sonnax heavy duty 4-5-6 clutch hub and intermediate shaft 104690-36 guarantees maximum protection against shaft breakage and clutch failure in any vehicle pushing stock components to the limit.
In place of the two-piece shaft/hub, Sonnax uses a much stronger, one-piece design that eliminates the OE assembly’s weak, welded connection.
The one-piece design is custom forged from ultra high-strength 300M billet steel, then heat treated and shot peened for added durability. This combination of features guards against broken 4-5-6 hubs and the risk of rear splines shearing off — chronic failures in performance cars and trucks as well as heavy commercial vehicles.
The 4-5-6 clutch is released in 1st, 2nd and 3rd Gears, and at high RPMs, constant oil flow is required across the clutch frictions to prevent heat build-up and damaged clutches. The unique upgraded design of the Sonnax hub doubles oil flow to the clutches for significantly more protection against heat build-up and clutch failure, especially compared to other aftermarket shafts that reduce oil flow.
6L90 transmissions also have a tendency to chirp/squawk on the 3-4 shift when the 4-5-6 clutch applies. Unlike aftermarket, two-piece shafts that increase the risk of noise by eliminating the OE dampener, the heavy-duty Sonnax hub/shaft can be used with the dampener.

Rugged, one-piece design eliminates the weak connection where two-piece hub/shaft assemblies fail
High-strength, 300M steel forging is heat-treated and shot-peened for maximum durability
Doubles oil flow to the clutch pack for greatly improved resistance to heat and longer clutch life
Designed for use with OE dampeners to minimize risk of chirp/squawk
Use with stock clutches
