Application Notes
  • For GM 7.625 in. (10 Bolt)
  • 26 Spline
  • For Open Differential
  • w/o Towing Option
  • For Carriers With One Large and One Small Window

Specifications:
  • Axle Shaft Diameter
  • 1.16 (Inch)
  • Differential Case Design Type
  • GM 7.625
  • Spline Quantity
  • 26
  • Taxonomy A: Differential LD
  • Taxonomy B: Differential Lockers & Spools
  • Taxonomy C: GM 7.625
  • Taxonomy D: Drop-in Lockers
  • Type
  • Open

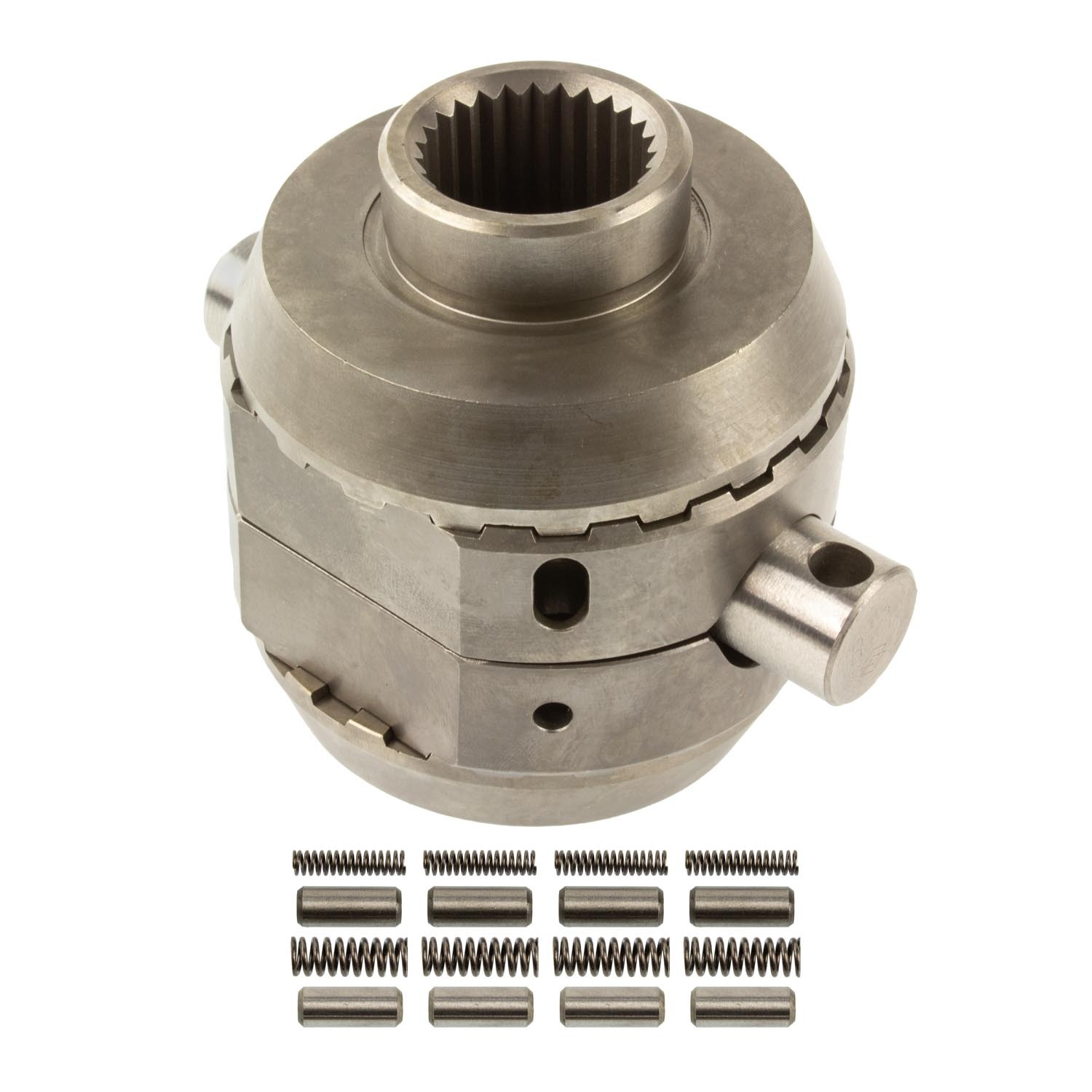

Powertrax® Lock-Right performance lockers’ straight-line performance is equal to a solid spool axle, yet they automatically unlock during turns. When extreme traction output and high-strength are required, racers, hot-rodders and muscle car owners chose Lock-Right lockers! Best suited for extreme off-road to severe on-road use, Powertrax lockers replace the spider gears in your differential carrier without affecting your ring and pinion settings. The whole job can be done in your driveway with common hand tools in a couple of hours. A carrier is not included.
  • Brute Force Devices For Rugged Applications
  • Replacement Of Differential Case Not Required
  • Ring And Pinion Setup Not Altered
  • Installs Easily In Front/Rear Or Both
  • Proven In Most Demanding Applications

    Vehicle Applications
    • 1973 – 1975 Buick Apollo
    • 1977 – 1981 Buick Century
    • 1991 – 1996 Buick Commercial Chassis
    • 1976 – 1985 Buick Electra
    • 1977 – 1983 Buick Estate Wagon
    • 1975 – 1985 Buick LeSabre
    • 1977 – 1979 Buick Opel
    • 1977 – 1987 Buick Regal
    • 1977 – 1978 Buick Riviera
    • 1991 – 1996 Buick Roadmaster
    • 1975 – 1979 Buick Skylark
    • 1987 – 1990 Cadillac Brougham
    • 1982 – 1984 Cadillac DeVille
    • 1982 – 1990 Cadillac Fleetwood
    • 1985 – 2005 Chevrolet Astro
    • 1995 – 2001 Chevrolet Blazer
    • 1982 – 2002 Chevrolet Camaro
    • 1977 – 1987 Chevrolet El Camino
    • 1973 – 1983 Chevrolet Malibu
    • 1978 – 1988 Chevrolet Monte Carlo
    • 1982 – 2004 Chevrolet S10
    • 1983 – 1994 Chevrolet S10 Blazer
    • 1992 – 2005 GMC Jimmy
    • 1982 – 1990 GMC S15
    • 1983 – 1991 GMC S15 Jimmy
    • 1985 – 2005 GMC Safari
    • 1991 – 2004 GMC Sonoma
    • 1991 GMC Syclone
    • 2006 – 2010 Hummer H3
    • 2009 – 2010 Hummer H3T
    • 1981 – 1995 Isuzu Pickup
    • 1991 – 2002 Isuzu Rodeo
    • 1977 – 1984 Oldsmobile 98
    • 1991 – 1994 Oldsmobile Bravada
    • 1996 – 2004 Oldsmobile Bravada
    • 1977 – 1979 Oldsmobile Custom Cruiser
    • 1977 – 1981 Oldsmobile Cutlass
    • 1985 – 1987 Oldsmobile Cutlass
    • 1978 – 1979 Oldsmobile Cutlass Calais
    • 1980 – 1983 Oldsmobile Cutlass Cruiser
    • 1977 – 1979 Oldsmobile Cutlass Salon
    • 1977 – 1979 Oldsmobile Cutlass Supreme
    • 1977 – 1985 Oldsmobile Delta 88
    • 1976 – 1979 Oldsmobile Omega
    • 1990 – 1994 Plymouth Legend
    • 1975 – 1986 Pontiac Bonneville
    • 1975 – 1981 Pontiac Catalina
    • 1977 – 2002 Pontiac Firebird
    • 1978 – 1980 Pontiac Grand Am
    • 1977 – 1983 Pontiac Grand LeMans
    • 1977 – 1987 Pontiac Grand Prix
    • 1977 – 1978 Pontiac Grand Safari
    • 1977 – 1981 Pontiac Laurentian
    • 1977 – 1981 Pontiac LeMans
    • 1977 – 1986 Pontiac Parisienne
    • 1977 – 1979 Pontiac Phoenix
    • 1976 – 1977 Pontiac Ventura
