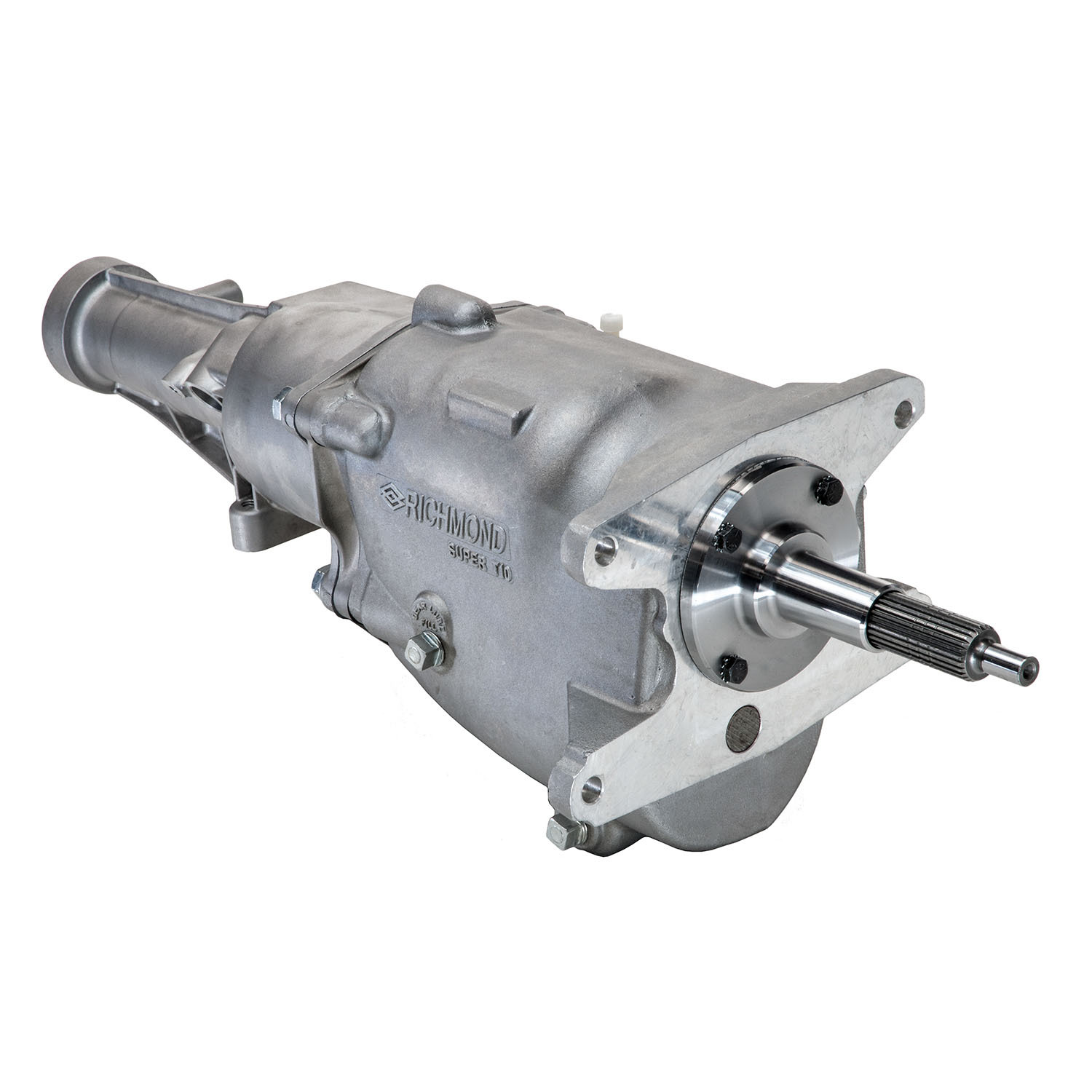

Richmond Gear Super T-10s are 4-speed countershaft helical gear transmissions synchronized in all forward gears. First and reverse are constantly meshed to prevent gear clash. Strut-type synchronizers are provided for longer life and easier shifting. The T-10s are used in applications for performance-type automobiles and light trucks. The Richmond Super T-10 transmissions are packed with power and speed!

Specifications:

  • First Gear Ratio: 3.42
  • Fourth Gear Ratio: 1.00
  • Input Shaft Diameter: 1.125 (Inch)
  • Input Shaft Spline Quantity: 26
  • Maximum Torque: 286 (Foot Pounds)
  • Oil Capacity: 2.4 (Pint)
  • Oil Type: 80w90 GL-4
  • Output Shaft Diameter: 1.375 (Inch)
  • Output Shaft Spline Quantity: 32
  • Reverse First Gear Ratio: 3.51
  • Second Gear Ratio: 2.28
  • Taxonomy A: Manual Transmission LD
  • Taxonomy B: Complete Transmissions
  • Taxonomy C: Richmond Super T10
  • Third Gear Ratio: 1.46
  • Transmission Model: Richmond Super T-10 4-Speed

Fitment:
