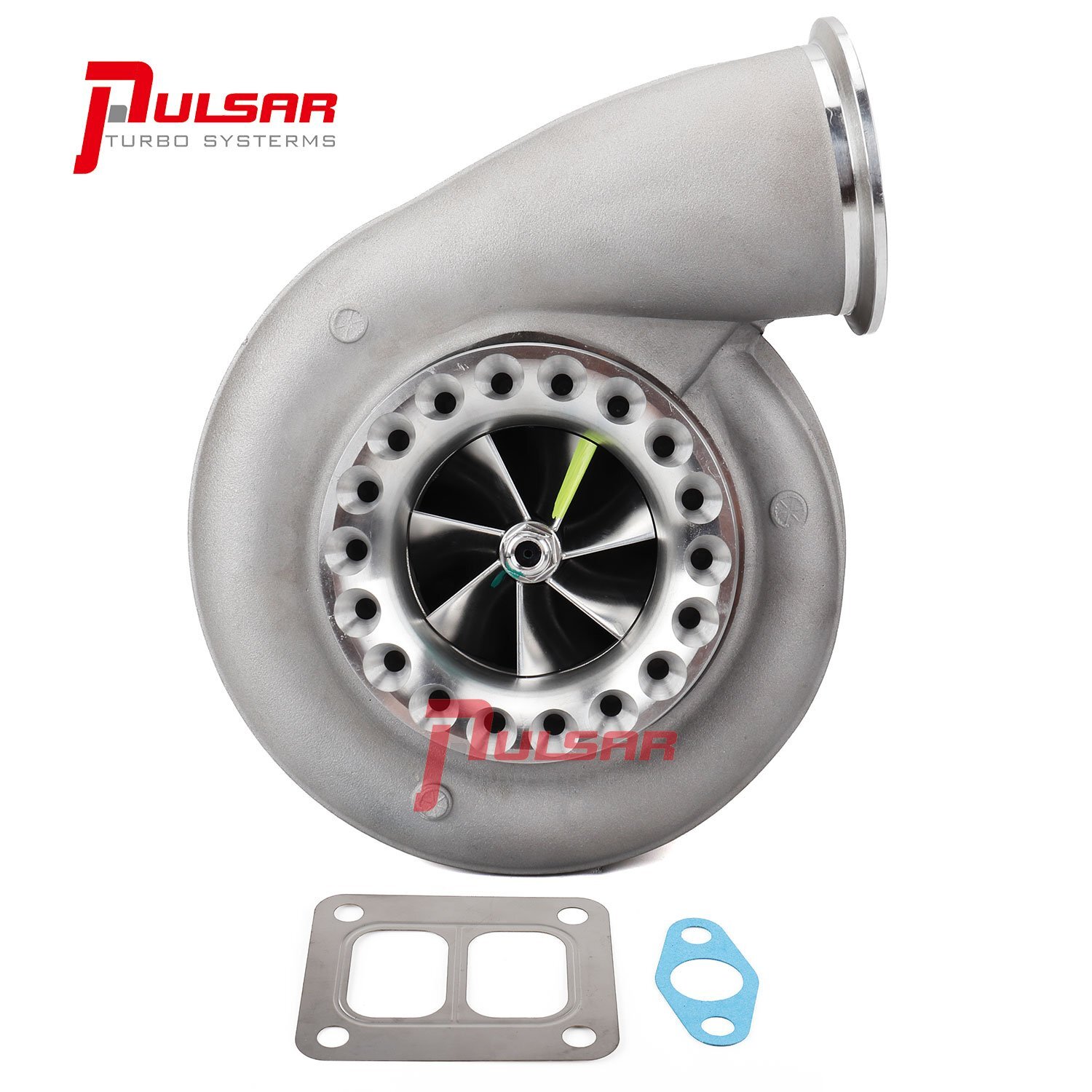

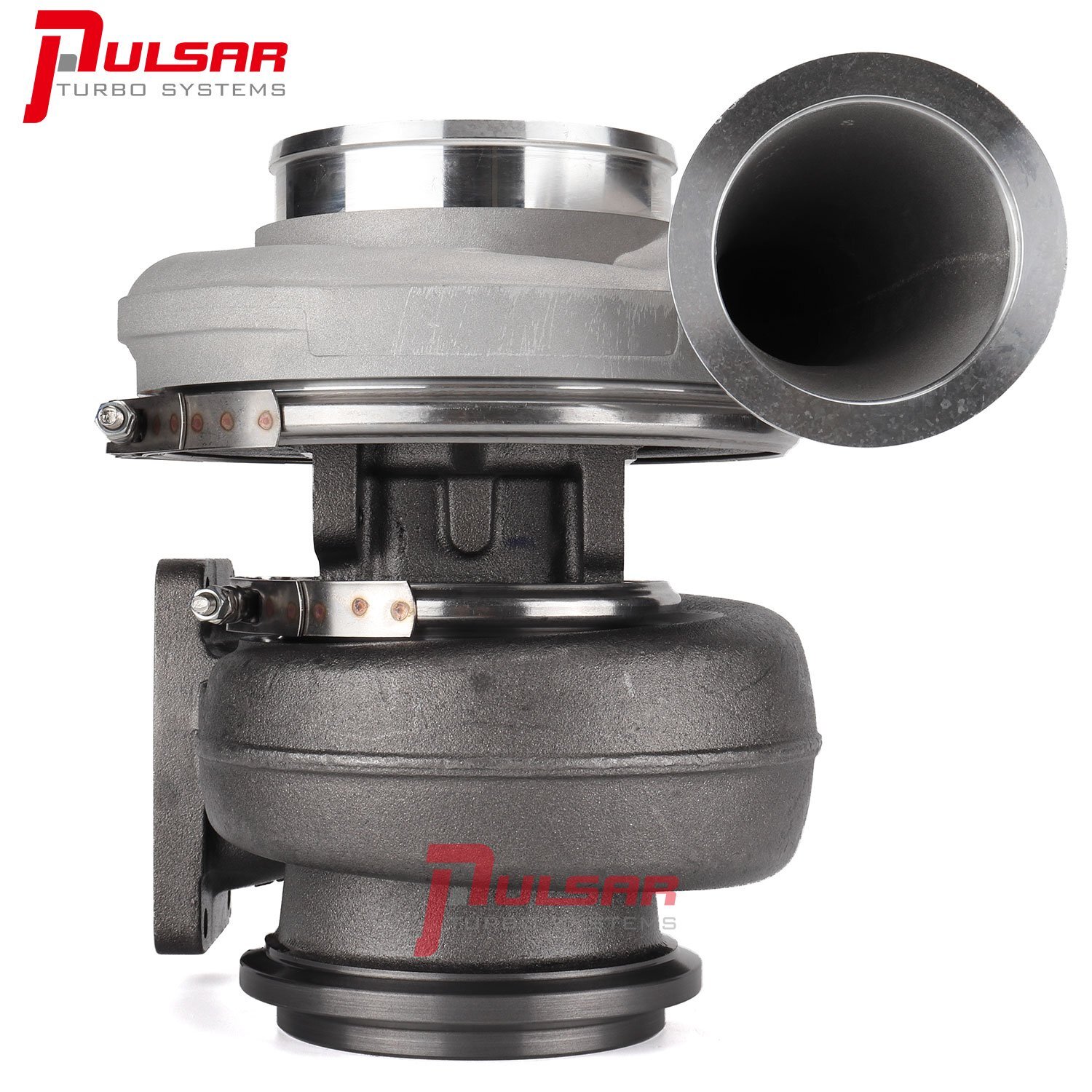

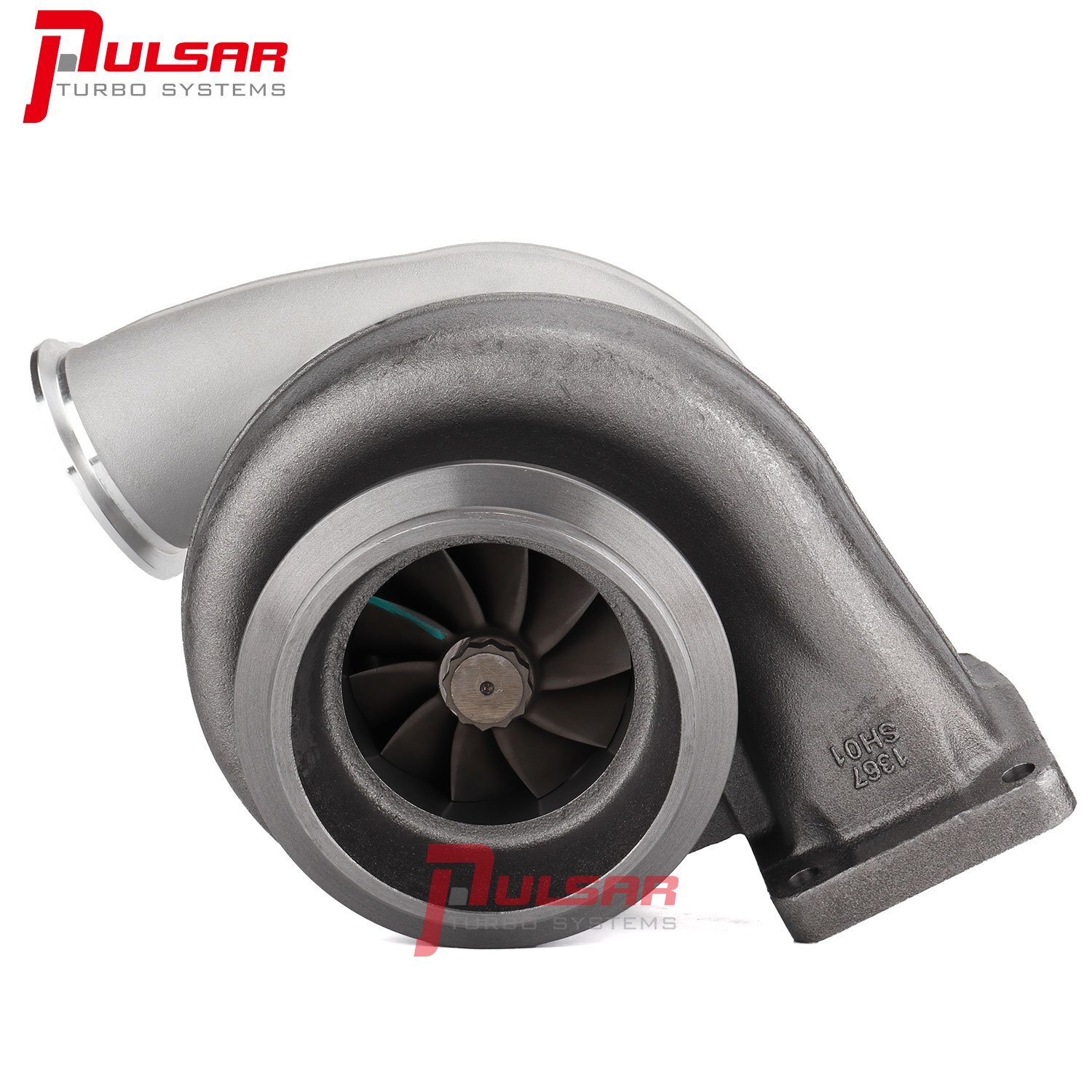

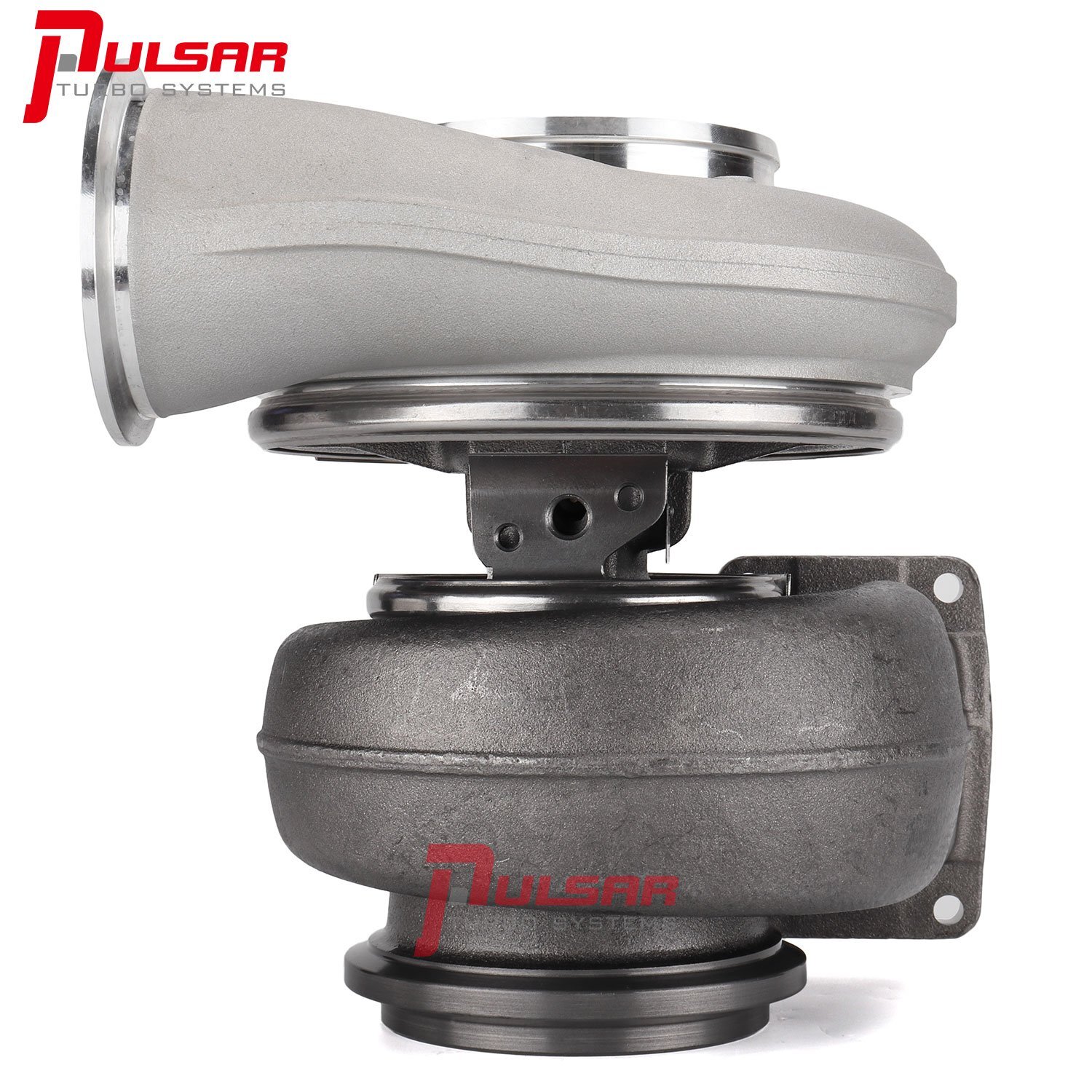

7+7 blades 80*113mm billet compressor wheel with extended tip technology for the ultimate in aerodynamics S400 96*88mm Inconel 713 turbine wheel for high-temperature operation T6 Divided turbine housings in 1.32A/R or 1.58 A/R with 5in V Band Outlet 5.75 OD Marmon flange T4 Divided turbine housing in 1.25 A/R 0r 1.10 A/R Compressor flow rated at 120 lb/min capabilities ranging from 750 to 1400 horsepower Compressor Wheel: 80*113mm Turbine Wheel: 96*88mm or 83*74mm Compressor Inlet: 5in Hose Compressor Outlet: V-Band Turbine Inlet: T6 or T4 Turbine Outlet: 5.75in Marmon(T6) or 4in V-Band(T4) Oil Feed: 1/4 NPT Oil Drain: Std T6 Drain Flange
