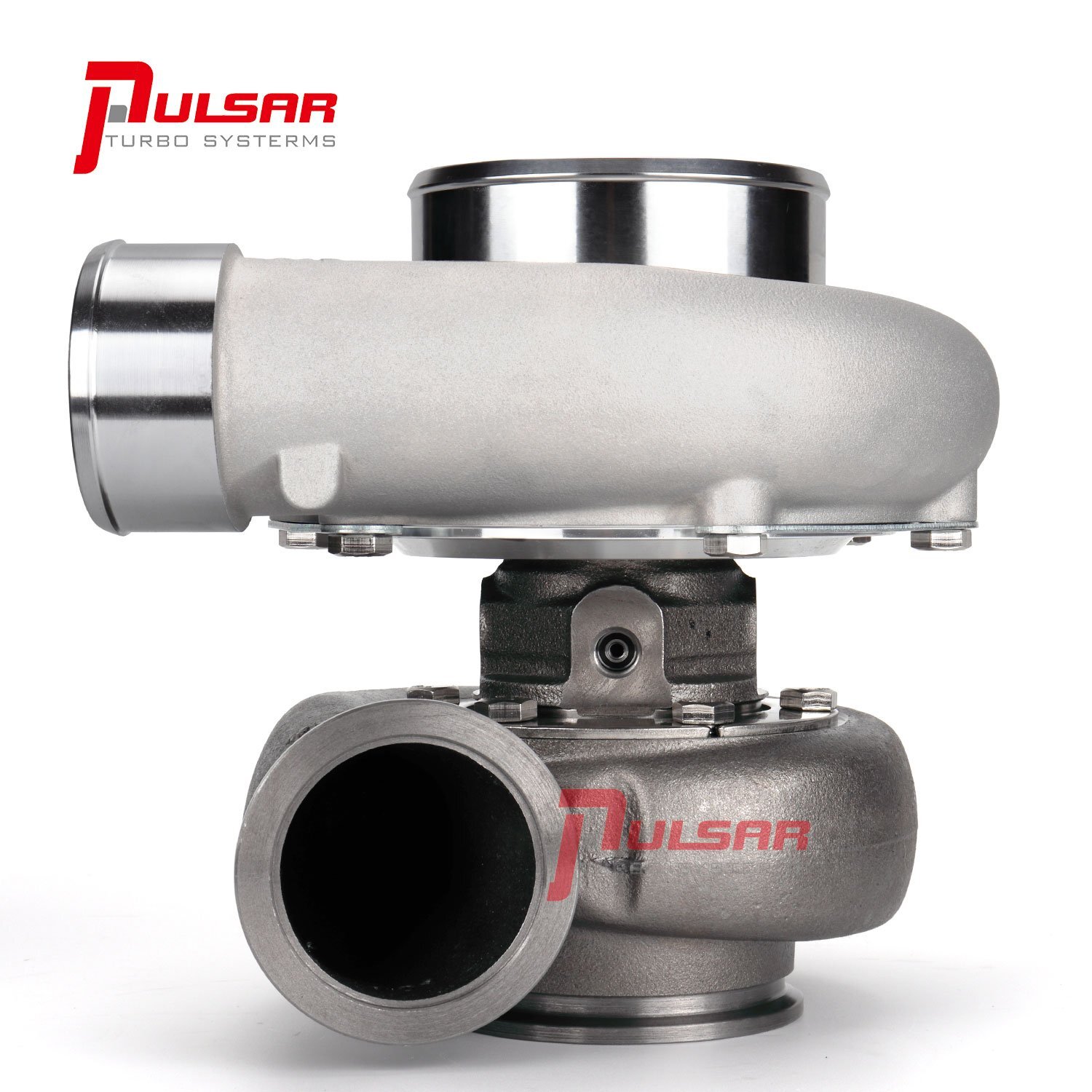

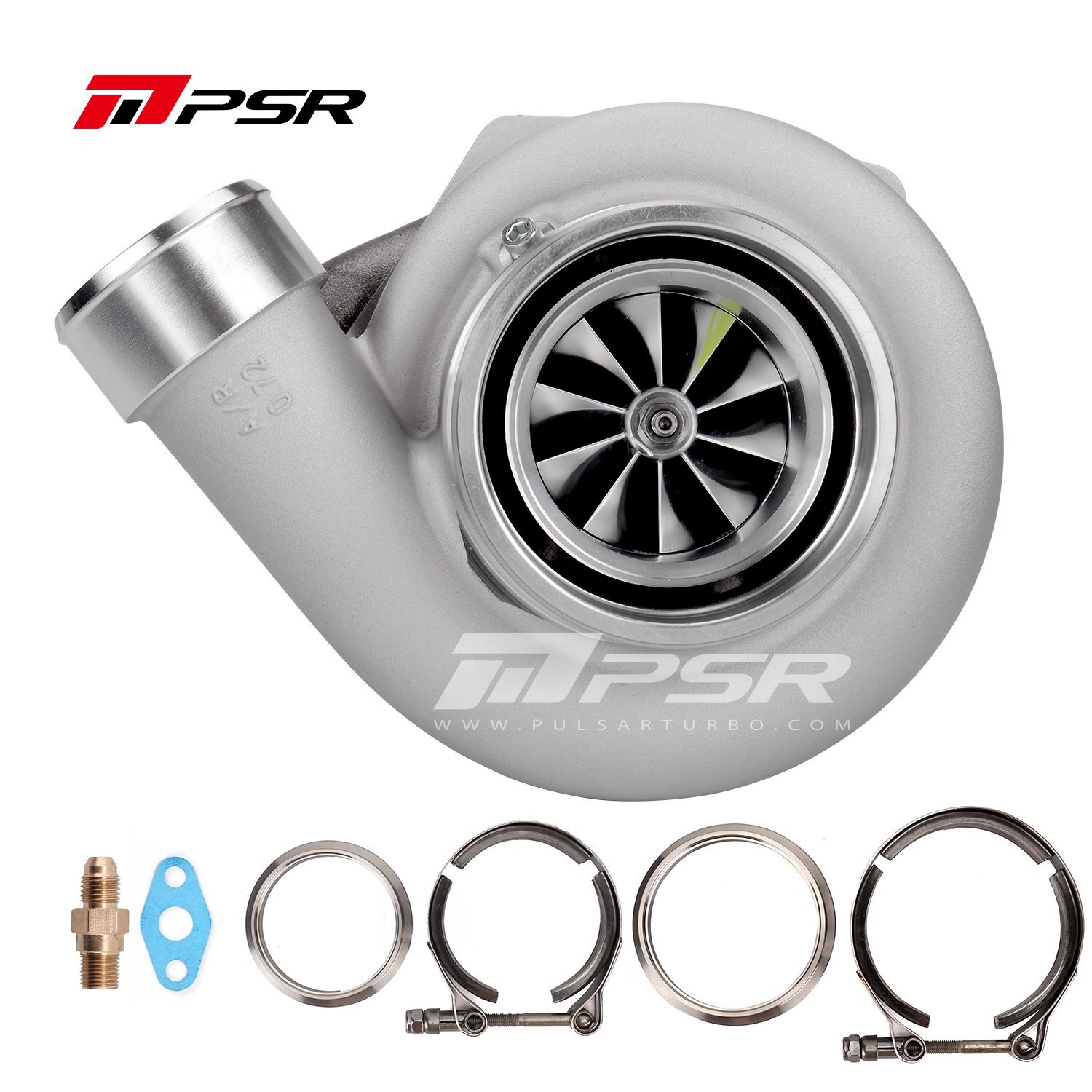

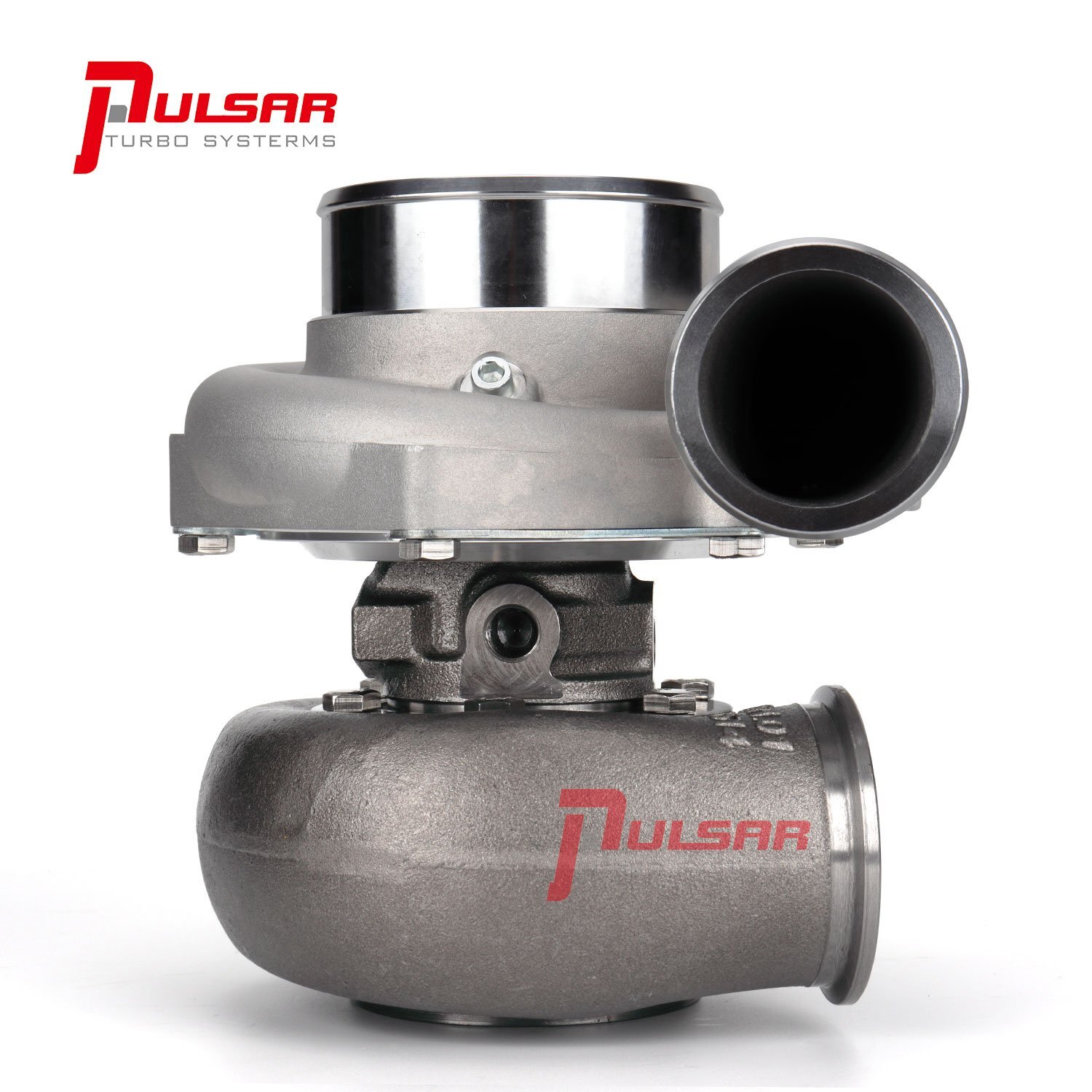

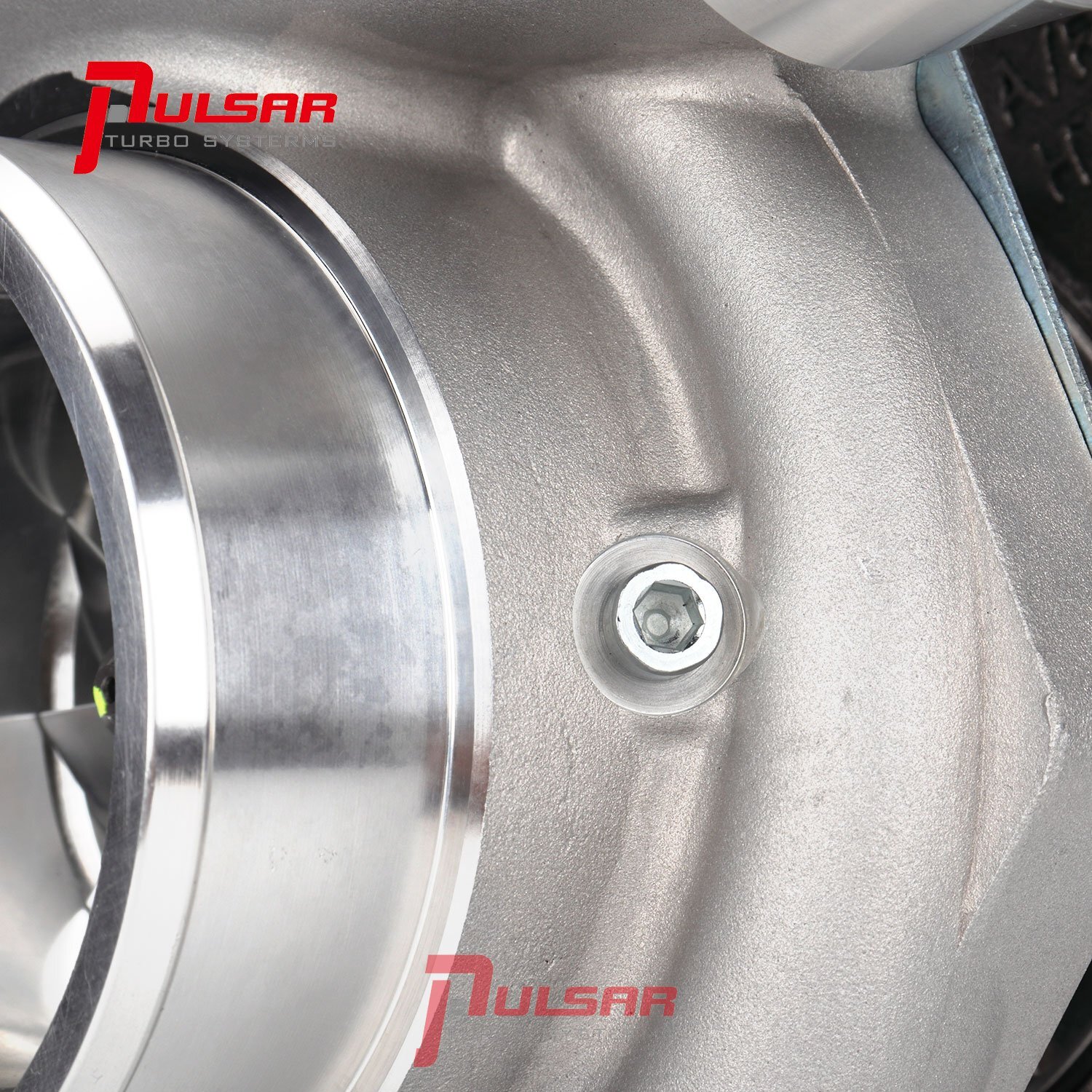

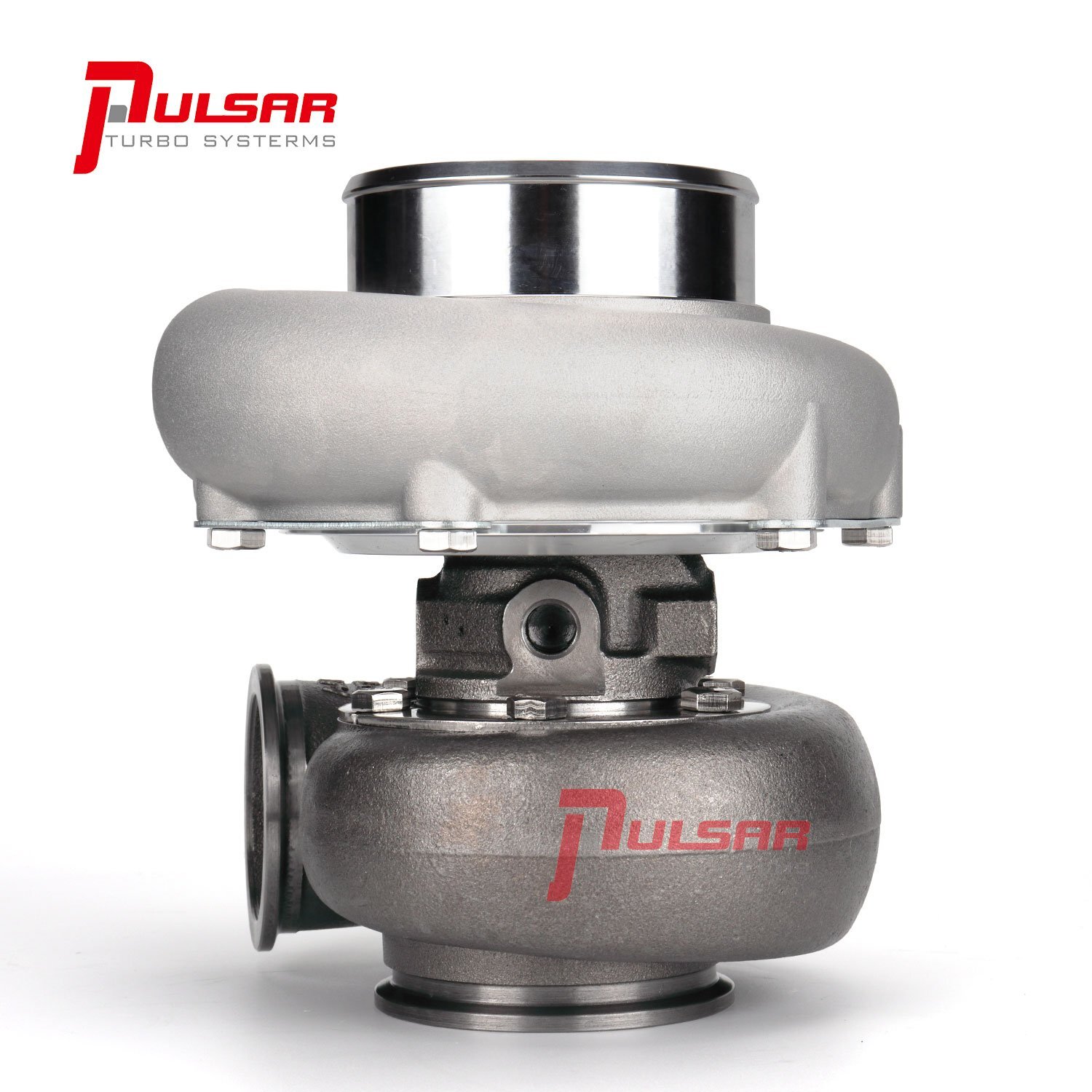

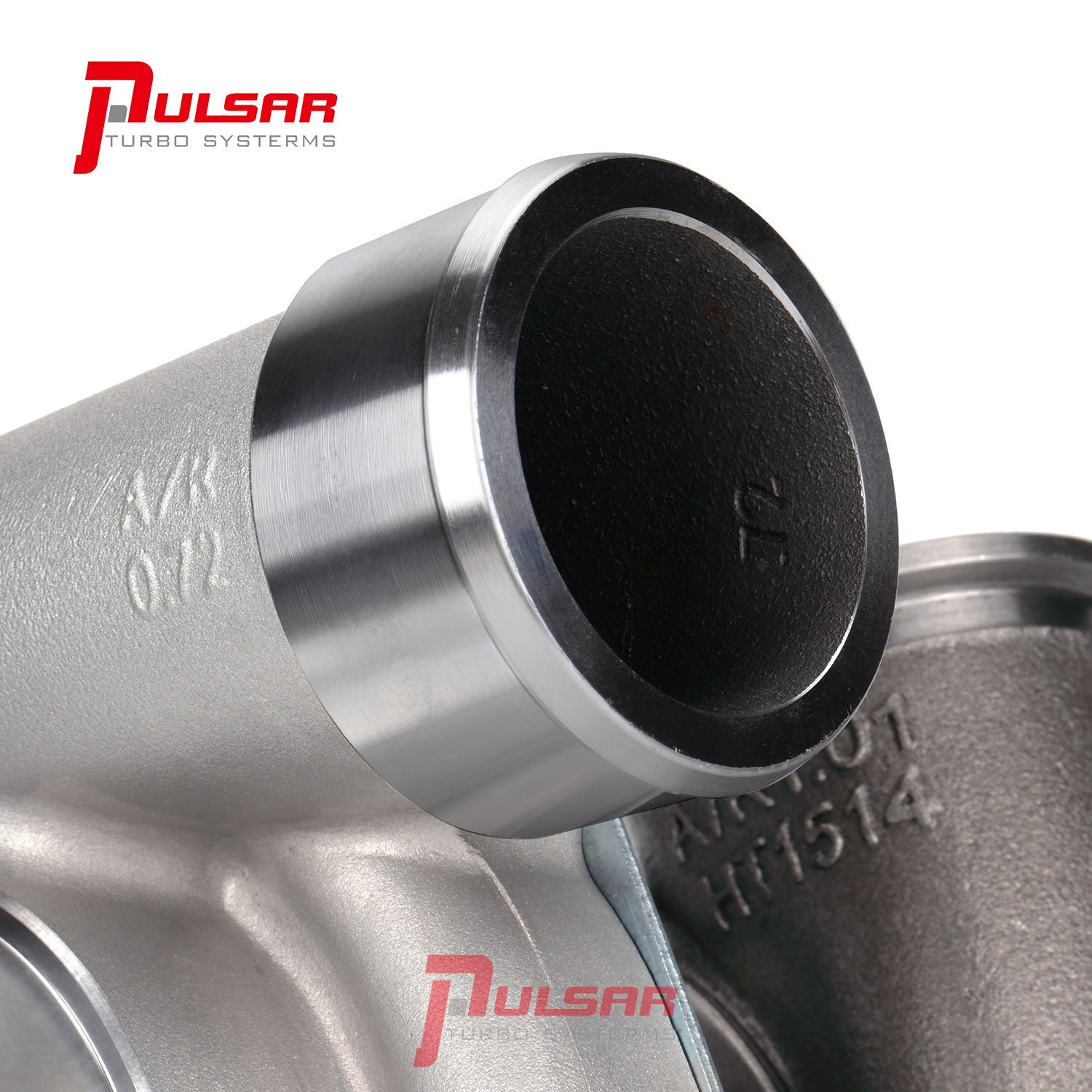

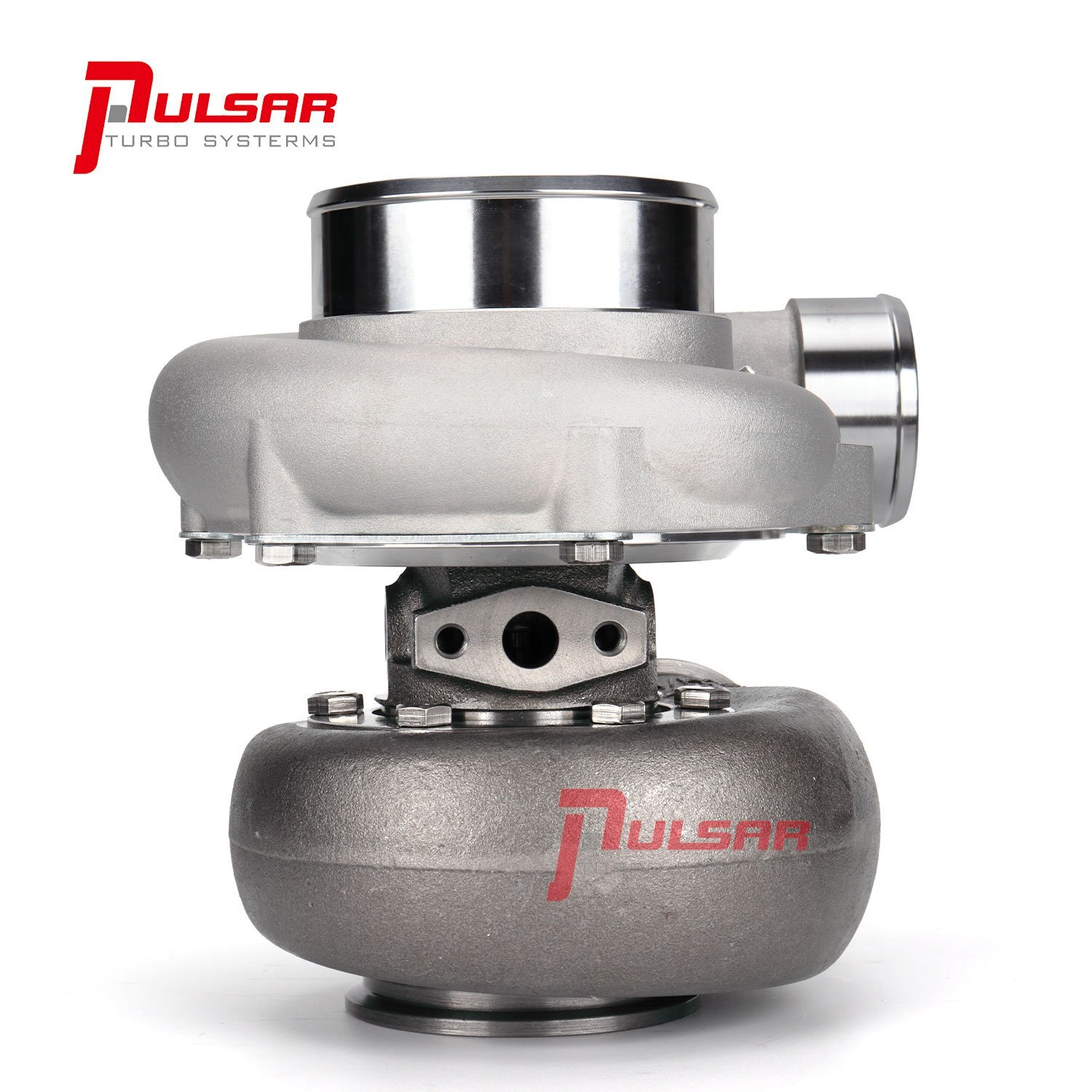

Dual Ceramic Ball Bearing System 10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology Inconel 713c Gen2 9 Blade Turbine Wheel Gen2 Cover Integrated with the Speed Sensor Port 0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet turbine housing In option V-Band Flange kit(s) for the exhaust housing included Max Air Flow rate: ~85 lb/min, rated @ 880 FWHP Compressor Wheel: 66*82mm Turbine Wheel: 68*62mm Compressor Inlet: 4.0 Hose Compressor Outlet: 2.5 Hose Turbine Inlet: T3, T4 or 2? V-Band Turbine Outlet: 3? V-Band Oil Feed: -4 AN connect to the Oil Restrictor Oil Drain: Std T3 Flange Water In/Outlet: M14*1.5 We highly recommended running water cooling for better durability.
