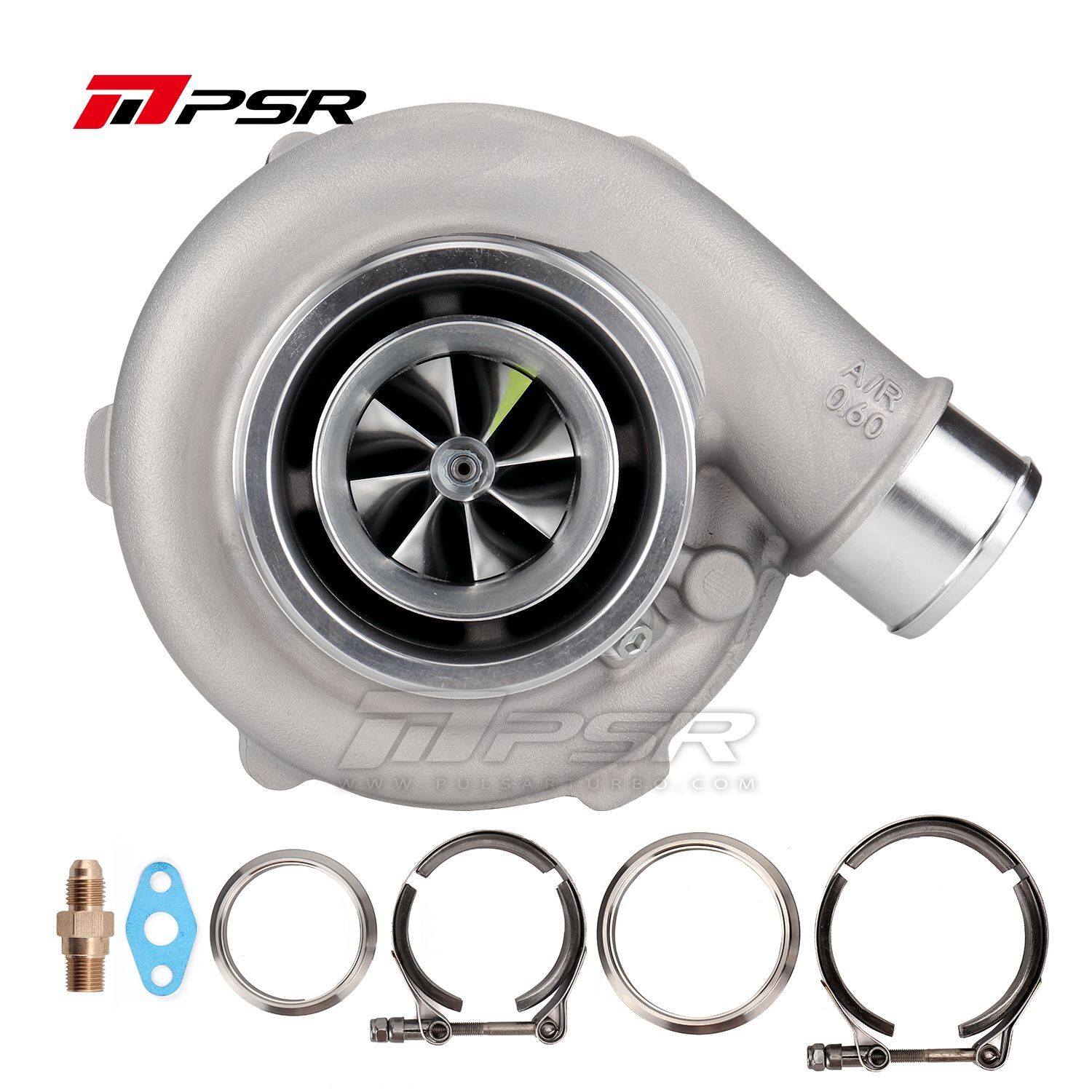

Dual Ceramic Ball Bearing System 8 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology Inconel 713c 10 Blade Turbine Wheel Gen2 Cover Integrated with the Speed Sensor Port 0.83 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet turbine housing In option V-Band Flange kit(s) for the exhaust housing included Max Air Flow rate: ~60 lb/min, rated @ 650 FWHP Compressor Wheel: 54*71mm Turbine Wheel: 60*55mm Compressor Inlet: 4in Hose Compressor Outlet: 2in Hose Turbine Inlet: T3, T4 or 2?? V-Band Turbine Outlet: 3?? V-Band(3.55ā€³OD) Oil Feed: -4 AN connect to the Oil Restrictor Oil Drain: Std T3 Flange Water In/Outlet: M14*1.5 We highly recommended running water cooling for better durability.
