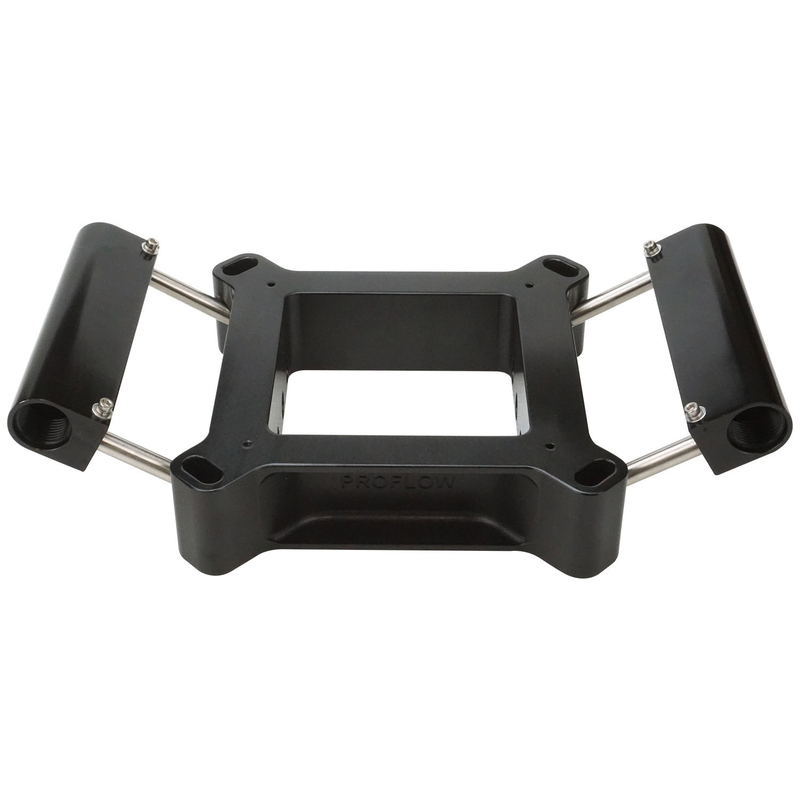

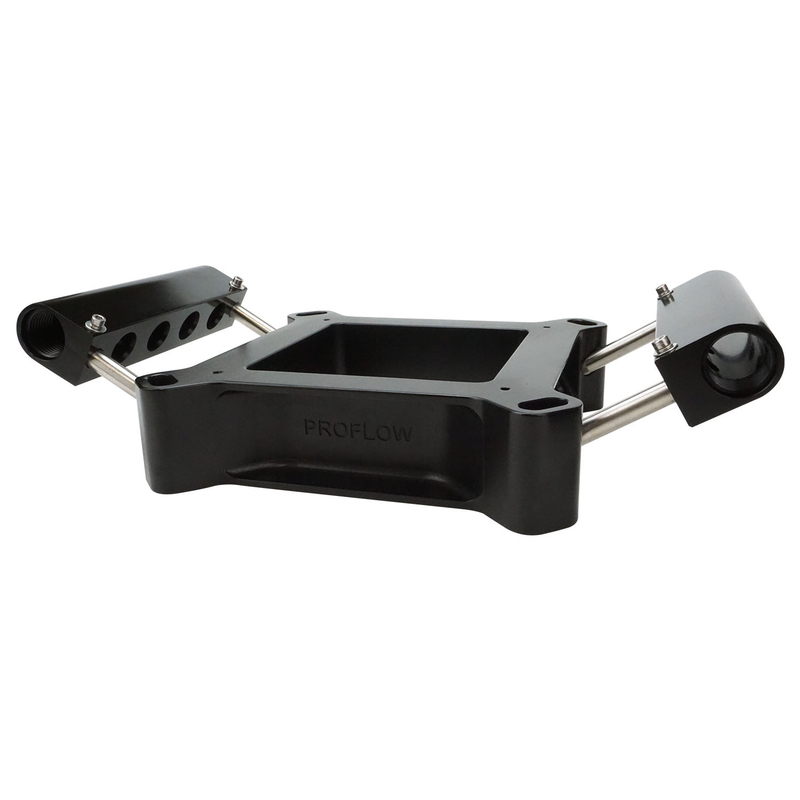

Proflow's series II fuel injection plate kit eliminates the need to replace or modify your non-EFI intake manifold, providing it has a 4150 or 4500 bolt pattern. This plate bolts onto your manifold like a regular carburettor but instead converts it to a fuel injected setup by allowing you to utilize up to eight 14mm O-Ring injectors. Long (60mm), standard (48mm) and short (34mm) injectors will securely mount between the fuel rails and plate as the steel shafts securely hold the rails, utilizing an improved double-shear bolted joint design. The fuel rails have AN8 ORB ports.

Long injectors mount directly to the plate and rails, while standard and short injectors can be used with the provided injector adapters. Suits most bosch style EV6, EV14 or any slim-line fuel injectors. Recommended to be used with a single plane manifold which will provide better fuel vaporisation and distribution between ports.

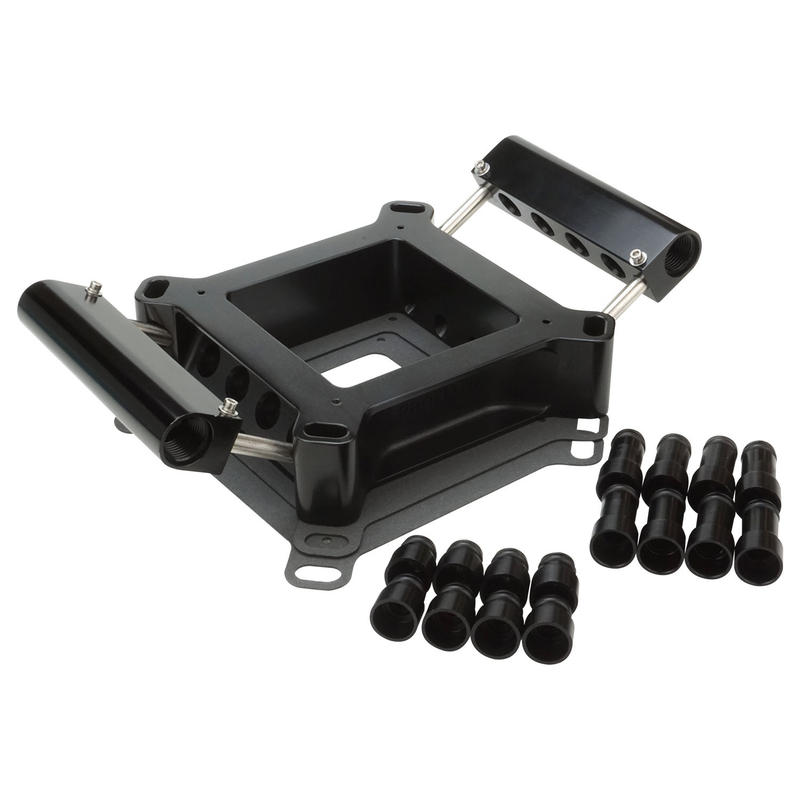

This kit also comes with 2 gaskets, 2 sets of injector adapters and dowel pins which can be used to align a throttle body exactly with the injector plate, such as our quad throttle body (PFEQTB1000). Block-offs are also available to plug any unsused injector ports. Black or silver anodised for long lasting performance.
